930M

Heavy Equipment

930M

Maximum Gross Power
164 HP / 122 kW
Operating Weight
30879 lb / 14007 kg
Bore
4 in / 105 mm

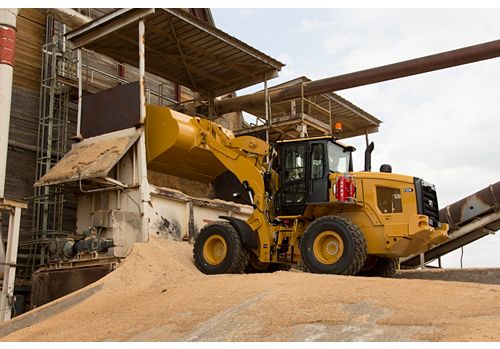

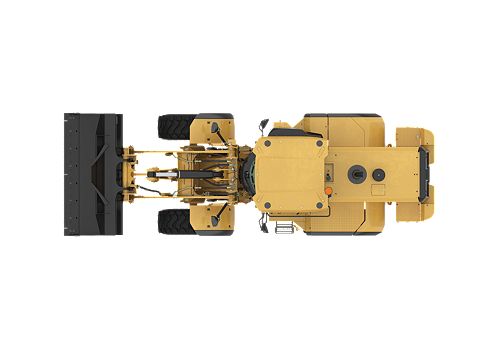

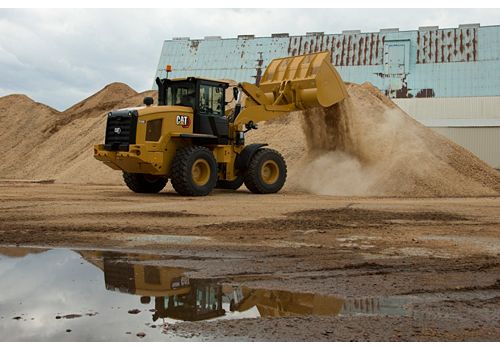

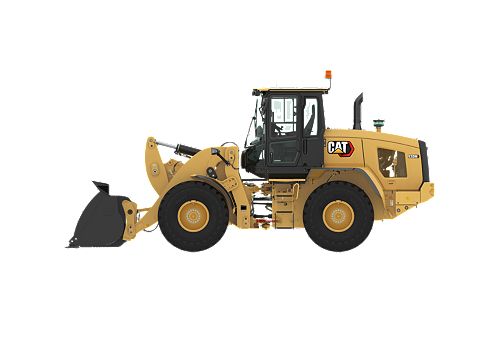

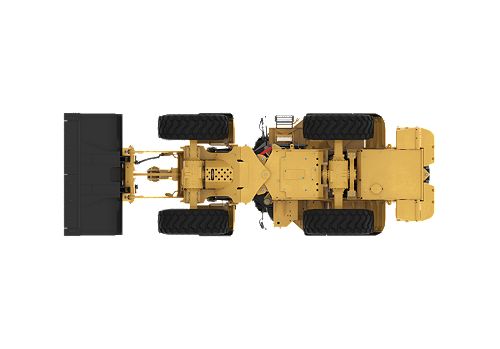

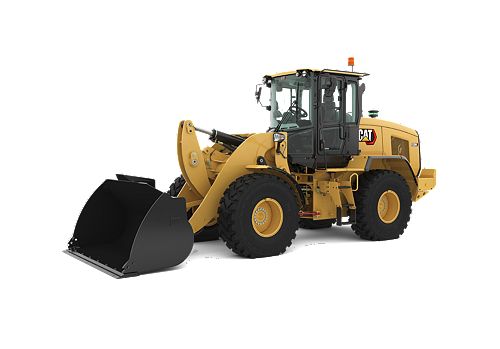

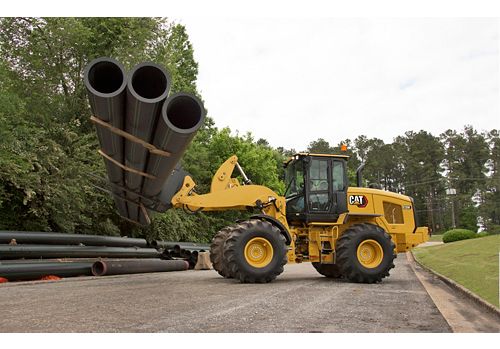

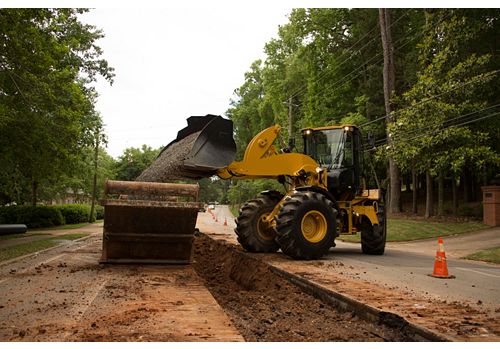

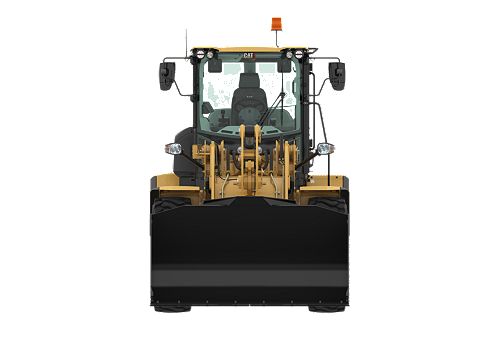

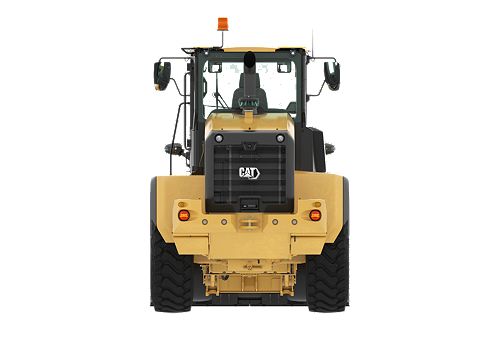

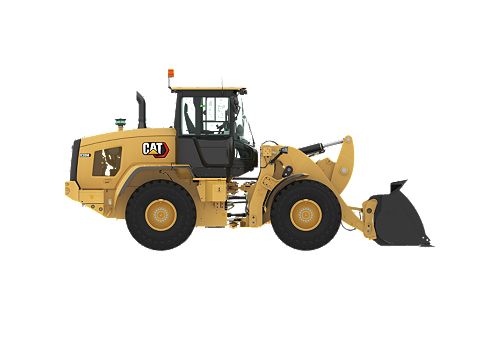

The Cat® 930M Small Wheel Loader sets the standard for productivity, fuel efficiency and operator comfort. The improved optimized Z-bar loader linkage delivers the quick loading performance of a traditional Z-bar with the parallelism and load handling capability of a tool carrier. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards with an environmentally friendly, Clean Emission Module designed to manage itself so you can concentrate on your work. Experience the new industry benchmark.

Loan Calculator Credit Application
Build & Quote
alt 1
926M, 930M, 938M Product Brochure 930M Product Brochure
Engine
Engine Model Cat® C7.1
Maximum Rated Gross Power - ISO 14396 164 HP / 122 kW
Maximum Rated Gross Power - ISO 14396 (DIN) 166 HP / 122 kW
Maximum Rated Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4) 166 HP / 122 kW
Maximum Rated Gross Power - ISO 14396 (Performance Power Mode: Range 1-4) 164 HP / 122 kW
Maximum Rated Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4) 1800 r/min
Rated Net Power 157 HP / 117 kW
Rated Net Power - 1,800 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 160 HP / 119 kW
Rated Net Power - 1,800 rpm - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 157 HP / 117 kW
Maximum Gross Power 164 HP / 122 kW
Bore 4 in / 105 mm
Stroke 5 in / 135 mm
Displacement 427 in³ / 7.01 l
Emissions Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4) 592 lb/ft / 804 N·m
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*) 592 lb/ft / 804 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode: Range 1-4) 572 lb/ft / 776 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*) 572 lb/ft / 776 N·m
Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4) 566 lb/ft / 768 N·m
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*) 566 lb/ft / 768 N·m
Maximum Rated Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*) 162 HP / 119 kW
Maximum Rated Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*) 160 HP / 119 kW
Maximum Rated Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*) 1600 r/min
Note (1) * Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Note (2) Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note (3) No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Note (4) Spark arrestor performance as standard – Meets performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test).
Rated Net Power - 1,600 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 156 HP / 116 kW
Rated Net Power - 1,600 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 158 HP / 116 kW
Rated Net Power - 1,600 rpm - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 154 HP / 115 kW
Rated Net Power - 1,800 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4) 162 HP / 119 kW
Buckets
Bucket Capacities 2.1-5.0 m3 (2.7-6.5 yd3)
Weights
Operating Weight 30879 lb / 14007 kg
Cab
ROPS ISO 3471: 2008
FOPS ISO 3449: 2005 LEVEL II
Note (1) Declared sound levels per ISO 6396:2008* while in Performance Power Mode: – Standard cab: 68 ±3 dB(A) and Deluxe cab
Note (2) * Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential – 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.
Loader Hydraulic System
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Dump (at Maximum Lift Height) 1.5/1.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Float Down (Maximum Lift to Ground Level) 2.7/2.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Raise (Ground Level to Maximum Lift) 5.1/5.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Total Cycle Time 9.3/10.1 seconds
Lift Cylinder, Double Acting - Bore Diameter 4.7 in / 120 mm
Lift Cylinder, Double Acting - Rod Diameter 2.6 in / 65 mm
Lift Cylinder, Double Acting - Stroke 28.7 in / 728 mm
Maximum Flow - Implement Pump 50 gal/min / 190 l/min
Maximum Flow - Implement Pump - 3rd Function* 50 gal/min / 190 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow* 42 gal/min / 160 l/min
Maximum Working Pressure - Implement Pump 3626 psi / 25000 kPa
Note (1) * 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.
Note (2) Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Note (3) Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Relief Pressure - Tilt Cylinder 4061 psi / 28000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure 3626 psi / 25000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure 4061 psi / 28000 kPa
Tilt Cylinder, Double Acting - Bore Diameter 5.9 in / 150 mm
Tilt Cylinder, Double Acting - Rod Diameter 3.5 in / 90 mm
Tilt Cylinder, Double Acting - Stroke 21.9 in / 555 mm
Operating Specifications
Full Turn Tip Load 18670 lb / 8469 kg
Power Train
Brakes - Parking Spring applied hydraulically released
Brakes - Service Inboard wet disc
Front Axle Fixed
Front Axle - Traction Aid - Standard Locking differential
Note (1) Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Note (2) Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M.
Rear Axle Oscillating
Rear Axle - Oscillation Angle by Tire Size - 20.5 R25, 550/65, 600/65, 650/65 ± 10.5 degrees
Rear Axle - Oscillation Angle by Tire Size - Solid Tires, 750/65, 620/65, Skidder ± 7 degrees
Rear Axle - Traction Aid - Optional Limited slip differential
Service Refill Capacities
Cooling System 7.9 gal (US) / 30 l
Diesel Exhaust Fluid (DEF) Tank 5 gal (US) / 19 l
Engine Crankcase 5.3 gal (US) / 20 l
Front Axles 6.9 gal (US) / 26 l
Fuel Tank 51.5 gal (US) / 195 l
Hydraulic System - Including Tank 43.6 gal (US) / 165 l
Hydraulic Tank 23.8 gal (US) / 90 l
Rear Axles 6.6 gal (US) / 25 l
Transmission - Gear Box 2.2 gal (US) / 8.5 l
Steering
Maximum Flow - Steering Pump 34 gal/min / 130 l/min
Maximum Steering Torque - 0° (Straight Machine) 37155 lb/ft / 50375 N·m
Maximum Steering Torque - 40° (Full Turn) 27747 lb/ft / 37620 N·m
Maximum Working Pressure - Steering Pump 3500 psi / 24130 kPa
Note (1) Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Note (2) Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed 2.4 s
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited 2.8 s
Steering Cylinder, Double Acting - Bore Diameter 2.8 in / 70 mm
Steering Cylinder, Double Acting - Rod Diameter 1.6 in / 40 mm
Steering Cylinder, Double Acting - Stroke 17.2 in / 438 mm
Transmission
Forward and Reverse - Range 1* 1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2 8 mile/h / 13 km/h
Forward and Reverse - Range 3 17 mile/h / 27 km/h
Forward and Reverse - Range 4 25 mile/h / 40 km/h
Note * Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Standard Equipment

  • POWER TRAIN
    • Axle seal guards
    • Auto idle shut down feature
    • Cat C7.1 engine
      – Power Modes (Standard and Performance)
      – Power by Range (High Power in Range 4)
      – Turbocharged and aftercooled
      – Diesel particulate filter (Fit for Life)
    • Coolant protection to –34° C (–29° F)
    • Differential lock in front axle
    • Dry type air cleaner
    • Enclosed wet disc full hydraulic brakes
    • Fuel priming pump, automatic
    • Fuel water separator
    • Hydraulically driven demand cooling fan
    • Intelligent hydrostatic transmission
      – Power train modes
      – Directional shift aggressiveness
      – Rimpull control, adjust wheel torque
      – Creeper control, adjust ground speed
    • Lubed for life driveshafts
    • Parking brake, electric
    • Wide spaced 6 fins per inch cooling package
    • S·O·SSM sampling ports
    • Throttle lock and maximum speed limiter
  • HYDRAULICS
    • Automatic lift, lower and tilt kickouts
    • Bucket and Fork Modes, adjustable in-cab
    • Cylinder damping at kickout and end stops
    • Fine Mode control in Fork Mode
    • Hydraulic Response setting
    • Load sensing hydraulics and steering
    • Seat-mounted hydraulic joystick controls
  • ELECTRICAL
    • Alternator, 115-amp, heavy duty
    • 12V power supply in cab (2)
    • Batteries, 1,000 CCA (2) 24 volt system
    • Back-up alarm
    • Emergency shutdown switch
    • Heavy duty gear reduction starter
    • Product Link PRO with subscription
    • Remote jump start post
    • Resettable critical function breakers
  • OPERATOR ENVIRONMENT
    • 75 mm (3 in) retractable seat belt, with audible alarm and indicator
    • Automatic temperature control
    • Cab, enclosed and pressurized
    • Cup holders
    • External heated mirrors with lower parabolic
    • Ground level cab door release
    • Gauges
      – Digital hour, odometer, tachometer, ground speed and direction indicator
      – Engine coolant temperature gauge
      – Fuel and Diesel Exhaust Fluid level
      – Hydraulic oil temperature gauge
    • Hydraulic control lockout
    • Interior cab lighting, door and dome
    • Interior rearview mirrors (2)
    • Lunch box storage
    • Operator warning system indicators
    • Radio ready speakers
    • Rear window defrost, electric
    • Seat-mounted controls, adjustable
    • Sliding glass on the side windows
    • Column mounted multi function control – lights, wipers, turn signal
    • Suspension seat, fabric
    • Tilt and telescopic steering wheel
    • Wet arm wiper/washer, front and rear
  • OTHER STANDARD EQUIPMENT
    • Large-access enclosure doors
    • Parallel lift loader linkage
    • Recovery hitch with pin
    • Remote mounted lubrication points
    • Lockable compartments and enclosures

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Antifreeze/coolant, extended-life
    • Auto lube, integrated in secondary display
    • Auxiliary flow, third and fourth function
    • Axles, differential, limited slip, rear
    • Beacon light, strobe
    • Cab, deluxe (standard in Europe):
      – Automatic blower control
      – Electrically adjustable heated mirrors (2)
      – LED interior lighting
      – Touchscreen secondary display
    • Ride control adjustable speed activation
    • Preventative maintenance reminders
    • Integrated help function (26 languages)
    • Sunscreen, front and rear
    • Camera, rearview (standard in Europe)
    • Cold start package:
      – Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)
    • Counterweight, (heavy and logger)
    • Coupler, (Fusion and ISO 23727)
    • Debris packages (low, medium, high)
    • Fenders (extended cover and full coverage)
    • Guards
      – Power train, (lower, side, driveshaft and crankcase)
      – Windshield and lights
      – Cylinders, tilt and steering
      – Rear radiator, heavy duty
    • Linkage, high lift
    • Lights, auxiliary, halogen or LED with engine compartment lights
    • Payload Technology
      – Cat Production Measurement (CPM)
      – CPM Printer
    • Rear Object Detection
    • Radio packages:
      – Radio ready with Bluetooth
      – Radio, AM/FM with Bluetooth and clock
      – Radio, AM/FM with CD player deluxe, weatherband, Bluetooth and clock
    • Seats:
      – Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
      – Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Heated and cooled bottom cushion and backrest.
    • Steering:
      – Dual mode and Secondary
    • Tires:
      – Bias ply, 17.5, 20.5-25, Skidder
      – Radial, 17.5, 20.5, 23.5, 550/65, 600/65, 650/65 R25
      – Solid tires, 620/65, 750/65 Agriculture
    • Tire Pressure Monitoring (TPM)
    • Toolbox
    • Work tools

Straight Snow Pushes

Unique design efficiently removes snow minimizing passes and reducing salt build up.

Model Working Width Weight Length
3.8 m (12 ft) 144 in / 3658 mm 2786.6 lb / 1264 kg 76.6 in / 1945 mm
3.8 m (12 ft) 144 in / 3658 mm 2932.1 lb / 1330 kg 62 in / 1574 mm
4.4 m (14 ft) 168 in / 4267 mm 3176.9 lb / 1441 kg 62 in / 1574 mm
4.4 m (14 ft) 168 in / 4267 mm 3031.4 lb / 1375 kg 76.6 in / 1945 mm
5.0 m (16 ft) 192 in / 4877 mm 3276.1 lb / 1486 kg 76.6 in / 1945 mm
5.0 m (16 ft) 192 in / 4877 mm 3421.6 lb / 1552 kg 62 in / 1574 mm

Sorting Grapple Forks

Stack, carry and sort piles of lumber.

Model Carriage Width Tine Length Grapple Area
1812 mm (71 in), Fusion™ 71 in / 1812 mm 50 in / 1269 mm 20.7 ft² / 1.92 m²
1812 mm (71 in), ISO 71 in / 1812 mm 50 in / 1256 mm 20.7 ft² / 1.92 m²

Grapple

Grapple buckets, equipped with dual top clamps, grab and hold loose material. They are key producers in transfer stations, landfills and similar applications.

Model Width Bucket Linkage GET
2.5m³ (3.25yd³) 106 in / 2692 mm Pin-on J250
2.7m³ (3.5yd³) 106 in / 2689 mm Pin-on J250

Multi-Purpose Buckets

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Model Width
2.1 m3 (2.7 yd3) Fusion™, Bolt-On Cutting Edge 100 in / 2550 mm
2.1 m3 (2.7 yd3) Pin On, Bolt-On Cutting Edge 100 in / 2550 mm
2.1 m3 (2.7 yd3) 100 in / 2550 mm

Grading Buckets

Long, flat-floor bucket can scoop material, level or backfill.

Model Width Length Height
2700mm (106in), Fusion™ 106 in / 2700 mm 72 in / 1830 mm 43 in / 1092 mm

Pipe & Pole Forks

Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.

Model Carriage Width Weight
2559 mm (101 in) 101 in / 2559 mm 3505 lb / 1590 kg
2559 mm (101 in) 101 in / 2559 mm 4301 lb / 1951 kg
2813mm (110in) Pipe & Pole Fork, Fusion™ Coupler 110 lb/in / 2813 mm 3800 lb / 1724 kg
2813mm (110in) Pipe & Pole Fork, IT Coupler 110 lb/in / 2813 mm 3800 lb / 1724 kg

Construction Forks

For use in heavy duty applications.

Model Carriage Height Carriage Width Carriage Weight
1524 mm (60 in) 54.1 in / 1375 mm 96.1 in / 2440 mm 1206.4 lb / 547.2 kg
1829 mm (72 in) 54.1 in / 1375 mm 98.3 in / 2498 mm 1352.3 lb / 613.4 kg

Sand & Gravel Buckets

Sand and Gravel Buckets are designed for aggregate handling in batch plant loader applications.

Model Width Weight Length
2.5 m3 (3.2 yd3), Fusion™, Bolt-On Cutting Edge 108.1 in / 2747 mm 2533.1 lb / 1149 kg 51.9 in / 1317 mm
2.5 m3 (3.3 yd3), Pin On, Bolt-On Cutting Edge 108.1 in / 2747 mm 2581.6 lb / 1171 kg 54.1 in / 1375 mm
2.7 m3 (3.5 yd3), Fusion™, Bolt-On Cutting Edge 108.1 in / 2747 mm 2638.9 lb / 1197 kg 54.3 in / 1379 mm
2.7 m3 (3.5 yd3), Pin On, Bolt-On Cutting Edge 108.1 in / 2747 mm 2667.6 lb / 1210 kg 56.6 in / 1437 mm
2.9 m3 (3.8 yd3), Fusion™, Bolt-On Cutting Edge 108 in / 2743 mm 2724.9 lb / 1236 kg 56.2 in / 1428 mm
3.2 m3 (4.2 yd3), Fusion™, Bolt-On Cutting Edge 108.1 in / 2747 mm 2788.8 lb / 1265 kg 56.1 in / 1426 mm
3.5 m3 (4.5 yd3), Pin On, Bolt-On Cutting Edge 108.1 in / 2747 mm 2844 lb / 1290 kg 58.5 in / 1486 mm

Angle Brooms

Cat® Angle Brooms are used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model Overall Width Sweeping Width Brush Diameter
BA25 Hydraulic 106.3 in / 2700 mm 98.4 in / 2500 mm 27.6 in / 700 mm

General Purpose Buckets

For use in low-impact, moderately abrasive materials such as dirt, loam, gravel, and clay.

Model Width Height Weight
1.9 m3 (2.5 yd3), Fusion 99.7 in / 2532 mm 48.6 in / 1235 mm 1708.6 lb / 775 kg
1.9 m3 (2.5 yd3), Fusion, Bolt-On Cutting Edge 100.4 in / 2549 mm 49.6 in / 1260 mm 2008.4 lb / 911 kg
1.9 m3 (2.5 yd3), Pin On 99.5 in / 2528 mm 48.8 in / 1240 mm 1787.9 lb / 811 kg
1.9 m3 (2.5 yd3), Pin On, Bolt-On Cutting Edge 100.4 in / 2549 mm 49.6 in / 1260 mm 2072.3 lb / 940 kg
2.1 m3 (2.7 yd3), Fusion 100 in / 2540 mm 50.7 in / 1289 mm 1818.8 lb / 825 kg
2.1 m3 (2.7 yd3), Fusion, Bolt-On Cutting Edge 100.4 in / 2549 mm 51.7 in / 1314 mm 2101 lb / 953 kg
2.1 m3 (2.7 yd3), Pin On 99.5 in / 2528 mm 50.9 in / 1294 mm 1885 lb / 855 kg
2.1 m3 (2.7 yd3), Pin On, Bolt-On Cutting Edge 100.4 in / 2549 mm 51.7 in / 1314 mm 2164.9 lb / 982 kg
2.3 m3 (3.0 yd3), Fusion 100 in / 2540 mm 52.5 in / 1333 mm 1902.6 lb / 863 kg
2.3 m3 (3.0 yd3), Fusion, Bolt-On Cutting Edge 100.4 in / 2549 mm 53.5 in / 1358 mm 2142.9 lb / 972 kg
2.3 m3 (3.0 yd3), Pin On 99.5 in / 2528 mm 52.7 in / 1338 mm 1966.6 lb / 892 kg
2.3 m3 (3.0 yd3), Pin On, Bolt-On Cutting Edge 100.4 in / 2549 mm 53.5 in / 1358 mm 2248.7 lb / 1020 kg
2.5 m3 (3.2 yd3), Fusion 107.4 in / 2727 mm 52.5 in / 1333.3 mm 2123 lb / 963 kg
2.5 m3 (3.2 yd3), Fusion 99.2 in / 2520 mm 54.3 in / 1378 mm 2120.8 lb / 962 kg
2.5 m3 (3.2 yd3), Fusion, Bolt-On Cutting Edge 108.1 in / 2747 mm 53.5 in / 1358 mm 2431.7 lb / 1103 kg
2.5 m3 (3.2 yd3), Fusion™, Bolt-On Cutting Edge 100.4 in / 2549 mm 55.3 in / 1404 mm 2403 lb / 1378 kg
2.5 m3 (3.2 yd3), PO 99.5 in / 2528 mm 54.4 in / 1382 mm 2153.9 lb / 977 kg
2.5 m3 (3.2 yd3), Pin On, Bolt-On Cutting Edge 100.4 in / 2549 mm 55.3 in / 1404 mm 2442.7 lb / 1108 kg
2.7 m3 (3.5 yd3), Fusion 107.4 in / 2727 mm 54.3 in / 1378 mm 2220.1 lb / 1007 kg
2.7 m3 (3.5 yd3), Fusion, Bolt-On Cutting Edge 107.4 in / 2727 mm 55.3 in / 1404 mm 2541.9 lb / 1153 kg
2.7 m3 (3.5 yd3), Fusion™ 100 in / 2540 mm 55.7 in / 1414 mm 2120.8 lb / 962 kg
2.9 m3 (3.8 yd3), Fusion 107.4 in / 2727 mm 55.7 in / 1414 mm 2297.2 lb / 1042 kg
2.9 m3 (3.8 yd3), Fusion, Bolt-On Cutting Edge 108.1 in / 2747 mm 56.7 in / 1439 mm 2601.5 lb / 1180 kg

Light Material Buckets

Used for loading light, loosely-packed materials.

Model Width Height Weight
3.0 m3 (4.0 yd3), Fusion™ 107.4 in / 2727 mm 52.9 in / 1343 mm 2370 lb / 1075 kg
3.0 m3 (4.0 yd3), Fusion™, Bolt-On Cutting Edge 108.1 in / 2747 mm 53.9 in / 1369 mm 2689.6 lb / 1220 kg
3.0 m3 (4.0 yd3), Pin On 107.4 in / 2727 mm² 52.9 in / 1343 mm 2411.9 lb / 1094 kg
3.0 m3 (4.0 yd3), Pin On, Bolt-On Cutting Edge 108.1 in / 2747 mm 53.9 in / 1369 mm 2731.5 lb / 1239 kg
3.5 m3 (4.5 yd3), Fusion™ 107.4 lb/in / 2727 mm 56.1 in / 1424 mm 2255.2 lb / 1159 kg
3.5 m3 (4.5 yd3), Fusion™, Bolt-On Cutting Edge 108.1 in / 2747 mm 57 in / 1449 mm 2872.6 lb / 1303 kg
3.5 m3 (4.5 yd3), Pin On 107.4 in / 2727 mm 56 in / 1423 mm 2599.2 lb / 1179 kg
3.5 m3 (4.5 yd3), Pin On, Bolt-On Cutting Edge 108.1 in / 2747 mm 57 in / 1448 mm 2903.5 lb / 1317 kg
3.8 m3 (5.0 yd3), Fusion™ 107.4 in / 2727 mm 57 in / 1447 mm 2696.3 lb / 1223 kg
3.8 m3 (5.0 yd3), Fusion™, Bolt-On Cutting Edge 108.1 in / 2747 mm 58.2 in / 1478 mm 3015.9 lb / 1368 kg
3.8 m3 (5.0 yd3), Pin On 107.4 in / 2727 mm 57.2 in / 1453 mm 2742.5 lb / 1244 kg
3.8 m3 (5.0 yd3), Pin On, Bolt-On Cutting Edge 108.1 in / 2747 mm 57.9 in / 1471 mm 3062.2 lb / 1389 kg
4.2 m3 (5.5 yd3), Fusion™ 107.4 lb/in / 2727 mm 59.8 in / 1520 mm 2852.8 lb / 1294 kg
4.2 m3 (5.5 yd3), Fusion™, Bolt-On Cutting Edge 108.1 in / 2747 mm 60.6 in / 1538 mm 3172.4 lb / 1439 kg
4.2 m3 (5.5 yd3), Pin On 107.4 in / 2727 mm 59.8 in / 1520 mm 2892.5 lb / 1312 kg
4.2 m3 (5.5 yd3), Pin On, Bolt-On Cutting Edge 108.1 in / 2747 mm 60.6 in / 1538 mm 3174.7 lb / 1440 kg

Material Handling Arms - Loader

Designed for lifting and placing objects and equipment around the jobsite.

Model Maximum Load Rating Retracted Length Extended Length
4137 mm (163 in) Material Handling Arm, Fusion 19000 lb / 8616 kg 109 in / 2760 mm 163 in / 4137 mm

High Dump Buckets

Increased dump height equals better performance in loading applications.

Model Width Weight
3.6m³ (4yd³) 114 in / 2896 mm 3836 lb / 1740 kg
3.0 m3 (3.9 yd3), Fusion™, Bolt-On Cutting Edge 99.5 in / 2528 mm 3763.3 lb / 1707 kg
3.0 m3 (3.9 yd3), Pin On, Bolt-On Cutting Edge 99.5 in / 2528 mm 3833.8 lb / 1739 kg
3.5 m3 (4.6 yd3), Fusion™, Bolt-On Cutting Edge 107.4 in / 2728 mm 3961.7 lb / 1797 kg
3.5 m3 (4.6 yd3), Pin On, Bolt-On Cutting Edge 106.9 in / 2716 mm 4027.8 lb / 1827 kg
4.1 m3 (5.4 yd3), Pin On, Bolt-On Cutting Edge 119.4 in / 3032 mm 4759.8 lb / 2159 kg
4.6m³ (6yd³) 115 in / 2921 mm 5943 lb / 2696 kg
5.0 m3 (6.5 yd3), Pin On, Bolt-On Cutting Edge 119.4 in / 3032 mm 4978 lb / 2528 kg
Contact Us
x

We're here to help.

We'll do our best to get back to you as soon as possible.
