735C

Heavy Equipment

735C

Rated Payload
36 t / 32.7 t
Heaped (SAE 2:1)
26.8 yd³ / 20.5 m³
Bore
5.4 in / 137 mm

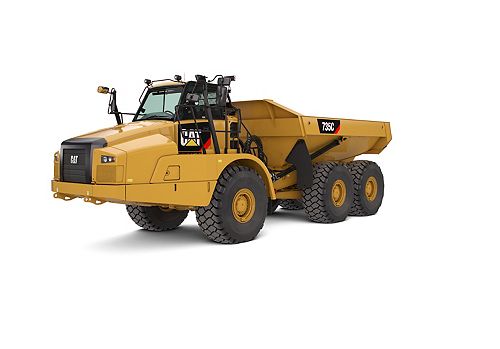

The Cat 735C with a 22 m3 (28.7 yd3) 32.7 tonnes (36 tons) capacity offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. With many updated and improved features, an all new power train and new ease of operation features including Automatic Retarder Control, the 735C is now more productive than ever before.

Engine
Engine Model Cat C15 ACERT
Bore 5.4 in / 137 mm
Stroke 6.75 in / 171.5 mm
Displacement 926 in³ / 15.2 l
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final Cat® C15 ACERT™
Gross Power - SAE J1995 452 HP / 337 kW
Net Power - ISO 14396 447 HP / 333 kW
Net Power - SAE J1349 441 HP / 329 kW
No Engine De-rating Required Below 10000 ft / 3050 m
Peak Engine Torque Gross (SAE J1995) 1931 ft·lbf / 2618 N·m
Peak Engine Torque Net (SAE J1349) 1887 ft·lbf / 2558 N·m
Peak Engine Torque Speed 1200 r/min
Weights
Rated Payload 36 t / 32.7 t
Body Capacities
Heaped (SAE 2:1) 26.8 yd³ / 20.5 m³
Struck 19.6 yd³ / 15 m³
Tailgate Heaped SAE 2:1 28.7 yd³ / 22 m³
Tailgate Struck 20.3 yd³ / 15.5 m³
Transmission
Forward - 1 3.7 mile/h / 6 km/h
Forward - 2 4.9 mile/h / 7.9 km/h
Forward - 3 6.8 mile/h / 11 km/h
Forward - 4 8.6 mile/h / 13.9 km/h
Forward - 5 11.4 mile/h / 18.4 km/h
Forward - 6 14 mile/h / 22.5 km/h
Forward - 7 19.3 mile/h / 31 km/h
Reverse - 1 3.9 mile/h / 6.3 km/h
Reverse - 2 8.9 mile/h / 14.4 km/h
Forward - 8 23.1 mile/h / 37.3 km/h
Forward - 9 33.5 mile/h / 53.9 km/h
Sound Levels
Interior Cab 79 dB(A)
Operating Weights
Center Axle - Empty 13977 lb / 6340 kg
Center Axle - Loaded 47091 lb / 21360 kg
Center Axle - Rated Load 33113 lb / 15020 kg
Front Axle - Empty 41844 lb / 18980 kg
Front Axle - Loaded 47708 lb / 21640 kg
Front Axle - Rated Load 5864 lb / 2660 kg
Rear Axle - Empty 13404 lb / 6080 kg
Rear Axle - Loaded 46517 lb / 21100 kg
Rear Axle - Rated Load 33113 lb / 15020 kg
Total - Empty 69225 lb / 31400 kg
Total - Loaded 141316 lb / 64100 kg
Total - Rated Load 72091 lb / 32700 kg
Body Plate
Type High strength Brinell HB450 wear resistant steel
Service Refill Capacities
Fuel Tank 126.8 gal (US) / 480 l
Cooling System 23.7 gal (US) / 90 l
Engine Crankcase 10.6 gal (US) / 40 l
Axles - Each 15.8 gal (US) / 60 l
DEF Tank 6.6 gal (US) / 25 l
Final Drive - Each 1.3 gal (US) / 5 l
Transmission - OTG 19.8 gal (US) / 75 l
Steering/Hoist Hydraulic System 36.9 gal (US) / 140 l
Brake Cooling Tank 17.69 gal (US) / 67 l
Body Hoist
Raise Time 12 s
Lower Time 7 s
Steering
Lock to Lock 4.6 seconds @ 60 rpm
Standards
Brakes ISO 3450-2011
Cab - FOPS ISO 3449 Level II-2005
Cab - ROPS ISO 3471-2008
Steering ISO 5010-2007
Turning Circle
Note Dimensions are for machines equipped with 26.5R25 tires.
Turning Dimensions - Aisle Width 221 in / 5607 mm
Turning Dimensions - Clearance Radius 331 in / 8420 mm
Turning Dimensions - Inside Radius 157 in / 3978 mm
Turning Dimensions - SAE Turning Radius 314 in / 7968 mm
Turning Dimensions - Steer Angle - Left/Right 45°

Standard Equipment

  • ROPS/FOPS cab, machine operation monitoring system includes:
    • Action lamp, engine oil pressure, primary steering system, left turn signal, high beam, coolant temperature, tachometer, parking brake, fuel level, right turn signal, transmission oil temperature, brake system, transmission hold, hoist control, hydraulic system, charging system, retarder, transmission fault, traction control system, check engine lamp
    • Diesel Exhaust Fluid (DEF) level, emission malfunction lamp, regeneration active, Diesel Particulate Filter (DPF), regeneration disabled
  • Liquid Crystal Display (LCD):
    • Alert indicator, selected gear and direction, speed or auto shift, review Operation and Maintenance Manual (OMM), primary steering failure, seat belt warning, secondary steering failure, DPF regeneration filter, Machine Security System (MSS), secondary steering energy source engaged, hour meter and retarder active
