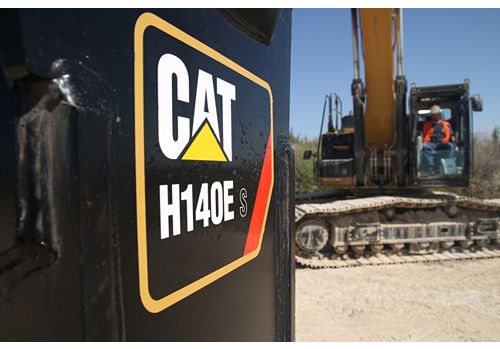

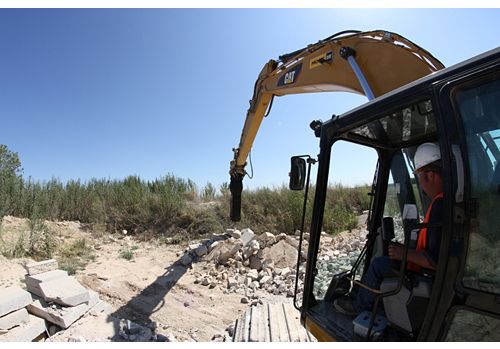

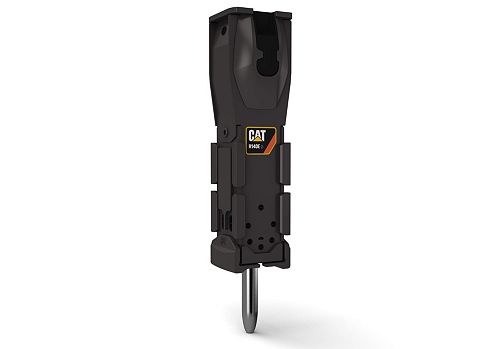

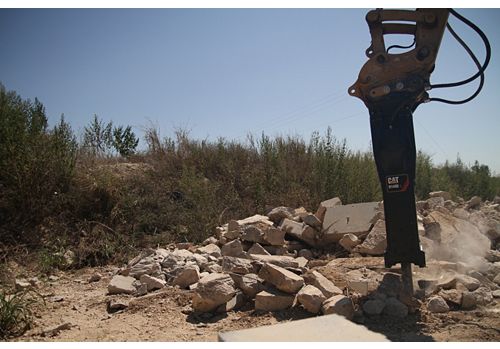

The H140E S wear package hammer is a valuable asset in utility work, quarries and bridge demolition, as well as other large-scale demolition projects. The factory installed wear package protects your breaker and your investment.
| Product Specifications | |
|---|---|
| Impact Energy Class | 6000 ft·lbf / 8135 J |
| Blows per Minute | 325-540 |
| Maximum Operating Pressure | 2321 psi / 16000 kPa |
| Minimum Operating Pressure | 2176 psi / 15000 kPa |
| Minimum Carrier Weight | 52900 lb / 23995 kg |
| Maximum Carrier Weight | 92600 lb / 42003 kg |
| Maximum Rated Flow | 60 gal/min / 230 l/min |
| Minimum Rated Flow | 42 gal/min / 160 l/min |
| Maximum Operating Weight | 5865 lb / 2660 kg |
| Minimum Operating Weight | 5314 lb / 2410 kg |
| Tool Shaft Diameter | 5.49 in / 139.5 mm |
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 323 - Tier 4 / Stage V | 172 HP / 128.5 kW | 55100 lb / 25000 kg | 22.1 ft / 6730 mm |
| 326 - Tier 4 / Stage V | 201 HP / 149.8 kW | 56400 lb / 25600 kg | 22.4 ft / 6820 mm |
| 330 GC - Tier 4 / Stage V | 201 HP / 150 kW | 68100 lb / 30900 kg | 23.8 ft / 7260 mm |
| 330 - Tier 4 / Stage V | 273 HP / 203.7 kW | 69200 lb / 31400 kg | 23.9 ft / 7240 mm |
| 335 - Tier 4 / Stage V | 273 HP / 203.7 kW | 77000 lb / 34900 kg | 22.9 ft / 6990 mm |
