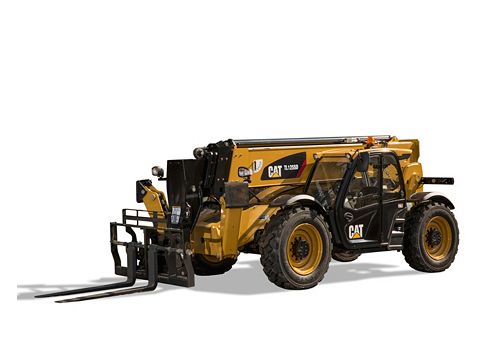

TL1255D

Rated Load Capacity: 12000 lb / 5443 kg
Maximum Lift Height: 54.6 ft / 16600 mm
Operating Weight: 34361 lb / 15586 kg

The TL1255D is precision engineered to handle any task, offering stability, maneuverability, speed and power in any application.

Loan Calculator Credit Application

Build & Quote

TL1255D Product Brochure Telehandler TL D Series Product Brochure

Specifications
Related Products

Engine
Engine Model	Cat® C4.4 ACERT™*
Gross Power - Basic	142.1 hp / 106 kW
Note	*Meets U.S. EPA Tier 4 Final emission standards.

Weights
Operating Weight	34361 lb / 15586 kg

Operating Specifications
Rated Load Capacity	12000 lb / 5443 kg
Maximum Lift Height	54.6 ft / 16600 mm
Maximum Forward Reach	42 ft / 12.8 m
Top Travel Speed	20.5 mile/h / 33 km/h
Capacity at Maximum Reach (o/r Down)	3500 lb / 1587 kg
Turning Radius - Over Tires	14 ft / 4.3 m
Maximum Lift Height (o/r Down)	54.6 ft / 16.6 m
Frame Leveling	10°
Capacity at Maximum Height (o/r Down)	5000 lb / 2268 kg
Drawbar Pull - Loaded	25605 lb / 113.9 kN

Tires
Standard	400/75-28 Duraforce
Optional	400/75-28 Foam Filled; 14.00-24 Solid; 17.5 × 25 16PR; 17.5 × 25 12PR Foam Filled

Hydraulic System
Pump Type	Variable displacement load sensing axial piston pump
Note	Auxiliary Hydraulic Circuit used for all attachments equipped with cylinders or other hydraulic components.
Auxiliary Hydraulic Flow	25 gal/min / 95 l/min
System Operating Pressure	3771 psi / 260 bar
Auxiliary Hydraulic Pressure	3307 psi / 228 bar

Service Refill Capacities
Fuel Tank	38 gal (US) / 145 B
Diesel Exhaust Fluid (DEF) Tank	5.7 gal (US) / 21.5 B
Hydraulic System	50 gal (US) / 189 B

Boom Performance
Boom Up	16.7 s
Boom Down	14.4 s
Tele In	16.3 s
Tele Out	18.5 s

Braking System
Service Brakes	Inboard wet disc brakes on front and rear axles
Parking Brakes	Wet disc, spring applied hydraulic release on front axle

Axles
Types (1)	Trunnion mounted planetary 55 degree steer axles.
Types (2)	High bias limited slip differential on front axle.

Transmission Speeds
Forward	4 speed
Reverse	3 speed

Work Tools
Carriages - Wide Tilt	72 in / 1829 mm
Carriages - Side Shift	48 in / 1220 mm
Carriages - Dual Positioning	50 in / 1270 mm
Carriages - Standard Rotate	50 in / 1270 mm
Note	*For use with 1829 mm (72 in) Lumber Forks.
Carriages - Swing (2)	180°, 1824 mm, 5443 kg (180°, 72 in, 12,000 lb)
Hydraulic IT Coupler	Includes Auxiliary Electrics
Carriages - Wide Rotate	72 in / 1829 mm
Carriages - Standard Tilt	50 in / 1270 mm
Fork Extensions*	90 in / 2300 mm
Cubing Forks	[2] 1220 mm, 50 mm × 50 mm ([2] 48 in, 2 in × 2 in)
Pallet Forks - Option 2	[2] 1220 mm, 60 mm × 125 mm ([2] 48 in, 2.36 in × 5 in)
Pallet Forks - Option 1	[2] 1525 mm, 60 mm × 150 mm ([2] 60 in, 2.36 in × 6 in)
Carriages - Swing (1)	100°, 1829 mm, 4536 kg Capacity, 2268 kg Swung (100°, 72 in, 10,000 lb Capacity, 5,000 lb Swung)
Lumber Forks	[2] 1829 mm, 50 mm × 150 mm ([2] 72 in, 2 in × 6 in)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
Cat Inspect
Cat Product Link

General Purpose Buckets

Clean up sites, load, carry and dump in a variety of applications.

Model	Rated Bucket Capacity	Width	Bucket Weight
1 m3 (1.3 yd3)	1.3 yd³ / 1 m³	95 in / 2418 mm	1007 lb / 457 kg

Material Handling Buckets

Provides a larger capacity for easy handling of loose material.

Model	Rated Bucket Capacity	Width	Bucket Weight
1.5 m3 (1.95 yd3)	1.95 yd³ / 1.5 m³	95 in / 2418 mm	1058 lb / 480 kg

Multi-Purpose Buckets

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Model	Rated Bucket Capacity	Width	Bucket Weight
1 m3 (1.3 yd3)	1.3 yd³ / 1 m³	95 in / 2418 mm	1687 lb / 765 kg

Block Forks

Moves brick and blocks around the job site.

Model	Fork Tine Length	Tine Width	Tine Thickness
1220 mm (48 in)	48 in / 1219 mm	2 in / 50 mm	2 in / 50 mm
