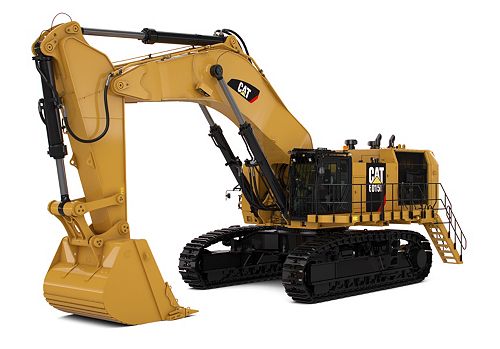

6015B

General
Engine Output - SAE J1995	813 hp / 606 kW
Bucket Payload	16.1 ton (US) / 14.6 t
Operating Weight	154.3 ton (US) / 140 t
Note	Specifications shown above apply to Backhoe configuration. A Frontless configuration is also available.

Engine - U.S. EPA Tier 4 Final
Engine Model	Cat® C27
Gross Power - SAE J1995	813 hp / 606 kW
Net Power - SAE J1349	746 hp / 556 kW

Engine - Cat C27 with Tier 4 Final Emission Standards
Number of Cylinders	12
Bore	5.4 in / 137.2 mm
Stroke	6 in / 152.4 mm
Displacement	1648 in³ / 27 l
Maximum Altitude - Without Deration - Above Sea Level	10000 ft / 3048 m
Net Power - SAE J1349	556 kW (746 hp 1,800 min-1)
Gross Power - SAE J1995	606 kW (813 hp 1,800 min-1)

Engine - Equivalent to U.S. EPA Tier 2
Engine Model	Cat® C27
Gross Power - SAE J1995	813 hp / 606 kW
Net Power - SAE J1349	746 hp / 556 kW

Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards
Number of Cylinders	12
Bore	5.4 in / 137.2 mm
Stroke	6 in / 152.4 mm
Displacement	1648 in³ / 27 l
Aspiration	Turbocharged and aftercooled
Maximum Altitude - Without Deration - Above Sea Level	14500 ft / 4420 m
Net Power - SAE J1349	556 kW (746 hp 1,800 min-1)
Gross Power - SAE J1995	606 kW (813 hp 1,800 min-1)

Engine
Emissions	U.S. EPA Tier 4 Final, Tier 2 Equivalent or Tier 1 Equivalent
Gross Power - SAE J1995:2014	813 hp / 606 kW
Net Power - SAE J1349:2011	746 hp / 556 kW
Engine Model	Cat® C27

Operating Weights - Backhoe
Operating Weight	154 ton (US) / 140 t

Weights
Ground Pressure	23.6 psi / 16.3 N/cm²
Note	Operating weight includes: 700 mm (28 in) track shoes, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick
Operating Weight	308650 lb / 140000 kg

Track
Standard	28 in / 700 mm
Wide	36 in / 900 mm
Extra Wide	39 in / 1000 mm
Number of Shoes - Each Side	46
Number of Track Rollers - Each Side	9
Number of Carrier Rollers - Each Side	3
Track Pads	Double grouser

Drive
Travel Speed - Two Stages - 1st Stage - Maximum	1.4 mile/h / 2.3 km/h
Travel Speed - Two Stages - 2nd Stage - Maximum	2.1 mile/h / 3.3 km/h
Maximum Drawbar Pull - Forward	192886 lbf / 858 kN
Maximum Drawbar Pull - Reverse	220987 lbf / 983 kN
Gradeability - Travel Drives	Approximately 42%
Hydraulic Track Tensioning	With accumulator

Service Refill Capacities
Fuel Tank	449 gal (US) / 1700 l
Cooling System	44 gal (US) / 165 l
Engine Oil	23 gal (US) / 87 l
Swing Drive	2.4 gal (US) / 9 l
Hydraulic System - Including Tank	463 gal (US) / 1752 l
Hydraulic Tank	253 gal (US) / 956 l
Grease Tank	18 gal (US) / 68 l

Electrical System
System Voltage	24V
Batteries	4 × 200Ah (12V each)
Alternator Rating	150A (24V)
Components (1)	Emergency stop in cabin, engine module, pump room and on service station accessible from ground level
Components (2)	All around lighting
Components (4)	Five (5) lights for front
Components (9)	One (1) beacon light on cabin roof
Components (8)	One (1) light for machine deck/service
Components (6)	One (1) light for right side
Components (3)	Four (4) lights on attachment
Components (5)	Two (2) lights for left side
Components (7)	Two (2) lights for rear end

Hydraulic System
Main Pumps - Maximum Pressure - Travel	4641 psi / 320 bar
Main Pumps - Maximum Pressure - Attachment	4641 psi / 320 bar
Main Pumps - Maximum Total Oil Flow	407 gal/min / 1544 l/min
Main Pumps	3 × variable swash plate pumps
Swing Pump - Maximum Flow - Swing	127 gal/min / 479 l/min
Swing Pump	1 × variable swash plate pump
Swing Pump - Maximum Pressure - Swing	5294 psi / 365 bar
Pilot Pump - Maximum Pressure, Pilot	1378 psi / 95 bar
Pilot Pump	1 × gear pump
Pilot Pump - Maximum Flow, Pilot	40.4 gal/min / 153 l/min
Engine Fan Pump - Maximum Pressure, Engine Fan	3191 psi / 220 bar
Engine Fan Pump	1 × variable swash plate pump
Engine Fan Pump - Maximum Flow, Engine Fan	53.1 gal/min / 201 l/min
Hydraulic Fan Pump - Maximum Flow, Hydraulic Fan	22.7 gal/min / 86 l/min
Hydraulic Fan Pump	1 × variable swash plate pump
Hydraulic Fan Pump - Maximum Pressure, Hydraulic Fan	1958 psi / 135 bar
Hydraulic Oil Cooling - Diameter of Fan	40 in / 1016 mm
Hydraulic Oil Cooling - Maximum Flow	284 gal/min / 1075 l/min
Filters (1)	Full-flow high-pressure filters (200 µm) for main pumps
Filters (2)	Full-flow filters (20 µm) for complete return circuit
Filters (3)	Pressure filters (16 µm) for servo circuit
Filters (5)	Swing charge filter (15 µm)
Filters (6)	Pump case return screens (125 µm)
Filters (4)	Full-flow filters (6 µm) for engine cooling return circuit

Swing System
Swing Drive	Two (2) compact planetary transmissions with axial piston motors
Parking Brake	Wet multiple disc brake, spring-loaded/hydraulically released
Maximum Swing Speed	4.9 r/min
Swing Ring	Cross roller bearing with sealed internal gearing
Features (1)	Closed-loop swing circuit with speed control
Features (2)	Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking
Features (3)	All raceways and the internal gearing of swing ring supplied by automatic central lubrication system

Centralized Service Area
Feature	Accessible from ground level
Equipped With (1)	Emergency stop
Equipped With (2)	Quick couplings for: – Diesel fuel – Grease

Undercarriage
Travel Speed - Two Stages - 1st Stage - Maximum	1.3 mile/h / 2.3 km/h
Travel Speed - Two Stages - 2nd Stage - Maximum	2.1 mile/h / 3.3 km/h
Maximum Drawbar Pull - Forward	192886 lbf / 858 kN
Maximum Drawbar Pull - Reverse	220987 lbf / 983 kN
Gradeability - Travel Drives	Approximately 42%
Hydraulic Track Tensioning	With accumulator
Number of Shoes - Each Side	46
Number of Track Rollers - Each Side	9
Number of Carrier Rollers - Each Side	3
Components (2)	Chain links connected by hardened pins and bushings
Components (5)	Fully hydraulic self-adjusting track tensioning system with accumulator
Components (7)	Audible travel alarm
Components (3)	Cat D11 Track-Type Tractor links
Components (6)	Automatic hydraulic retarder valve to prevent overspeed on downhill travel
Components (1)	Forged double-grouser track pads
Components (4)	All running surfaces of sprockets, idlers, rollers and track chain links hardened

Operator's Cab
Components (7)	Beverage holder
Components (4)	Glass-breaking safety hammer
Components (19)	Laminated glass front upper window and tempered other windows
Components (14)	Adjustable armrest
Components (9)	AM/FM radio
Components (17)	Travel control pedals with removable hand levers
Components (15)	Height-adjustable joystick consoles
Components (10)	Radio with MP3 auxiliary audio port
Components (16)	Neutral lever (lock out) for all controls
Components (1)	Pressurized operator station with positive filtration
Components (2)	Mirror package
Components (11)	Two stereo speakers
Components (12)	Storage shelf suitable for lunch or toolbox
Components (8)	Literature holder
Components (18)	Two power outlets, 10 amp (total)
Components (6)	Coat hook
Components (5)	Removable lower windshield with in cab storage bracket
Components (13)	Color LCD display with warning, filter/fluid change, and working hour information
Components (3)	Sliding upper door window (left-hand cab door)

Automatic Lubrication System
Capacity - Grease Barrel	18 gal (US) / 68 l
Type (2)	Grease is automatically applied to all attachment pivot points (except bucket linkage) and slew bearing
Type (3)	Standard grease reel on machine for bucket linkage
Type (1)	Central bank lubrication system
Type (4)	Grease refill service point accessible from ground

Attachments
Type (1)	Boom and stick torsion-resistant with welded box design
Type (2)	High-tensile steel with solid steel castings at pivot areas
Type (3)	Boom and stick stress-relieved after welding
Type (4)	Float valve for boom down function
Buckets Equipped With	– Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds

Backhoe Attachment (BH) - Working Range
Maximum Digging Depth	25.9 ft / 7.9 m
Maximum Digging Reach	45.6 ft / 13.9 m
Maximum Digging Height	43.3 ft / 13.2 m
Maximum Dump Height	28.5 ft / 8.7 m

Backhoe Attachment (BH) - Digging Forces
Bucket Digging Force - SAE	112600 lbf / 501 kN
Stick Digging Force - SAE	98800 lbf / 439 kN
Bucket Digging Force - ISO	131700 lbf / 586 kN
Stick Digging Force - ISO	103000 lbf / 458 kN

Backhoe Attachment (BH) - Backhoe
Tooth System	Cat C70 penetration tip with CapSure lock
Capacity 1:1	10.6 yd³ / 8.1 m³
Total Width	8.8 ft / 2682 mm
Number of Teeth	5
Weight - Including Standard Wear Package	16596 lb / 7528 kg
Maximum Material Density - Loose	3034 lb/yd³ / 1.8 t/m³

Operating Specifications
Bucket Payload	16 ton (US) / 14.6 t
Operating Weight	154 ton (US) / 140 t

Bucket
Standard Bucket Capacity - Backhoe (Heaped 1:1)	10.6 yd³ / 8.1 m³
