2133 mm (84 in)

Heavy Equipment

2133 mm (84 in)

Overall Width
55.2 in / 1401 mm
Overall Height
34.4 in / 873 mm
Maximum Opening Width
84 in / 2133 mm

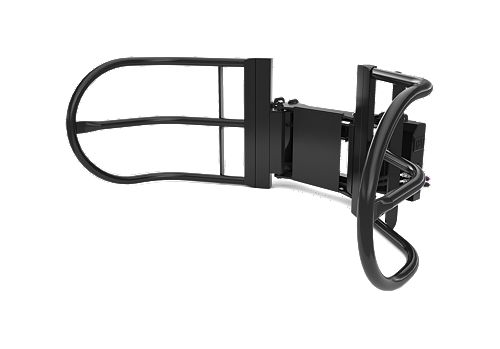

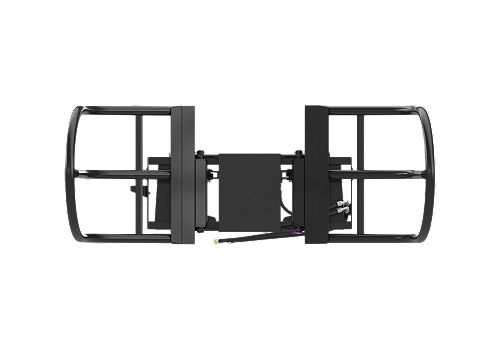

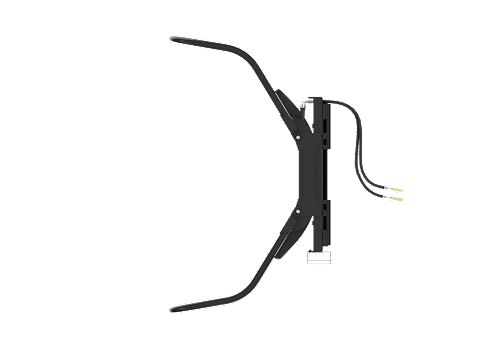

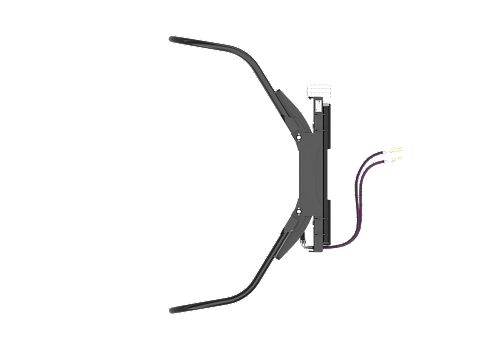

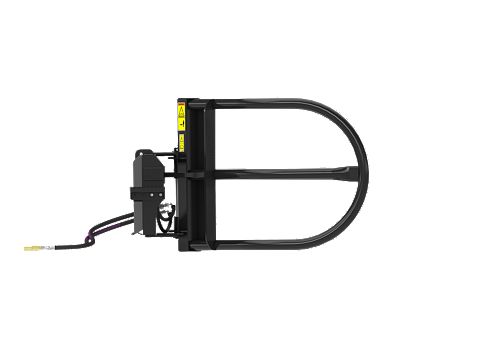

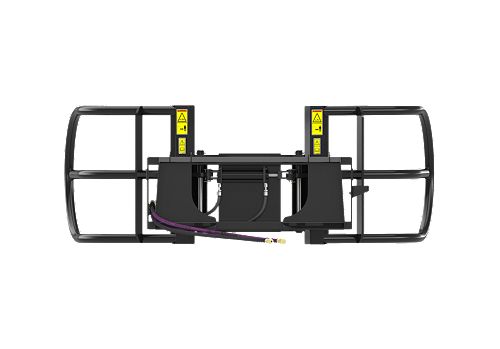

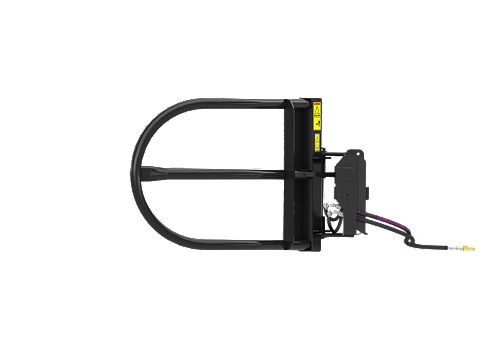

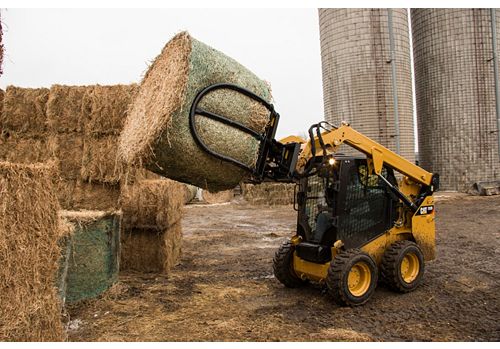

Cat® Bales Grabs safely grab, carry and place square or round baled material.

alt 1
Cat® Bale Grab Brochure
Product Specifications
Overall Height 34.4 in / 873 mm
Overall Depth 64.2 in / 1631 mm
Weight 578.6 lb / 263 kg
Overall Width 55.2 in / 1401 mm
Maximum Opening Width 84 in / 2133 mm
Capacity 2400.2 lb / 1091 kg
Internal Width, Arms Closed 36.1 in / 918 mm
Required Hydraulics Standard Flow
Working Pressure 3000 psi / 21000 kPa

Compact Wheel Loaders

Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.

Model Maximum Gross Power Operating Weight Bucket Capacities
903C2 42 HP / 31 kW 9060 lb / 4110 kg 0.6-1.0 m3 (0.8-1.3 yd3)
906M 73 HP / 54.6 kW 12346 lb / 5600 kg 0.75 m3-1.2 m3 (1.0 yd3-1.6 yd3)
907M 73 HP / 54.6 kW 12677 lb / 5750 kg 0.75 m3-1.2 m3 (1.0 yd3-1.6 yd3)
908M 73 HP / 54.6 kW 14032 lb / 6365 kg 0.9 m3-1.5 m3 (1.2 yd3-2.0 yd3)

Skid Steer Loaders

Built for tough work, the Caterpillar® Skid Steer Loaders deliver Cat reliability, durability, and efficient operation.

Model Engine Model Net Flywheel Power Rated Operating Capacity
226D Cat C2.2 CRDI 65.8 HP / 49.1 kW 1550 lb / 703 kg
232D Cat C2.2 CRDI 65.8 HP / 49.1 kW 1850 lb / 839 kg
236D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW 1800 lb / 818 kg
242D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW 2150 lb / 975 kg
246D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW 2150 lb / 975 kg
262D Cat C3.3B DIT (Turbo) 72.9 HP / 54.4 kW 2700 lb / 1225 kg
272D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW 3400 lb / 1542 kg
272D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW 3650 lb / 1656 kg

Compact Track Loaders

Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.

Model Engine Model Net Power
239D Cat C2.2 CRDI 65.8 HP / 49.1 kW
249D Cat C2.2 CRDI 65.8 HP / 49.1 kW
259D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW
279D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
299D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW
299D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW
289D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW

Multi Terrain Loaders

Extremely low ground pressures let Cat® Multi Terrain Loaders work where other compact track loaders can't.

Model Engine Model Net Power
257D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW
277D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
287D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
297D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW
297D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW
