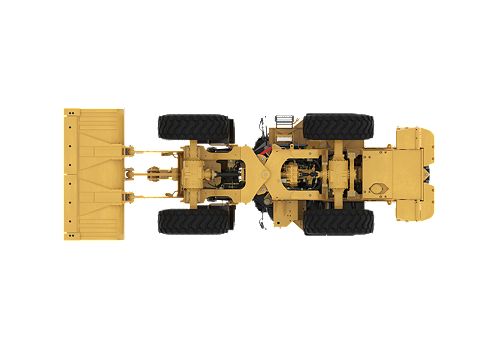

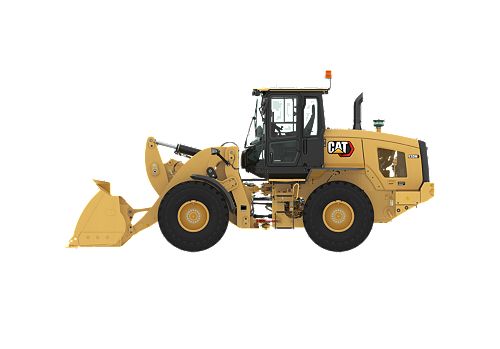

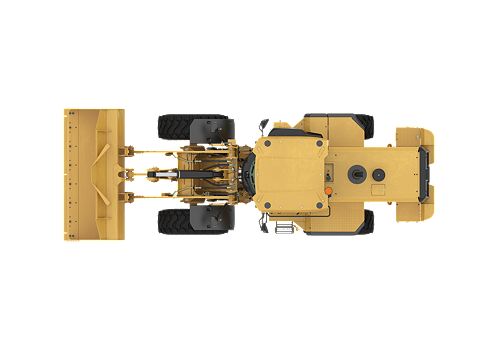

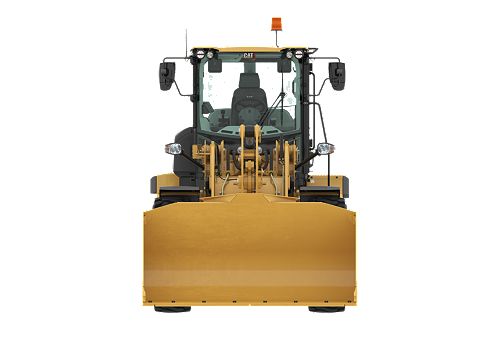

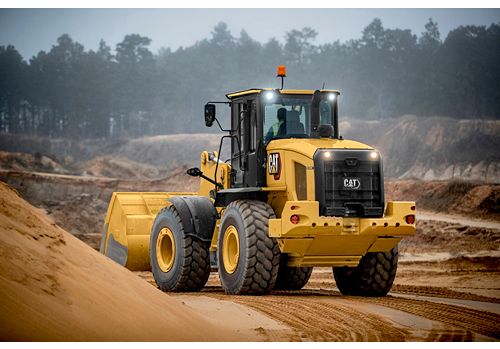

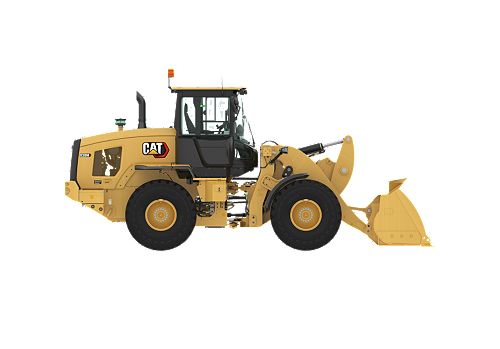

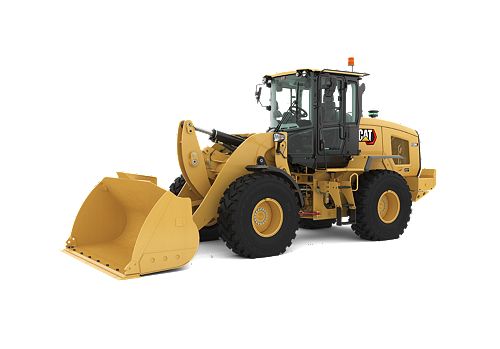

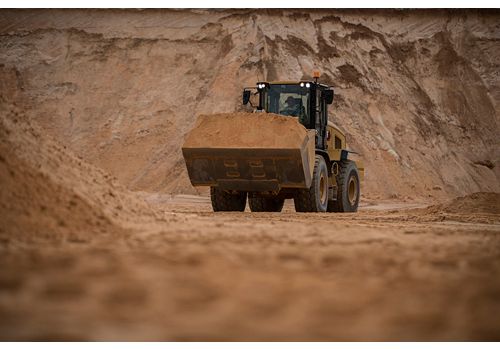

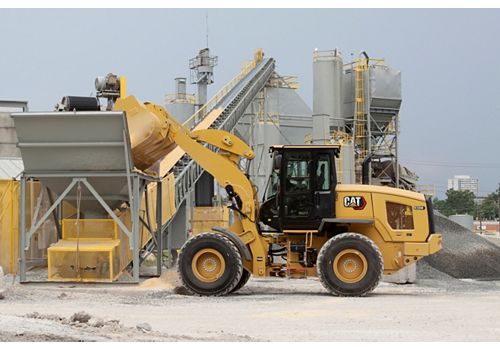

930M Aggregate Handler

Maximum Gross Power: 168 hp / 125 kW
Operating Weight: 31848 lb / 14446 kg
Bore: 4 in / 105 mm

The Cat® 930M Aggregate Handler sets a new standard for productivity, fuel efficiency and comfort. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. The optimized Z-bar loader linkage combined with long wear life Performance Series buckets delivers improved payloads and bucket longevity. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day and even all night! Experience this industry benchmark.

Loan Calculator Credit Application

Build & Quote

926M, 930M, 938M Aggregate Handlers Product Brochure Small Wheel Loader Attachments Brochure Retrofit Options and Accessories for Small Wheel Loaders

Specifications
Equipment
Related Products

Engine
Maximum Gross Power	168 hp / 125 kW
Bore	4 in / 105 mm
Stroke	5 in / 135 mm
Displacement	427 in³ / 7.01 l
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)	601 ft·lbf / 815 N·m
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)	160 hp / 119 kW
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)	586 ft·lbf / 795 N·m
Note (3)	No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)	168 hp / 125 kW
Maximum Rated Gross Power - ISO 14396	168 hp / 125 kW
Note (2)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4)	588 ft·lbf / 797 N·m
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*)	573 ft·lbf / 777 N·m
Engine Model	Cat® C7.1
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)	1600 r/min
Emissions	The Cat C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 4 Final emission standards.
Note (1)	*Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)	1800 r/min
Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	164 hp / 122 kW
Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	163 hp / 122 kW
Maximum Gross Power - ISO 14396 (metric) (Performance Power Mode: Range 1-4)	170 hp / 125 kW
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)	166 hp / 122 kW
Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4)	587 ft·lbf / 796 N·m
Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	156 hp / 116 kW
Maximum Rated Gross Power - ISO 14396 (metric)	170 hp / 125 kW
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	158 hp / 116 kW
Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3*)	572 ft·lbf / 776 N·m
Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3*)	162 hp / 119 kW
Net Power (Performance Power Mode: Range 1-4)	1800 r/min
Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	156 hp / 116 kW
Net Power (Standard Power Mode: Range 1-3*)	1600 r/min

Buckets
Bucket Capacities	2.5-5.0 m3 (3.3-6.5 yd3)

Weights
Operating Weight	31848 lb / 14446 kg
Note (2)	~Aggregate Handler equipped with full counterweight, optional guards, roading fenders, and cold start package.
Note (1)	**Aggregate Handler machine equipped with full counterweight and optional guards.
Operating Weight (1)	14 374 kg (31,689 lb)**
Operating Weight (2)	14 446 kg (31,848 lb)~

Cab
ROPS	ISO 3471:2008
Declared Sound Levels	Declared Sound Levels<br>– Operator Sound Pressure Level (ISO 6396:2008): 68 dB(A)<br>– Exterior Sound Power Level (ISO 6395:2008): 101 dB(A)
FOPS	ISO 3449:2005 LEVEL II
Note (1)	* Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.

Power Train
Rear Axle - Oscillation Angle by Tire Size - 20.5 R25, 550/65, 600/65, 650/65	± 10.5 degrees
Rear Axle	Oscillating
Brakes - Parking	Spring applied hydraulically released
Rear Axle - Traction Aid - Optional	Limited slip differential
Front Axle	Fixed
Brakes - Service	Inboard wet disc
Note (2)	Offset rims available to meet European roading requirements.
Front Axle - Traction Aid*	Locking differential (standard)
Note (3)	*Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M.
Note (1)	Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.

Loader Hydraulic System
Lift Cylinder, Double Acting - Rod Diameter	2.6 in / 65 mm
Maximum Flow - Implement Pump - 4th Function Maximum Flow*	42 gal/min / 160 l/min
Maximum Flow - Implement Pump	50 gal/min / 190 l/min
Relief Pressure - Tilt Cylinder	4061 psi / 28000 kPa
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Raise (Ground Level to Maximum Lift)	5.1/5.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Dump (at Maximum Lift Height)	1.5/1.7 seconds
Lift Cylinder, Double Acting - Stroke	28.7 in / 728 mm
Tilt Cylinder, Double Acting - Rod Diameter	3.5 in / 90 mm
Tilt Cylinder, Double Acting - Stroke	21.9 in / 555 mm
Lift Cylinder, Double Acting - Bore Diameter	4.7 in / 120 mm
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure	4061 psi / 28000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure	3771 psi / 26000 kPa
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Float Down (Maximum Lift to Ground Level)	2.7/2.7 seconds
Note (2)	Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Tilt Cylinder, Double Acting - Bore Diameter	5.9 in / 150 mm
Note (1)	Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Maximum Working Pressure - Implement Pump	3771 psi / 26000 kPa
Note (3)	* 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Total Cycle Time	9.3/10.1 seconds
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*	50 gal/min / 190 l/min

Transmission
Forward and Reverse - Range 3	17 mile/h / 27 km/h
Note	* Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).
Forward and Reverse - Range 1*	1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2	8 mile/h / 13 km/h
Forward and Reverse - Range 4	25 mile/h / 40 km/h

Service Refill Capacities
Rear Axles	6.6 gal (US) / 25 l
Front Axles	6.9 gal (US) / 26 l
Hydraulic Tank	23.8 gal (US) / 90 l
Engine Crankcase	5.3 gal (US) / 20 l
Diesel Exhaust Fluid (DEF) Tank	5 gal (US) / 19 l
Transmission - Gear Box	2.2 gal (US) / 8.5 l
Cooling System	7.9 gal (US) / 30 l
Hydraulic System - Including Tank	43.6 gal (US) / 165 l
Fuel Tank	51.5 Gal / 195 l

Steering
Maximum Flow - Steering Pump	34 gal/min / 130 l/min
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited	2.8 s
Maximum Working Pressure - Steering Pump	3500 psi / 24130 kPa
Steering Cylinder, Double Acting - Bore Diameter	2.8 in / 70 mm
Steering Cylinder, Double Acting - Rod Diameter	1.6 in / 40 mm
Steering Cylinder, Double Acting - Stroke	17.2 in / 438 mm
Note (1)	Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed	2.4 s
Note (2)	Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential – 1430. The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.

Operating Specifications
Note (2)	~Aggregate Handler equipped with full counterweight, optional guards, roading fenders, and cold start package.
Note (1)	**Aggregate Handler machine equipped with full counterweight and optional guards.
Full Turn Tip Load (2)	9302 kg (20,507 lb)~
Full Turn Tip Load (1)	9203 kg (20,289 lb)**

Sustainability
Recyclability	94%

Standard Equipment

POWER TRAIN
- Axle Duo-Cone™ seal guards
- Axle seal guards
- Auto idle shut down feature
- Auto idle shut down feature
- Cat C7.1 engine
  – Power modes (Standard and Performance)
  – Power by range (High Power in Range 4)
  – Turbocharged and aftercooled
  – Diesel particulate filter (Fit for Life)
- Cat® C7.1 engine: – Power Modes (Standard and Performance) – Power by Range (High Power in Range 4) – Turbocharged and aftercooled – Filtered crankcase breather – Diesel particulate filter (Fit for Life)
- Coded start (requires secondary display)
- Coolant protection to –34° C (–29° F)
- Differential lock in front axle
- Differential lock in front axle
- Enclosed wet disc full hydraulic brakes
- Dry type air cleaner
- Hydraulically driven demand cooling fan
- Enclosed wet disc full hydraulic brakes
- Hydrostatic transmission with electronic control
  – Operator modes (Default, TC, Hystat, and Ice)
  – Directional Shift Aggressiveness (fast, medium, slow)
  – Rimpull control, adjust wheel torque
  – Creeper control, adjust ground speed
- Fuel priming pump, automatic
- Parking brake, electric
- Fuel water separator
- Single plane cooling package wide six fins per inch density
- Hydraulically driven demand cooling fan
- Oil sampling ports
- Intelligent hydrostatic transmission: – Power train modes – Directional Shift Aggressiveness – Rimpull control, adjust wheel torque – Creeper control, adjust ground speed
- Throttle lock and max speed limiter
- Lubed for life driveshafts
- Parking brake, electric
- Wide spaced 6 fins per inch cooling package
- S·O·SSM sampling ports
- Throttle lock and maximum speed limiter
HYDRAULICS
- Automatic lift lower and tilt kickouts, adjustable in-cab
- Bucket and fork modes, adjustable in-cab
- Cylinder damping at kickout and mechanical end stops
- Fine mode control (fast, medium, slow)
- Hydraulic response setting (fast, medium, slow)
- Automatic lift, lower and tilt kickouts
- Load sensing hydraulics and steering
- Bucket and Fork Modes, adjustable in-cab
- Seat-mounted hydraulic joystick controls
- Cylinder damping at kickout and end stops
- Fine Mode control in Fork Mode
- Hydraulic Response setting
- Load sensing hydraulics and steering
- Seat-mounted hydraulic joystick controls
ELECTRICAL
- Alternator, 115 amp, heavy duty
- Batteries, 1,000 CCA (2) 24V system, disconnect switch
- Back-up alarm
- Emergency shutdown switch
- Halogen work and roading lights, LED rear tail lights
- Alternator, 115-amp, heavy duty
- Product Link PRO with three year subscription
- 12V power supply in cab (2)
- Remote jump start post
- Batteries, 1,000 CCA (2) 24 volt system
- Resettable main and critical function breakers
- Back-up alarm
- Emergency shutdown switch
- Heavy duty gear reduction starter
- Product Link PRO with subscription
- Remote jump start post
- Resettable main and critical function breakers
OPERATOR ENVIRONMENT
- 75 mm (3 in) High-Vis retractable seat belt, with audible alarm and indicator
- Automatic temperature control
- Cab, pressurized
- Camera, rearview
- External heated mirrors with lower parabolic
- Ground level cab door release
- 75 mm (3 in) retractable seat belt, with audible alarm and indicator
- Hydraulic control lockout
- Automatic temperature control
- Mirror, single
- Cab, enclosed and pressurized
- Lunch box storage
- Cup holders
- Radio ready speakers
- External heated mirrors with lower parabolic
- Rear window defrost, electric
- Ground level cab door release
- Column mounted multi function control – lights, wipers, turn signal
- Gauges: – Digital hour meter, odometer, tachometer, ground speed and direction indicator – Engine coolant temperature gauge – Fuel and Diesel Exhaust Fluid level – Hydraulic oil temperature gauge
- Tilt and telescopic steering wheel
- Hydraulic control lockout
- Tinted front glass
- Interior cab lighting, door and dome
- Wet arm wiper/washer, 2-speed and intermittent, front, lights, wipers, turn signal
- Interior rearview mirrors (2)
- Suspension seat, fabric
- Lunch box storage
- Operator warning system indicators
- Radio ready speakers
- Rear window defrost, electric
- Seat-mounted controls, adjustable
- Sliding glass on the side windows
- Column mounted multi function control – lights, wipers, turn signal
- Suspension seat, fabric
- Tilt and telescopic steering wheel
- Wet arm wiper/washer, front and rear
OTHER STANDARD EQUIPMENT
- Large-access enclosure doors with adjustable close/open force
- Cat optimized Z-bar linkage with parallel lift
- Recovery hitch, with pin
- Remote mounted lubrication points
- Lockable compartments and enclosures
- Large-access enclosure doors
- Parallel lift loader linkage
- Recovery hitch with pin
- Remote mounted lubrication points
- Lockable compartments and enclosures

Optional Equipment

Cab, deluxe (standard in Europe):
- Automatic blower control
- Electrically adjustable heated mirrors (2)
- LED interior lighting
- Secondary display to adjust settings
Cold start package:
- Ether starting aid, block heater and additional batteries 1,000 CCA (4 in total)
OPTIONAL EQUIPMENT
- Autolube, integrated in secondary display
- Auxiliary flow, third and fourth function
- Differential, limited slip, rear
- Beacon light, strobe
- Cab, deluxe (standard in Europe)
  – Camera, rearview integrated into advanced display
  – Electrically adjustable external heated mirrors (2)
  – Secondary display to enable features and adjust parameters
  – LED interior lighting
  – Sunscreen, front and rear
  – Touchscreen secondary display
  – Ride control adjustable speed activation
  – Preventative maintenance reminders
  – Integrated help function (26 languages)
- Camera, roof mounted, front view with separate display
- Cold start package
  – Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)
- Counterweight, additional options
- Coupler, (Fusion and ISO 23727)
- Debris packages (low, medium, high)
- Fenders (extended cover and full coverage)
- Guarding packages
- Linkage, high lift
- Lights, auxiliary, halogen or LED with engine and DEF compartment lights
- Payload Technology
  – Cat Production Measurement (CPM)
  – CPM Printer
- Product Link ELITE with capabilities for software push, data logging, histogram and trend mapping
- Radio packages
- Rear Object Detection
- Ride Control System, adjustable through secondary display
- Seats
  – Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
  – Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
- Steering
  – Dual mode and secondary
- Tire Pressure Monitoring (TPM)
Guards
- Power train, (lower, side, driveshaft and crankcase)
- Windshield and lights
- Cylinders, tilt and steering
Radio packages:
- Radio ready with Bluetooth
- Radio, AM/FM with Bluetooth and clock
- Radio, AM/FM with CD player deluxe, weatherband, Bluetooth and clock
Seats:
- Deluxe seat – fully adjustable fabric air suspension seat with high seat backrest
- Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Heated and cooled bottom cushion and backrest.
Steering:
- Dual mode and Secondary
Tires:
- Bias ply, 17.5, 20.5-25
- Radial, 17.5, 20.5, 23.5, 550/65, 600/65, 650/65 R25

Pallet Fork Carriages

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1566 mm (62 in)	44 in / 1118 mm	62 in / 1566 mm	749.6 lb / 340 kg
1566 mm (62 in)	39.6 in / 1006 mm	62 in / 1566 mm	1569.9 lb / 712.1 kg
1566 mm (62 in)	37.5 in / 953 mm	62 in / 1566 mm	714.3 lb / 324 kg

Command

Combining the Fleet, Terrain, Detect and Health capabilities of Cat® MineStar™ System, Command enables you to implement remote control, semi-autonomous or fully autonomous mining equipment systems - offering unprecedented improvements in operator safety, equipment availability and site productivity.

Model
Cat Command Remote Control for Construction
Cat Command for Loading

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

Light Material Buckets - Performance Series

High capacity increases productivity in handling light materials.

Model	Width	Height	Weight
3.5 m3 (4.6 yd3), Bolt-On Cutting Edge	107.4 in / 2727 mm	57 in / 1449 mm	2747 lb / 1246 kg
4.2 m3 (5.5 yd3), Bolt-On Cutting Edge	107.4 in / 2727 mm	57 in / 1449 mm	3024.7 lb / 1372 kg
5.0 m3 (6.5 yd3), Bolt-On Cutting Edge	107.4 in / 2727 mm	66.4 in / 1687 mm	3152.6 lb / 1430 kg

Pipe & Pole Forks

Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.

Model	Width	Tine Length	Weight
1524 mm (60 in)	100.7 in / 2559 mm	60 in / 1524 mm	3505.3 lb / 1590 kg
1829 mm (72 in)	100.7 in / 2559 mm	72 in / 1829 mm	4301.2 lb / 1951 kg

General Purpose Buckets - Performance Series

General Purpose Performance buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Model	Width	Height	Weight
2.5 m3 (3.3 yd3), Fusion™ Coupler	99.2 in / 2520 mm	54.3 in / 1378 mm	2120.8 lb / 962 kg
2.5 m3 (3.3 yd3), Fusion™ Coupler	107.4 in / 2727 mm	52.5 in / 1333 mm	2123 lb / 963 kg
2.5 m3 (3.3 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	100.4 in / 2549 mm	55.3 in / 1404 mm	2410.9 lb / 1093.56 kg
2.5 m3 (3.3 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	53.5 in / 1358 mm	2431.7 lb / 1103 kg
2.7 m3 (3.5 yd3), Fusion™ Coupler	100 in / 2540 mm	55.7 in / 1414 mm	2120.8 lb / 962 kg
2.7 m3 (3.5 yd3), Fusion™ Coupler	107.4 in / 2727 mm	54.3 in / 1378 mm	2220.1 lb / 1007 kg
2.7 m3 (3.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	107.4 in / 2727 mm	55.3 in / 1404 mm	2541.9 lb / 1153 kg
2.9 m3 (3.8 yd3), Fusion™ Coupler	107.4 in / 2727 mm	55.7 in / 1414 mm	2297.2 lb / 1042 kg
2.9 m3 (3.8 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	56.7 in / 1439 mm	2601.5 lb / 1180 kg

Sand & Gravel Buckets

Sand and Gravel Buckets are designed for aggregate handling in batch plant loader applications.

Model	Width	Height	Weight
2.5 m3 (3.3 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	53.5 in / 1359 mm	2533.1 lb / 1149 kg
2.7 m3 (3.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	55.3 in / 1404 mm	2638.9 lb / 1197 kg
2.9 m3 (3.8 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108 in / 2743 mm	56.7 in / 1440 mm	2724.9 lb / 1236 kg
3.2 m3 (4.2 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	58.6 in / 1488 mm	2788.8 lb / 1265 kg

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA25 Hydraulic, 24V	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm
BA25 Manual	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm
BA30 Hydraulic, 24V	126 in / 3200 mm	118.1 in / 3000 mm	36 in / 915 mm
BA30 Manual	126 in / 3200 mm	118.1 in / 3000 mm	36 in / 915 mm

Loader Rakes

Loader Rakes are designed to remove roots from the ground and are also used to pile up branches, logs or roots during a land cleaning application.

Model	Width	Weight	Overall Height
2348 mm (92 in), Fusion™ Coupler	92.4 in / 2348 mm	4321.1 lb / 1960 kg	73.4 in / 1865 mm
2348 mm (92 in), Fusion™ Coupler	92.4 in / 2348 mm	4620.9 lb / 2096 kg	73.4 in / 1865 mm
2697 mm (106 in), Fusion™ Coupler	106.2 in / 2697 mm	2963 lb / 1344 kg	65.1 in / 1653 mm
3048 mm (120 in), Fusion™ Coupler	120 in / 3048 mm	4936.1 lb / 2239 kg	73.8 in / 1874 mm

Light Material Buckets

Used for loading light, loosely-packed materials.

Model	Width	Height	Weight
3.0 m3 (3.9 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	53.9 in / 1369 mm	2689.6 lb / 1220 kg
3.5 m3 (4.6 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	57 in / 1449 mm	2872.6 lb / 1303 kg
3.8 m3 (5.0 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	58.2 in / 1478 mm	3015.9 lb / 1368 kg
3.8 m3 (5.0 yd3), Pin On, Bolt-On Cutting Edge	108.1 in / 2747 mm	57.9 in / 1471 mm	3062.2 lb / 1389 kg
4.2 m3 (5.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	60.6 in / 1538 mm	3172.4 lb / 1439 kg
5.0 m3 (6.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge	108.1 in / 2747 mm	66.4 in / 1687 mm	3311.3 lb / 1502 kg
3.0 m3 (3.9 yd3), Fusion™ Coupler	107.4 in / 2727 mm	52.9 in / 1343 mm	2370 lb / 1075 kg
3.0 m3 (3.9 yd3), Pin On	107.4 in / 2727 mm	52.9 in / 1343 mm	2411.9 lb / 1094 kg
3.5 m3 (4.6 yd3), Fusion™ Coupler	107.4 in / 2727 mm	56.1 in / 1424 mm	2555.2 lb / 1159 kg
3.5 m3 (4.6 yd3), Pin On	107.4 in / 2727 mm	56 in / 1423 mm	2597 lb / 1178 kg
3.5 m3 (4.6 yd3), Pin On	107.4 in / 2727 mm	56 in / 1423 mm	2599.2 lb / 1179 kg
3.8 m3 (5.0 yd3), Fusion™ Coupler	107.4 in / 2727 mm	57 in / 1447 mm	2696.3 lb / 1223 kg
3.8 m3 (5.0 yd3), Pin On	107.4 in / 2727 mm	57.2 in / 1453 mm	2742.5 lb / 1244 kg
3.8 m3 (5.0 yd3), Pin On	107.4 in / 2727 mm	57.2 in / 1453 mm	2738.1 lb / 1242 kg
4.2 m3 (5.5 yd3), Fusion™ Coupler	107.4 in / 2727 mm	59.8 in / 1520 mm	2852.8 lb / 1294 kg
4.2 m3 (5.5 yd3), Pin On	107.4 in / 2727 mm	59.8 in / 1520 mm	2896.9 lb / 1314 kg
4.2 m3 (5.5 yd3), Pin On	107.4 in / 2727 mm	59.8 in / 1520 mm	2892.5 lb / 1312 kg
5.0 m3 (6.5 yd3), Fusion™ Coupler	107.4 in / 2727 mm	65.4 in / 1662 mm	2991.7 lb / 1357 kg
5.0 m3 (6.5 yd3), Pin On	107.4 in / 2727 mm	65.4 in / 1662 mm	3038 lb / 1378 kg
5.0 m3 (6.5 yd3), Pin On	107.4 in / 2727 mm	65.4 in / 1662 mm	3042.4 lb / 1380 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP25	78.3 in / 2700 mm	60 in / 2500 mm	26 in / 700 mm
