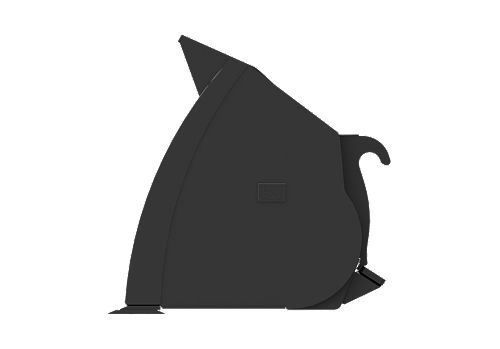

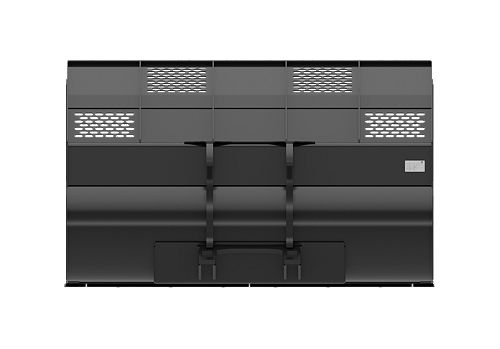

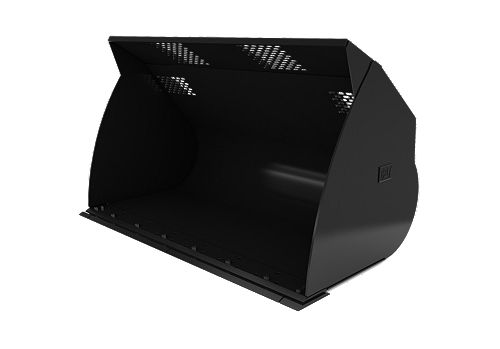

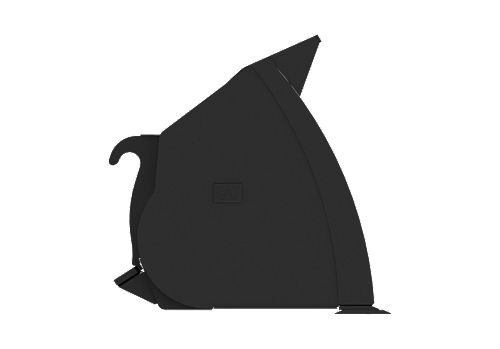

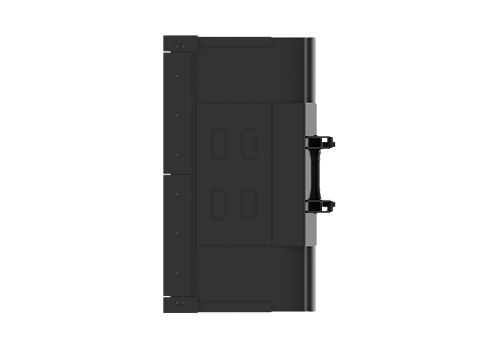

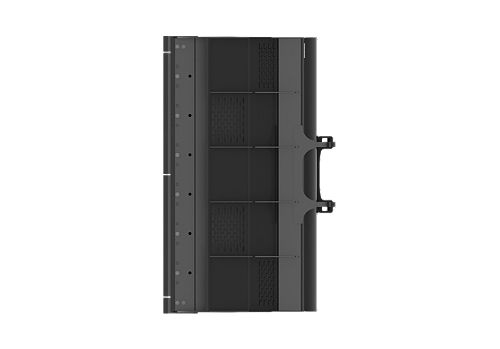

5.0 m3 (6.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge

Width
108.1 in / 2747 mm
Height
66.4 in / 1687 mm
Weight
3311.3 lb / 1502 kg

Used for loading light, loosely-packed materials.

Loan Calculator Credit Application
Build & Quote
alt 1
Product Specifications
Width 108.1 in / 2747 mm
Height 66.4 in / 1687 mm
Weight 3311.3 lb / 1502 kg
Length 66 in / 1676 mm
Capacity 6.5 yd³ / 5 m³
Base Edge Thickness 1 in / 25 mm
Interface Type Fusion™ Coupler

Small Wheel Loaders

Cat® Small Wheel Loaders deliver superior performance, fast cycle times and versatility to help you move more material.

Model Maximum Gross Power Operating Weight Bucket Capacities
926M 168 HP / 125 kW 28193 lb / 12789 kg 1.9-5.0 m3 (2.5-6.5 yd3)
926M Aggregate Handler 168 HP / 125 kW 28577 lb / 12963 kg 2.5-5.0 m3 (3.3-6.5 yd3)
930M 168 HP / 125 kW 31382 lb / 14235 kg 2.1-5.0 m3 (2.7-6.5 yd3)
930M Ag Handler 168 HP / 125 kW 31382 lb / 14235 kg 2.1-5.0 m³ (2.7-6.5 yd³)
930M Aggregate Handler 168 HP / 125 kW 31848 lb / 14446 kg 2.5-5.0 m3 (3.3-6.5 yd3)
930M Waste Handler 168 HP / 125 kW 37713 lb / 17107 kg 3.0-5.0 m3 (3.9-6.5 yd3)
938M 188 HP / 140 kW 35778 lb / 16229 kg 2.5-5.0 m3 (3.2-6.5 yd3)
938M Aggregate Handler 188 HP / 140 kW 36839 lb / 16710 kg 2.9-5.0 m3 (3.8-6.5 yd3)
938M Waste Handler 188 HP / 140 kW 41794 lb / 18958 kg 3.0-5.0 m3 (3.9-6.5 yd3)
