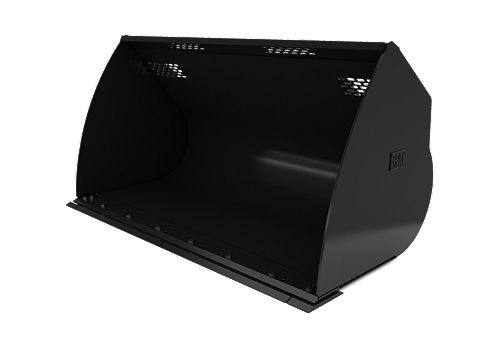

3.8 m3 (5.0 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
- Width
- 108.1 in / 2747 mm
- Height
- 58.2 in / 1478 mm
- Weight
- 3015.9 lb / 1368 kg
Used for loading light, loosely-packed materials.
| Product Specifications | |
|---|---|
| Width | 108.1 in / 2747 mm |
| Height | 58.2 in / 1478 mm |
| Weight | 3015.9 lb / 1368 kg |
| Length | 62.5 in / 1588 mm |
| Capacity | 5 yd³ / 3.8 m³ |
| Base Edge Thickness | 1 in / 25 mm |
| Interface Type | Fusion™ Coupler |
Small Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 926M | 168 hp / 125 kW | 28193 lb / 12789 kg | 1.9-5.0 m3 (2.5-6.5 yd3) |
| 926M Aggregate Handler | 168 hp / 125 kW | 28577 lb / 12963 kg | 2.5-5.0 m3 (3.3-6.5 yd3) |
| 930M | 168 hp / 125 kW | 31382 lb / 14235 kg | 2.1-5.0 m3 (2.7-6.5 yd3) |
| 930M Ag Handler | 168 hp / 125 kW | 31382 lb / 14235 kg | 2.1-5.0 m³ (2.7-6.5 yd³) |
| 930M Aggregate Handler | 168 hp / 125 kW | 31848 lb / 14446 kg | 2.5-5.0 m3 (3.3-6.5 yd3) |
| 930M Waste Handler | 168 hp / 125 kW | 37713 lb / 17107 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
| 938M | 188 hp / 140 kW | 35778 lb / 16229 kg | 2.5-5.0 m3 (3.2-6.5 yd3) |
| 938M Aggregate Handler | 188 hp / 140 kW | 36839 lb / 16710 kg | 2.9-5.0 m3 (3.8-6.5 yd3) |
| 938M Waste Handler | 188 hp / 140 kW | 41794 lb / 18958 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
