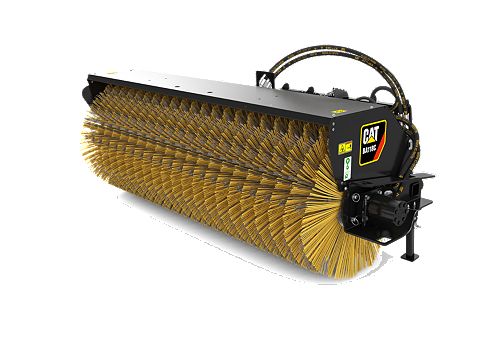

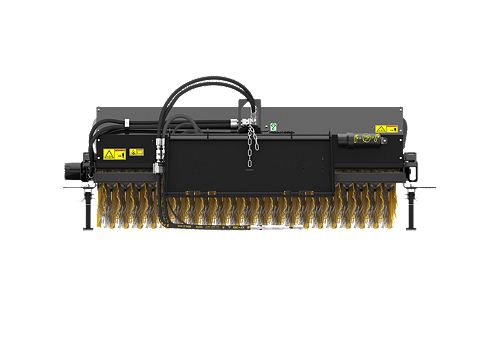

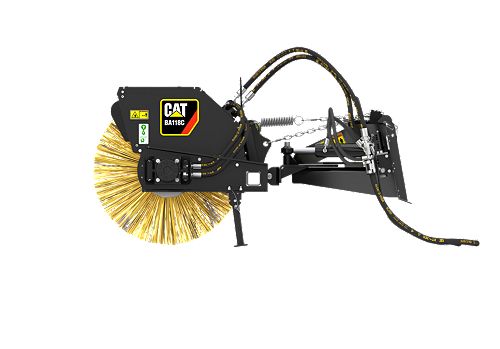

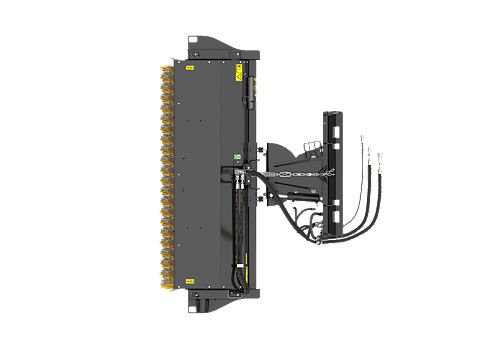

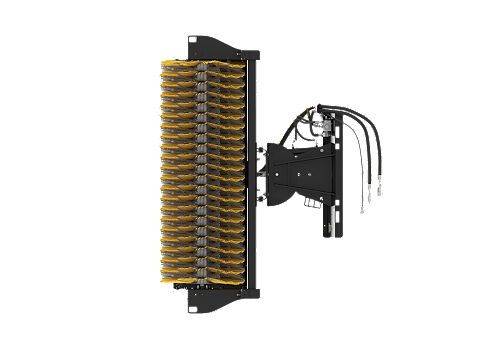

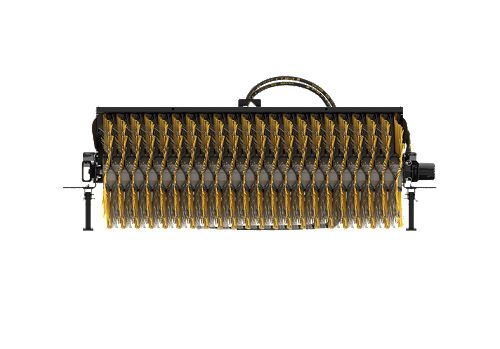

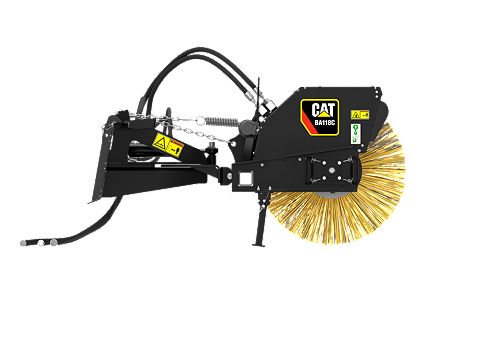

BA118C Hydraulic, Polypropylene/Wire

Overall Width
103.8 in / 2637 mm
Sweeping Width
83.4 in / 2119 mm
Brush Diameter
32.1 in / 815 mm

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® Angle Broom, Pickup Broom and Utility Broom for Compact Equipment Brochure
Product Specifications
Overall Width 103.8 in / 2637 mm
Sweeping Width 83.4 in / 2119 mm
Brush Diameter 32.1 in / 815 mm
Required Hydraulics Standard Flow
Height 36.1 in / 918 mm
Length 68.5 in / 1741 mm
Weight 954.6 lb / 433 kg
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
Motor Displacement 24.7 in³/rev / 405 cm³/rev
Brush Speed at Maximum Flow 199 rpm
Sweeping Width - Angled (± 30 Degrees) 72.8 in / 1849 mm
Overall Width - Angled (± 30 Degrees) 98.7 in / 2508 mm
Drive Method Direct Drive
Interface Type Skid Steer Coupler
Optional Hood Extension 39.7 lb / 18 kg

Compact Wheel Loaders

Cat® compact wheel loaders deliver high performance, versatility, and precision in any application. Caterpillar offers a wide range of attachments from buckets and forks to brooms and snow pushes and more. These mini-size Cat wheel loaders are ideal for general construction, material handling, snow removal, landscaping and beyond.

Model Maximum Gross Power Operating Weight Bucket Capacities
903D 42 hp / 31 kW 9414 lb / 4270 kg 0.6-1.0 m3 (0.8-1.3 yd3)
906 74.7 hp / 55.7 kW 12628 lb / 5730 kg 0.75-1.55 m³ (1.0-2.0 yd³)
908 74.7 hp / 55.7 kW 14617 lb / 6632 kg 0.75-1.55 m³ (1.0-2.0 yd³)
906M 73.2 hp / 54.6 kW 12346 lb / 5600 kg 0.75-1.5 m3 (1.0-2.0 yd3)
906M Ag Handler 73.2 hp / 54.6 kW 12758 lb / 5789 kg 0.75-1.5 m³ (1.0-2.0 yd³)
907M 73.2 hp / 54.6 kW 12677 lb / 5750 kg 0.75-1.5 m3 (1.0-2.0 yd3)
907M Ag Handler 73.2 hp / 54.6 kW 12958 lb / 5880 kg 0.75-1.5 m³ (1.0-2.0 yd³)
908M 73.2 hp / 54.6 kW 14032 lb / 6365 kg 0.75-1.5 m3 (1.0-2.0 yd3)
908M Ag Handler 73.2 hp / 54.6 kW 14402 lb / 6535 kg 0.9-1.5 m³ (1.2-2.0 yd³)

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995:2014 Rated Operating Capacity Operating Weight
226D3 67.1 hp / 50.1 kW 1550 lb / 705 kg 5849 lb / 2653 kg
232D3 67.1 hp / 50.1 kW 1900 lb / 865 kg 6514 lb / 2955 kg
236D3 74.3 hp / 55.4 kW 1800 lb / 820 kg 6567 lb / 2979 kg
242D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7138 lb / 3238 kg
246D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7478 lb / 3392 kg
262D3 74.3 hp / 55.4 kW 2700 lb / 1225 kg 8296 lb / 3763 kg
272D3 98 hp / 73 kW 3450 lb / 1570 kg 9133 lb / 4143 kg
272D3 XE 110 hp / 82 kW 3700 lb / 1680 kg 9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995 Rated Operating Capacities - 35% Tipping Load Operating Weight
239D3 67.1 hp / 50.1 kW 1530 lb / 695 kg 7434 lb / 3372 kg
249D3 67.1 hp / 50.1 kW 1740 lb / 790 kg 7831 lb / 3552 kg
259D3 74.3 hp / 55.4 kW 2010 lb / 915 kg 8987 lb / 4076 kg
279D3 74.3 hp / 55.4 kW 2220 lb / 1010 kg 10095 lb / 4579 kg
289D3 74.3 hp / 55.4 kW 2890 lb / 1315 kg 10688 lb / 4848 kg
299D3 98 hp / 73 kW 3480 lb / 1580 kg 11464 lb / 5200 kg
299D3 XE 110 hp / 82 kW 3560 lb / 1620 kg 11756 lb / 5333 kg
299D3 XE Land Management 110 hp / 82 kW 4340 lb / 1975 kg 12764 lb / 5790 kg
