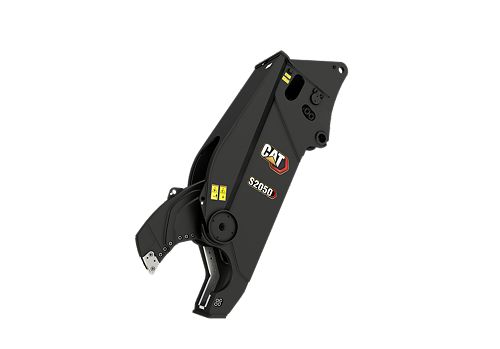

S2050 Straight Scrap & Demolition Shear

Heavy Equipment

S2050 Straight Scrap & Demolition Shear

Apex Force
340 ton-f / 3029 kN
Cutting Circuit - Maximum Flow
92 gal/min / 350 l/min
Cutting Circuit - Maximum Relief Pressure
5075 psi / 35000 kPa

Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.

Loan Calculator Credit Application
Build & Quote
alt 1
Shears Key Features
Product Specifications
Apex Force 340 ton-f / 3029 kN
Boom Mounted – Maximum 29 tons
Boom Mounted – Minimum 18 tons
Cutting Circuit - Maximum Flow 92 gal/min / 350 l/min
Cutting Circuit - Maximum Relief Pressure 5075 psi / 35000 kPa
Cycle Time - Close 3.3 s
Cycle Time - Open 4 s
Height 60 in / 1520 mm
Jaw Depth 25 in / 635 mm
Jaw Opening 26.8 in / 681 mm
Jaw Width - Fixed 19 in / 476 mm
Jaw Width - Moving 5 in / 135 mm
Length 140 in / 3555 mm
Throat Force 741 ton-f / 6592 kN
Tip Force 187 ton-f / 1667 kN
Weight - Boom Mount 9206 lb / 4175 kg
Width 25 in / 635 mm

Medium Excavators

Cat mid-size excavators range from 20 to 35 tons (20,000 to 35,000 kg). Their size makes them easy to transport to the jobsite, and their power, exclusive Cat Connect Technology, and Cat attachments help you complete larger projects at a lower cost.

Model Engine Model Net Flywheel Power
320 Cat C4.4 ACERT 162 HP / 121 kW
320 GC Cat C4.4 ACERT 143 HP / 107 kW
323 Cat C7.1 ACERT 162 HP / 121 kW
325F L Cat C4.4 ACERT 161 HP / 120 kW
326F L (2017) Cat C7.1 ACERT 200 HP / 149 kW
