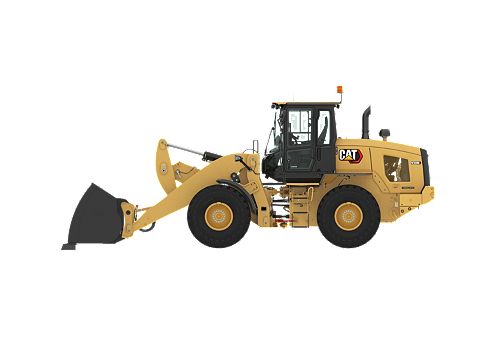

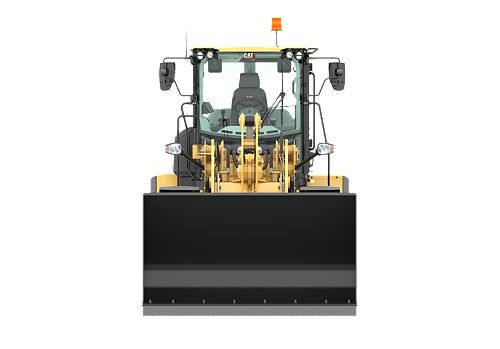

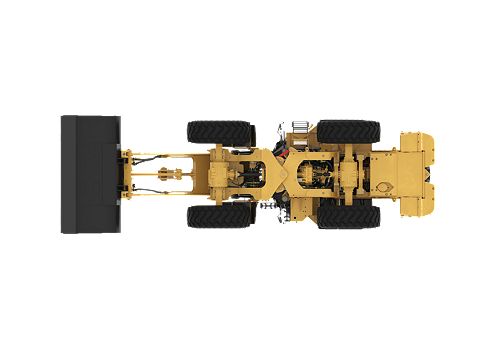

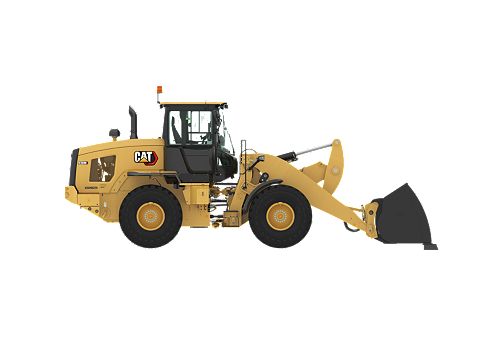

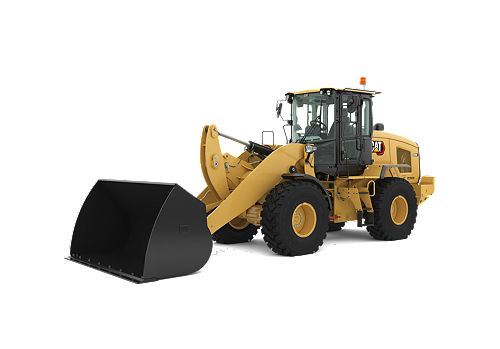

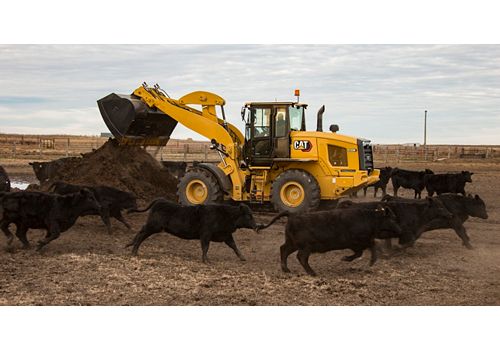

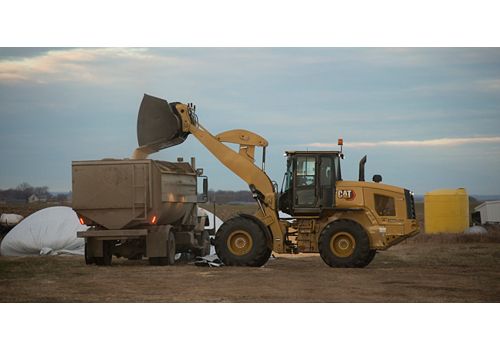

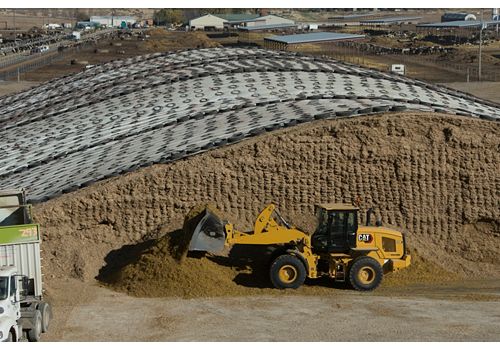

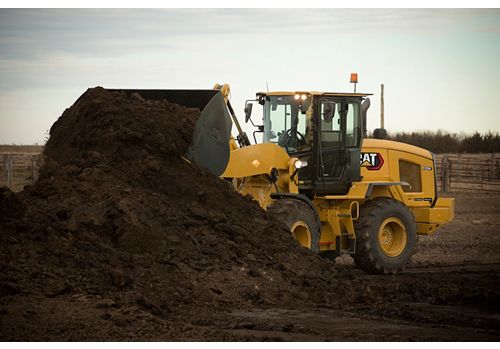

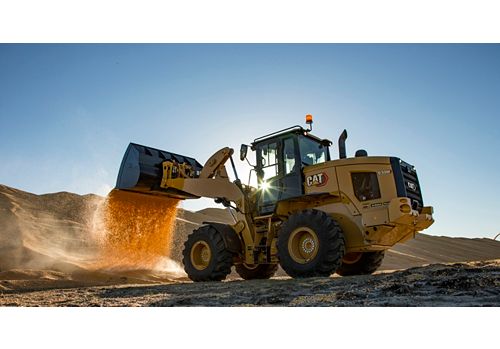

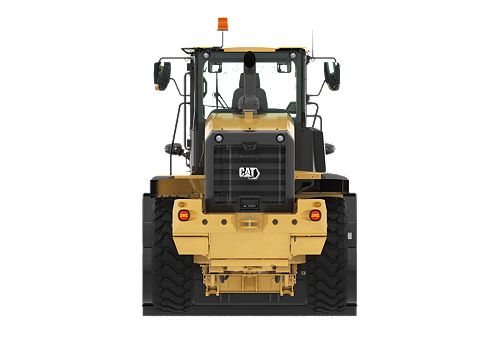

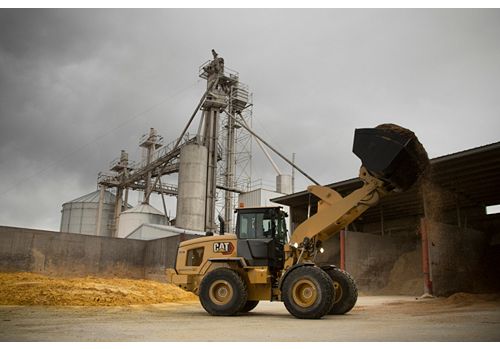

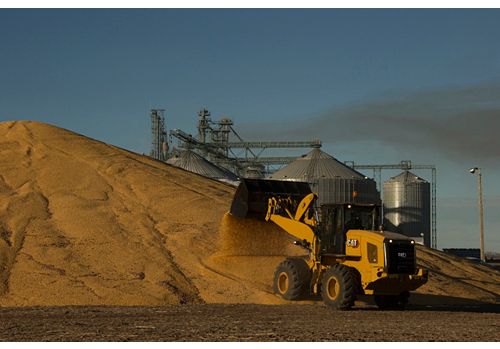

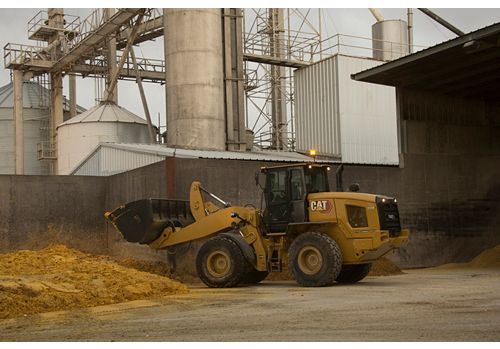

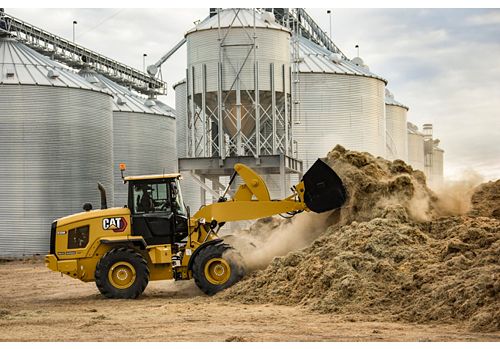

930M Ag Handler

Heavy Equipment

930M Ag Handler

Maximum Gross Power
164 HP / 122 kW
Operating Weight
31876 lb / 14459 kg
Maximum Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)
162 HP / 119 kW

930M Ag Handler

Engine
Engine Model Cat® C7.1
Maximum Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*) 162 HP / 119 kW
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*) 160 HP / 119 kW
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*) 1600 r/min
Rated Net Power - 1,600 rpm - ISO 9249 (DIN) (Standard Power Mode: Speed Range 1-3*) 158 HP / 116 kW
Rated Net Power - 1,600 rpm - SAE J1349 (Standard Power Mode: Speed Range 1-3*) 154 HP / 115 kW
Rated Net Power - 1,600 rpm - SAE J1349 at Maximum Fan Speed (Standard Power Mode; Speed Range 1-3*) 141 HP / 105 kW
Maximum Gross Power 164 HP / 122 kW
Displacement (Performance Power Mode: Speed Range 1-4) 427 in³ / 7.01 l
Displacement (Standard Power Mode: Speed Range 1-3*) 427 in³ / 7.01 l
Emissions Engine meets U.S. EPA Tier 4 Final emission standards.
Maximum Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4) 166 HP / 122 kW
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4) 164 HP / 122 kW
Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4) 1800 r/min
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4) 592 ft·lbf / 804 N·m
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*) 592 ft·lbf / 804 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode; Speed Range 1-4) 572 ft·lbf / 776 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode; Speed Range 1-3*) 572 ft·lbf / 776 N·m
Maximum Net Torque - SAE J1349 (Performance Power Mode; Speed Range 1-4) 566 ft·lbf / 768 N·m
Maximum Net Torque - SAE J1349 (Standard Power Mode; Speed Range 1-3*) 566 ft·lbf / 768 N·m
Note (1) Net power shown is the power available at the flywheel when the engine is equipped with alternator, air cleaner and diesel exhaust filter.
Note (2) Spark arrester performance as standard – Meets the performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test) and U.S. Forestry Service SAE J350.
Note (3) *Range 4 power is boosted to be the same as Performance Mode.
Rated Net Power - 1,800 rpm - ISO 9249 (DIN) (Performance Power Mode: Speed Range 1-4) 162 HP / 119 kW
Rated Net Power - 1,800 rpm - SAE J1349 (Performance Power Mode: Speed Range 1-4) 157 HP / 117 kW
Rated Net Power - 1,800 rpm - SAE J1349 at Maximum Fan Speed (Performance Power Mode; Speed Range 1-4) 143 HP / 107 kW
Buckets
Bucket Capacities 3.1-5.0 m3 (4.0-6.5 yd3)
Bucket Capacities - Light Material 3.1-5.0 m3 (4.0-6.5 yd3)
Weights
Operating Weight 31876 lb / 14459 kg
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level II
Note (1) The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, are: – Standard cab: 68 ±3 dB(A) – Deluxe cab: 66 ±2 dB(A)
Note (2) *The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Axles
Front Fixed; Locking differential (standard)
Rear Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)
Dimensions and Operating Specifications (Approximate) - 3.1 m³ (4.1 yd³) Bucket
Articulation Angle 40 degrees
Breakout* 18808 lb / 8532 kg
Carry Height - Bucket Pin 2 ft / 613 mm
Clearance - Bucket at 45° * 10.42 ft / 3177 mm
Clearance - Level Bucket** 13.33 ft / 4073 mm
Clearance - Loadover Height** 11.58 ft / 3550 mm
Departure Angle 33 degrees
Dig Depth** 5.3 in / 135 mm
Dump Angle at Full Lift 44 degrees
Height - Bucket Pin** 14.42 ft / 4400 mm
Height - Ground Axle Center** 2.17 ft / 685 mm
Height - Ground Clearance** 1.25 ft / 397 mm
Height - Ground to Beacon** 12.08 ft / 3707 mm
Height - Ground to Cab** 10.92 ft / 3340 mm
Height - Overall** 18.67 ft / 5697 mm
Length - Hitch to Front Axle 4.92 ft / 1500 mm
Length - Overall* 27.25 ft / 8323 mm
Length - Rear Axle to Bumper 6.5 ft / 1993 mm
Length - Wheel Base 9.83 ft / 3000 mm
Note (1) *Vary with bucket.
Note (2) **Vary with tire.
Note (3) Dimensions listed are for a 930M Ag Handler High Lift configured with Fusion™ light material bucket, bolt-on cutting edge, logger/aggregate counterweights, additional guarding, 80 kg (176 lb) operator and Michelin 20.5 R25 (L-3) XHA2 tires.
Operating Weight* 31876 lb / 14459 kg
Rack Angle at Carry 48 degrees
Rack Angle at Full Lift 51 degrees
Reach - Bucket at 45°* 4.42 ft / 1350 mm
Tipping Load - Full Turn - ISO 14397-1* 13934 lb / 6320 kg
Tipping Load - Straight - ISO 14397-1* 16430 lb / 7453 kg
Turning Radius - Inside of Tires 9.33 ft / 2851 mm
Turning Radius - Outside of Tires 17.67 ft / 5402 mm
Turning Radius - Over Bucket 20.92 ft / 6392 mm
Width - Bucket 9 ft / 2750 mm
Width - Over Tires 8.33 ft / 2540 mm
Width - Tread Center 6.25 ft / 1930 mm
Dimensions and Operating Specifications (Approximate) - 3.5 m³ (4.6 yd³) Bucket
Articulation Angle 40 degrees
Breakout* 17246 lb / 7823 kg
Carry Height - Bucket Pin 2 ft / 613 mm
Clearance - Bucket at 45° * 10.17 ft / 3107 mm
Clearance - Level Bucket** 13.33 ft / 4073 mm
Clearance - Loadover Height** 11.58 ft / 3550 mm
Departure Angle 33 degrees
Dig Depth** 5.3 in / 135 mm
Dump Angle at Full Lift 44 degrees
Height - Bucket Pin** 14.42 ft / 4400 mm
Height - Ground Axle Center** 2.17 ft / 685 mm
Height - Ground Clearance** 1.25 ft / 397 mm
Height - Ground to Beacon** 12.08 ft / 3707 mm
Height - Ground to Cab** 10.92 ft / 3340 mm
Height - Overall** 19 ft / 5802 mm
Length - Hitch to Front Axle 4.92 ft / 1500 mm
Length - Overall* 27.58 ft / 8425 mm
Length - Rear Axle to Bumper 6.5 ft / 1993 mm
Length - Wheel Base 9.83 ft / 3000 mm
Note (1) *Vary with bucket.
Note (2) **Vary with tire.
Note (3) Dimensions listed are for a 930M Ag Handler High Lift configured with Fusion™ light material bucket, bolt-on cutting edge, logger/aggregate counterweights, additional guarding, 80 kg (176 lb) operator and Michelin 20.5 R25 (L-3) XHA2 tires.
Operating Weight* 32136 lb / 14577 kg
Rack Angle at Carry 48 degrees
Rack Angle at Full Lift 51 degrees
Reach - Bucket at 45°* 4.67 ft / 1424 mm
Tipping Load - Full Turn - ISO 14397-1* 13592 lb / 6166 kg
Tipping Load - Straight - ISO 14397-1* 16070 lb / 7290 kg
Turning Radius - Inside of Tires 9.33 ft / 2851 mm
Turning Radius - Outside of Tires 17.67 ft / 5402 mm
Turning Radius - Over Bucket 21.92 ft / 6427 mm
Width - Bucket 9 ft / 2750 mm
Width - Over Tires 8.33 ft / 2540 mm
Width - Tread Center 6.25 ft / 1930 mm
Loader Hydraulic System
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Dump, at Maximum Lift Height 1.4 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Float Down, Maximum Lift to Ground Level 1.8 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Raise, Ground Level to Maximum Lift 4.3 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Total Cycle Time 7.5 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Dump, at Maximum Lift Height 1.6 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Float Down, Maximum Lift to Ground Level 1.8 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Raise, Ground Level to Maximum Lift 4.8 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Total Cycle Time 8.2 s
Maximum Flow - Implement Pump 50 gal/min / 190 l/min
Maximum Flow - Implement Pump - 3rd Function* 50 gal/min / 190 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow* 42 gal/min / 160 l/min
Maximum Working Pressure - Implement Pump 4061 psi / 28000 kPa
Note *Adjustable from 20% to 100% of maximum flow through the secondary display, when equipped.
Relief Pressure - Tilt Cylinder 4351 psi / 30000 kPa
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure 4061 psi / 28000 kPa
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure 4061 psi / 28000 kPa
Service Refill Capacities
Axles - Front 6.9 gal (US) / 26 l
Axles - Rear 6.6 gal (US) / 25 l
Cooling System 7.9 gal (US) / 30 l
Diesel Exhaust Fluid (DEF) Tank 5 gal (US) / 19 l
Engine Crankcase 5.3 gal (US) / 20 l
Fuel Tank 51.5 gal (US) / 195 l
Hydraulic System - Including Tank 43.6 gal (US) / 165 l
Hydraulic Tank 23.8 gal (US) / 90 l
Note DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Transmission - Gear Box 2.2 gal (US) / 8.5 l
Steering
Maximum Flow - Steering Pump 34 gal/min / 130 l/min
Maximum Steering Torque - 0° (Straight Machine) 37155 ft·lbf / 50375 N·m
Maximum Steering Torque - 40° (Full Turn) 27747 ft·lbf / 37620 N·m
Maximum Working Pressure - Steering Pump 3500 psi / 24130 kPa
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left 3.5 turns
Steering Articulation Angle - Each Direction 40°
Steering Cycle Times - Full Left to Full Right - At 1,800 rpm: 90 rpm Steering Wheel Speed 2.4 s
Tires
Note (1) Other tire choices are available. Contact your Cat dealer for details.
Note (2) In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities.
Note (3) Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Other Choices Include 20.5 R25, radial (L-2); 20.5-25 12PR (L-2); 20.5-25 12PR (L-3)
Standard Size 20.5 R25, radial (L-3)
Transmission
Forward and Reverse - Range 1* 1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2 8 mile/h / 13 km/h
Forward and Reverse - Range 3 17 mile/h / 27 km/h
Forward and Reverse - Range 4 25 mile/h / 40 km/h
Note *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display, when equipped. Factory default is 7 km/h (4.4 mph).

Standard Equipment

  • POWER TRAIN
    • Auto idle shut down feature
    • Cat C7.1 engine
      • Power modes (Standard and Performance)
      • Power by range (High Power in Range 4)
      • Turbocharged and aftercooled
      • Filtered crankcase breather
      • Diesel particulate filter
      • Selective Catalyst Reduction
    • Coded start (requires secondary display)
    • Coolant protection to –34° C (–29° F)
    • Enclosed wet disc full hydraulic brakes
    • Fuel priming pump, automatic
    • Hydraulically driven demand cooling fan
    • Hydrostatic transmission with electronic control
      • Operator modes (Default, TC, Hystat™, and Ice)
      • Directional Shift Aggressiveness (fast, medium, slow)
      • Rimpull control, adjust wheel torque
      • Creeper control, adjust ground speed
    • Locking differential front axle – on the go engagement with “Always ON” feature
    • Parking brake, electric
    • Single plane cooling package wide six fins per inch density
    • Throttle lock and max speed limiter
  • HYDRAULICS
    • Automatic lift and bucket kickouts, adjustable in-cab
    • Bucket and fork modes, adjustable in-cab
    • Cylinder damping at kickout and mechanical end stops
    • Fine mode control (fast, medium, slow) in fork mode
    • Hydraulic response setting (fast, medium, slow)
    • Hydraulic diagnostic connectors and S·O·SSM ports
    • Load sensing hydraulics and steering
  • ELECTRICAL
    • Alternator, 115 amp, heavy duty
    • 12V power supply in cab (2)
    • Batteries, 1,000 CCA (2) 24V system, disconnect switch
    • Back-up alarm
    • Debris package (reversing fan)
    • Emergency shutdown switch
    • Halogen work and roading lights, LED rear tail lights
    • Product Link™ PRO
    • Remote jump start post
    • Resettable main and critical function breakers
  • OPERATOR ENVIRONMENT
    • 75 mm (3 in) retractable seat belt, with audible alarm and indicator
    • Automatic temperature control
    • External heated mirrors with lower parabolic
    • Hydraulic control lockout
    • Interior cab lighting, door and dome
    • Interior rearview mirrors (2)
    • Lunch box storage
    • Radio ready speakers
    • Rear window defrost, electric
    • Seat-mounted electronic implement controls, adjustable
    • Column mounted multi function control – lights, wipers, turn signal
    • Tilt and telescopic steering wheel
    • Tinted front glass
    • Wet arm wiper/washer, 2-speed and intermittent, front
  • OTHER STANDARD EQUIPMENT
    • High Lift linkage
    • Large-access enclosure doors with adjustable close/open force
    • Parallel Lift loader linkage

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Auto lube, integrated in secondary display
    • Auxiliary flow, third and fourth function, adjustable through secondary display
    • Auxiliary tool box
    • Beacon light, strobe
    • Cab, deluxe
      • Electrically adjustable external heated mirrors (2)
      • Secondary touch screen display to enable features and adjust parameters
      • Sunscreen, front and rear
      • Windshield washing access steps
    • Camera, rearview
    • Cat Production Measurement weigh scale system integrated into secondary display
    • Cold start package
    • Coupler, (Fusion and ISO 23727)
    • Fenders (extended cover and full coverage)
    • Guarding (machine and operator)
    • Guarding (power train and light)
    • Lights, auxiliary, halogen or LED with engine compartment lights
    • Limited slip rear axle
    • Object Detection
    • Product Link ELITE with capabilities for software push, data logging, histogram and trend mapping
    • Radio packages
    • Ride Control System, adjustable through secondary display
    • Seats
      • Deluxe seat – fully adjustable fabric air suspension seat with mid backrest and mechanical lumbar support
      • Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
    • Steering
      • Dual mode and secondary
    • Tire Pressure Monitoring (TPM) integrated into secondary display
Contact Us
x

We're here to help

We'll do our best to get back to you as soon as possible.
