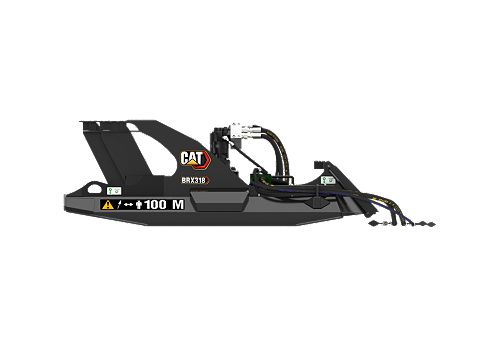

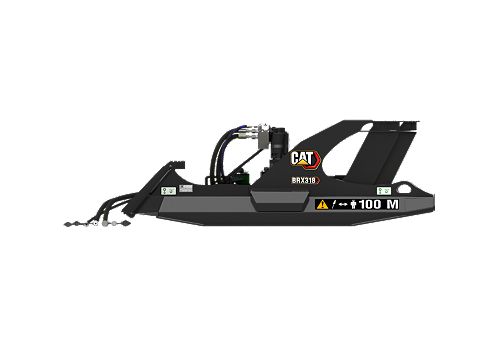

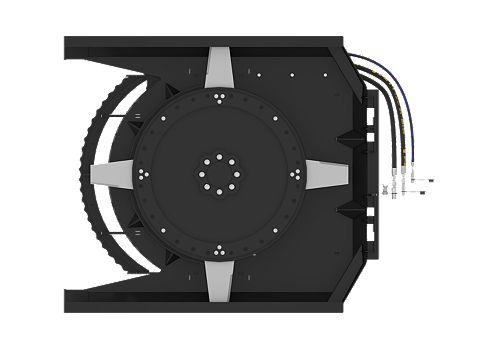

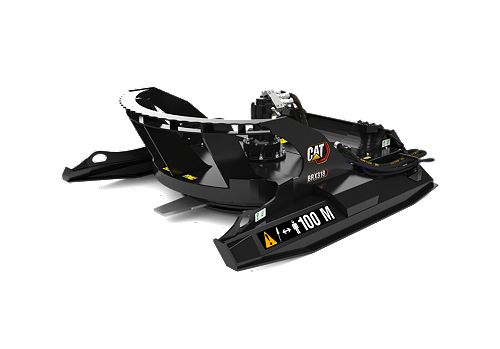

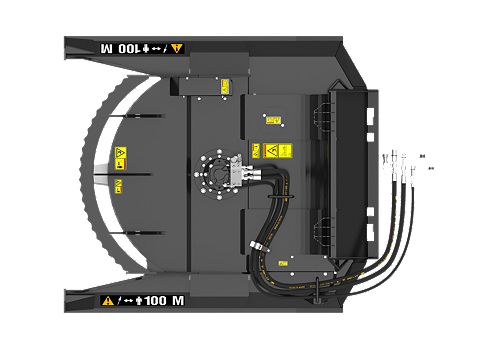

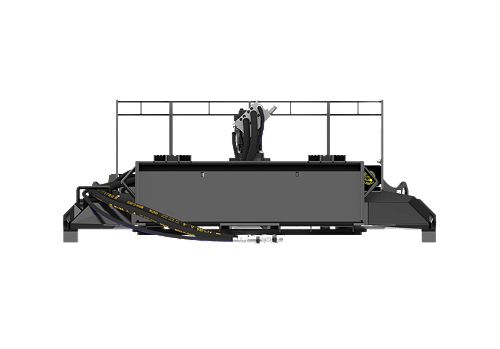

BRX318 Industrial

Heavy Equipment

BRX318 Industrial

Overall Width
75 in / 1911 mm
Cutting Width
72 in / 1829 mm
Maximum Cutting Diameter
8 in / 203 mm

Cat® Industrial Brushcutters are best for right of way maintenance, clearing land and brush cutting.

alt 1
Product Specifications
Overall Width 75 in / 1911 mm
Cutting Width 72 in / 1829 mm
Optimal Hydraulic Pressure 200-280 bar (2800-4100 psi)
Overall Height 29 in / 733 mm
Overall Length 86 in / 2170 mm
Required Hydraulic Flow 121 L/min (32 gpm)
Weight 2364 lb / 1072 kg
Maximum Cutting Diameter 8 in / 203 mm
Cutting Speed 596 RPM
Drive Shaft Torque 611 ft·lbf / 829 N·m
Required Hydraulics High Flow XPS

Compact Wheel Loaders

Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.

Model Maximum Gross Power Operating Weight Bucket Capacities
906M 73 HP / 54.6 kW 12346 lb / 5600 kg 0.75 m3-1.2 m3 (1.0 yd3-1.6 yd3)
907M 73 HP / 54.6 kW 12677 lb / 5750 kg 0.75 m3-1.2 m3 (1.0 yd3-1.6 yd3)
908M 73 HP / 54.6 kW 14032 lb / 6365 kg 0.9 m3-1.5 m3 (1.2 yd3-2.0 yd3)

Skid Steer Loaders

Built for tough work, the Caterpillar® Skid Steer Loaders deliver Cat reliability, durability, and efficient operation.

Model Engine Model Net Flywheel Power Rated Operating Capacity
262D Cat C3.3B DIT (Turbo) 72.9 HP / 54.4 kW 2700 lb / 1225 kg
272D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW 3400 lb / 1542 kg
272D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW 3650 lb / 1656 kg

Compact Track Loaders

Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.

Model Engine Model Net Power
259D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW
279D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
299D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW
299D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW
289D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW

Multi Terrain Loaders

Extremely low ground pressures let Cat® Multi Terrain Loaders work where other compact track loaders can't.

Model Engine Model Net Power
257D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW
277D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
287D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
297D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW
297D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW
