PM825

Heavy Equipment

PM825

Milling Width
98.6 in / 2505 mm
Rated Power
800.6 HP / 597 kW
Operating Weight
82673 lb / 37500 kg

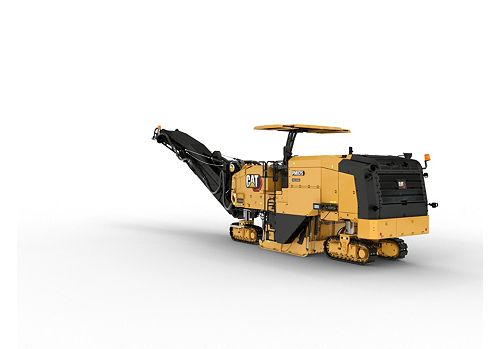

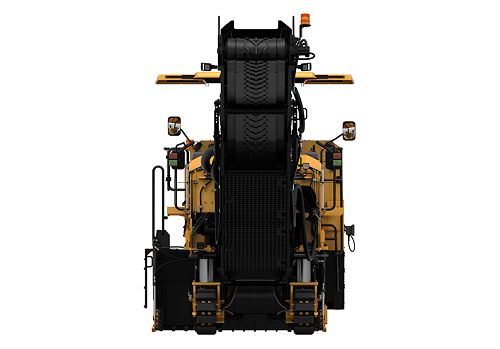

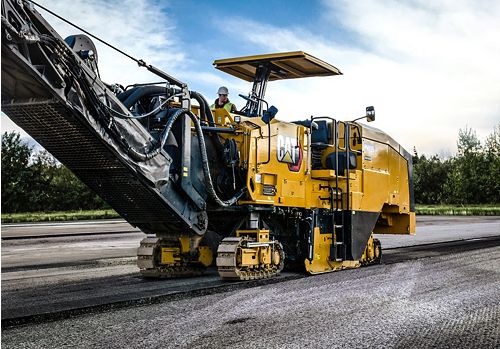

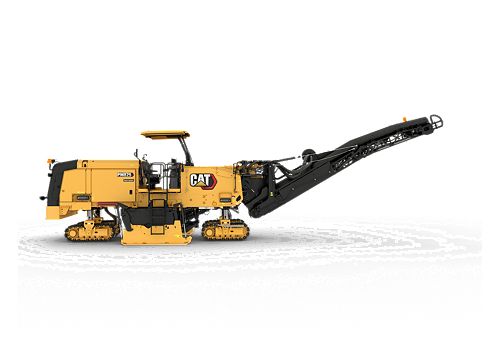

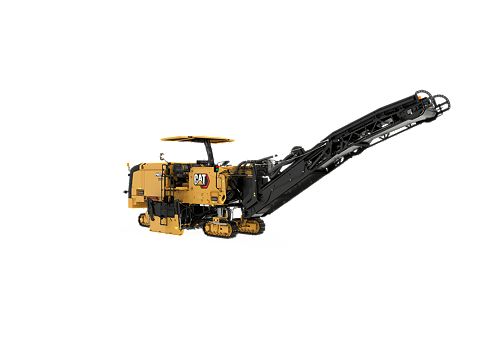

The PM825 is a high-production, half-lane milling machine with a cutting width of 2505 mm (98.6 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass.

Cutting System
Milling Width 98.6 in / 2505 mm
Maximum Milling Depth 13 in / 330 mm
Rotor Speeds 100 / 109 / 118 rpm
Number of Bits 203
Power Train
Rated Power 800.6 HP / 597 kW
Engine Cat C18 twin-turbo
Maximum Travel Speed 3.7 mile/h / 5.9 km/h
Maximum Milling Speed 328 ft/min / 100 m/min
Weights
Operating Weight 82673 lb / 37500 kg
Transport Weight 74075 lb / 33600 kg
Dimensions
Operating Length - Conveyor Up 47.64 ft / 14.52 m
Operating Width 11.02 ft / 3.36 m
Height - Canopy 13.29 ft / 4.05 m
Maximum Truck Clearance 15.94 ft / 4.86 m
Minimum Right Cutting Radius 4.92 ft / 1.5 m
Minimum Left Cutting Radius 6.56 ft / 2 m
Conveyor Swing 60 degrees from center
Transport Length 40.78 ft / 12.43 m
Transport Width 9.88 ft / 3.01 m
Transport Height 9.84 ft / 3 m
Service Refill Capacities
Water Spray System Tank 898.2 gal (US) / 3400 l
Cooling System 27.5 gal (US) / 104 l
Fuel Tank 292.7 gal (US) / 1108 l
Engine Oil 17.2 gal (US) / 65 l
Hydraulic Tank 29.9 gal (US) / 113 l

Standard Equipment

  • OPERATOR ENVIRONMENT
    • Ground control keypads
    • Single high-resolution LCD touchscreen display
    • 12-volt power receptacle
  • CAT CONNECT TECHNOLOGY
    • Remote troubleshoot capability
    • Cat Product Link
    • Cat GRADE
  • CONVEYOR
    • Grease tensioner
    • Material removal boost feature
  • ROTOR SYSTEM
    • Automatic plunge-cut
    • Automatic transition feature
    • Obstacle jump
    • Three cutting speeds
    • System K Rotor - Standard (15 mm)
  • POWERTRAIN
    • Auto engine idle control
    • High capacity cooling system
    • Dual propel pumps
    • Automatic load control
  • HYDRAULIC SYSTEM
    • Dual pump hydraulic propel system
    • Traction control
  • SERVICE AND MAINTENANCE
    • Sampling ports for Scheduled Oil Sampling (S·O·S)
    • Power hood
    • Platform-level engine oil dipsticks
    • Rotor chamber water spray system
    • Air compressor
    • Accessory drive system
    • 3400 L (898 gal) onboard water tank
    • Side water fill valve
  • SAFETY AND SECURITY
    • Platform handrails
    • Signaling/warning horn
    • Halogen work lighting

Optional Equipment

  • OPERATOR ENVIRONMENT
    • Dual high-resolution LCD touchscreen displays
    • Hydraulically folding canopy
    • Air-ride suspension seats
    • Windscreens
  • CAT CONNECT TECHNOLOGY
    • Inboard ski
    • Sonic sensor (averaging or string line)
    • Ground level grade controls and displays
  • CONVEYOR
    • Dust abatement system
    • Remote camera (loading conveyor)
  • ROTOR SYSTEM
    • System K Rotor - Course (25 mm)
    • System K Rotor - Course (18 mm)
    • System K Rotor - Fine (8 mm)
    • System K Rotor - Micro (6 mm)
    • Diamond bits
    • Bit bucket trays
    • Pneumatic bit removal tool
    • Tool holder extractor
    • Rotor turning device
  • POWERTRAIN
    • CE certificate
  • HYDRAULIC SYSTEM
    • Water tank transfer pump
    • Fuel transfer pump
  • SERVICE AND MAINTENANCE
    • High pressure washdown
    • Low pressure washdown
    • Additional spray bars
    • Remote Flash
  • SAFETY AND SECURITY
    • LED work lighting (fixed, pole mounted, magnetic)
    • Warning beacon (fixed or magnetic mount)
    • Truck signal lights
    • Remote camera (rear, front, magnetic mount)
