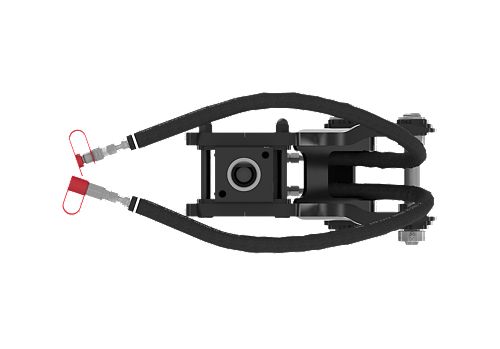

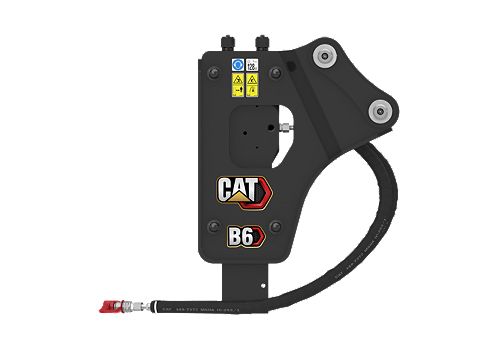

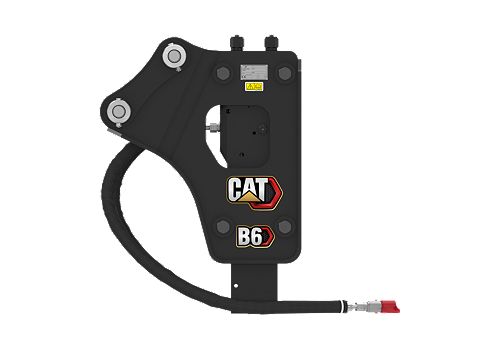

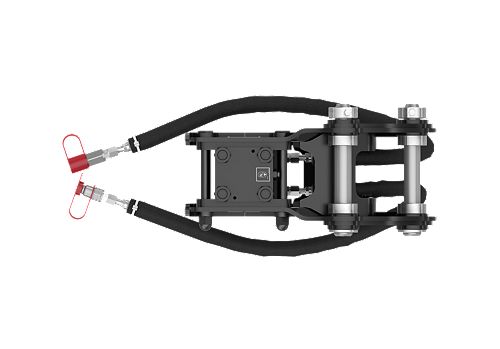

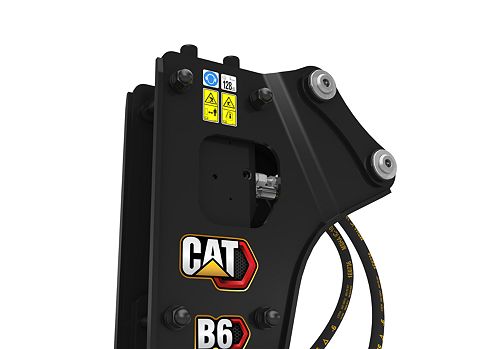

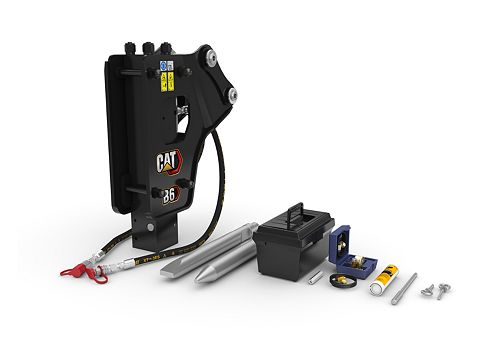

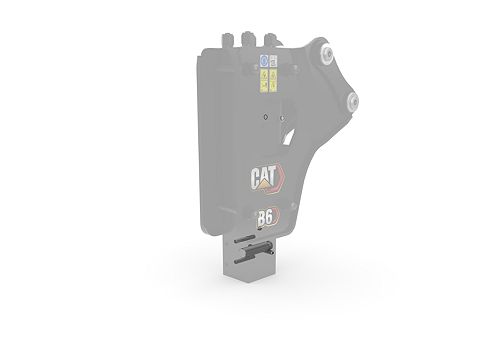

B6 Side Mount

Operating Weight - With Tool
562.2 lb / 255 kg
Energy Class
501.5 ft·lbf / 680 J
Tool Shaft Diameter
2.7 in / 68 mm

Used for demolition and construction applications.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® B2-B8 Side Mount Model Hammers Brochure Cat® B1-B9 Model Hammers Parts Reference Guide
Product Specifications
Operating Weight - With Tool 562.2 lb / 255 kg
Energy Class 501.5 ft·lbf / 680 J
Machine Class 5-6 Ton Mini Excavators
Tool Shaft Diameter 2.7 in / 68 mm
Impact Frequency 500-900 bpm
Minimum Operating Pressure 1775 psi / 12238 kPa
Minimum Carrier Weight 8000.6 lb / 3629 kg
Optimal Hydraulic Flow 40-70 lpm (10.6-18.5 gpm)
Overall Width 14 in / 355 mm
Overall Length 26.4 in / 671 mm
Overall Height 53.3 in / 1353 mm
Height - Without Tool 36.5 in / 926 mm
Sound Level 128 dB
Mounting Bracket Size Pin On

Mini Excavators

Cat® mini excavators deliver power and performance in smaller, more compact sizes to help you work in a variety of applications. Caterpillar offers a range of mini excavators from 1-10 metric tons to meet your jobsite demands. They are ideal for jobs such as landscaping, utilities, residential construction and others where space may be constrained. With exceptional digging, lifting and swing capacity, Cat mini excavators help you get jobs done faster. A spacious cab and ergonomic controls keep you working comfortably, while a variety of Cat attachments such as augers and hammers provide even more versatility.

Model Net Power Operating Weight Dig Depth
305 CR - Tier 4 / Stage V 45 hp / 33.6 kW 12688 lb / 5754 kg 144.5 in / 3670 mm
306 CR 55.9 hp / 41.7 kW 15766 lb / 7150 kg 162 in / 4110 mm
