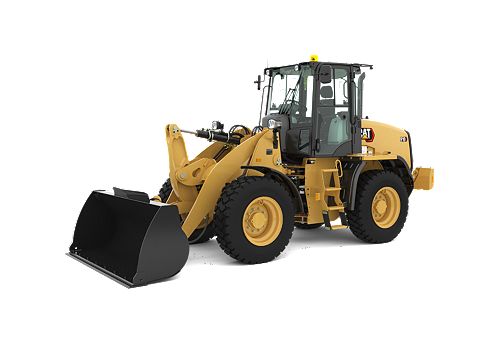

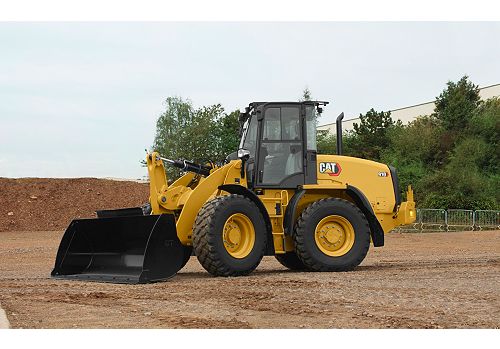

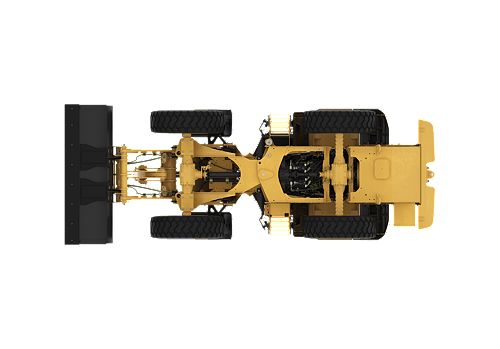

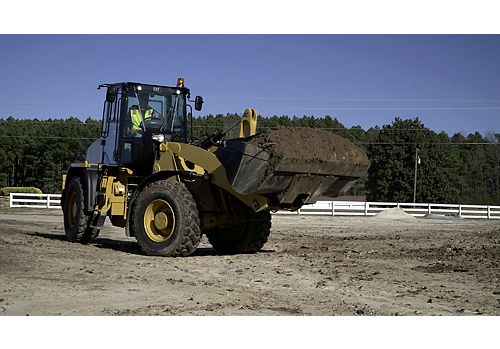

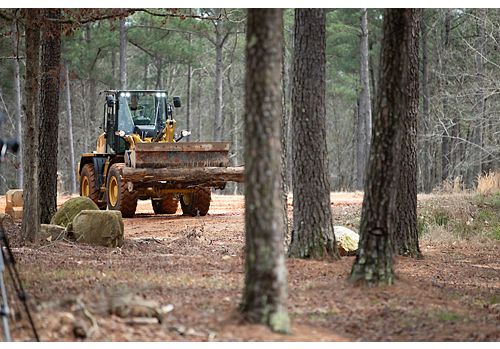

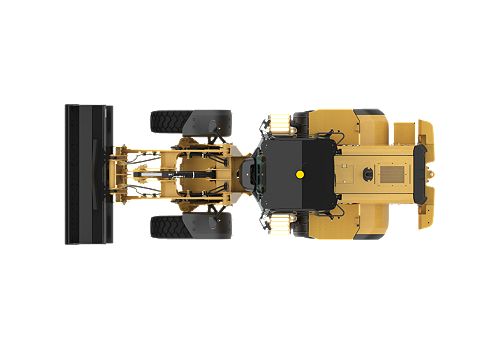

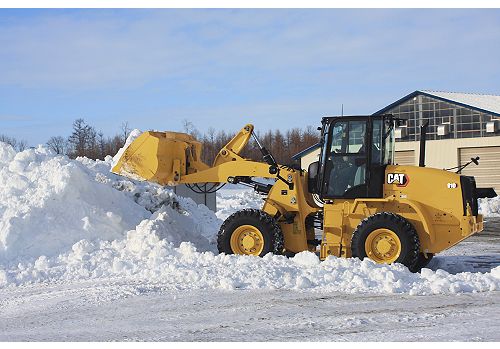

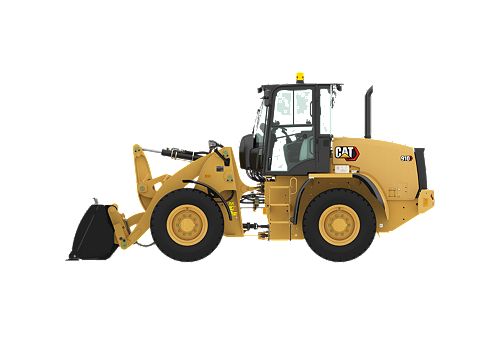

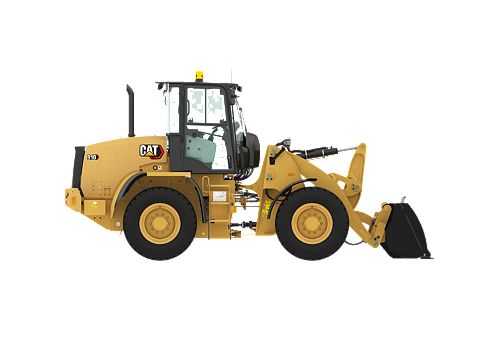

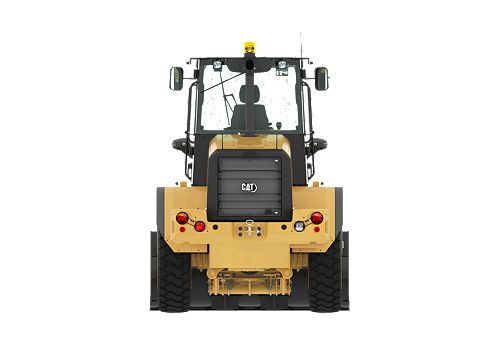

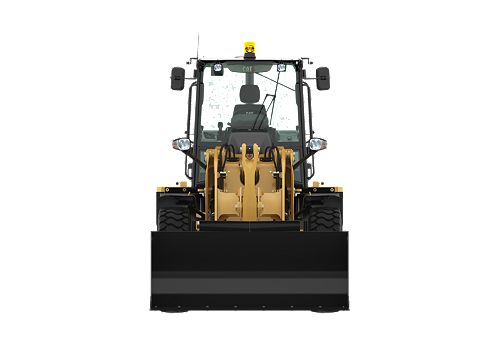

The Cat® 910 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.
| Engine | |
|---|---|
| Maximum Gross Power | 110 HP / 82 kW |
| Bore | 3.86 in / 98 mm |
| Maximum Gross Power - Maximum Engine Speed | 2350 r/min |
| Maximum Net Torque - ISO 9249 | 327 ft·lbf / 443 N·m |
| Maximum Gross Power - SAE J1995 | 111 HP / 83 kW |
| Maximum Gross Torque - SAE J1995 | 335 ft·lbf / 454 N·m |
| Maximum Gross Torque - ISO 14396 | 332 ft·lbf / 450 N·m |
| Rated Net Power - ISO 9249 | 98 HP / 73 kW |
| Rated Net Power - ISO 9249 (DIN) | 99 HP / 73 kW |
| Stroke | 4.72 in / 120 mm |
| Engine Model | Cat C3.6 |
| Maximum Gross Power - ISO 14396 | 110 HP / 82 kW |
| Rated Net Power - Rated Engine Speed | 2200 r/min |
| Note | Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Rated Net Power - SAE J1349 | 99 HP / 74 kW |
| Maximum Net Torque - SAE J1349 | 329 ft·lbf / 446 N·m |
| Displacement | 220 in³ / 3.6 l |
| Maximum Gross Power - ISO 14396 (DIN) | 111 HP / 82 kW |
| Emissions | Engine meets Tier 4 Final/Stage V emission standards. |
| Weights | |
|---|---|
| Operating Weight | 18102 lb / 8109 kg |
| Buckets | |
|---|---|
| Bucket Capacities | 1.3-1.9 m3 (1.7-2.5 yd3) |
| Bucket Capacities - General Purpose | 1.3-1.9 m³ (1.7-2.5 yd³) |
| Bucket Capacities - Light Material | 2.5-3.5 m³ (3.3-4.6 yd³) |
| Steering | |
|---|---|
| Maximum Working Pressure - Steering Pump | 2683 psi / 18500 kPa |
| Steering Articulation Angle - Each Direction | 40 ° |
| Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed | 3.2 s |
| Maximum Flow - Steering Pump | 17 gal/min / 66 l/min |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.75 turns |
| Loader Hydraulic System | |
|---|---|
| Hydraulic Cycle Time - Dump, at Maximum Reach | 1.4 s |
| Hydraulic Cycle Time - Total Cycle Time | 12.5 s |
| Maximum Working Pressure - Implement Pump | 3408 psi / 23500 kPa |
| Relief Pressure - Tilt Cylinder | 4931 psi / 34000 kPa |
| Hydraulic Cycle Time - Rackback | 2.2 s |
| Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure | 3046 psi / 21000 kPa |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.2 s |
| Maximum Flow - Implement Pump | 32 gal/min / 122 l/min |
| Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure | 3046 psi / 21000 kPa |
| Maximum Flow - Implement Pump - 4th Function, Maximum Flow | 24 gal/min / 90 l/min |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow | 24 gal/min / 90 l/min |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 3.7 s |
| Service Refill Capacities | |
|---|---|
| Cooling System | 5.7 gal (US) / 21.5 l |
| Fuel Tank | 43.6 gal (US) / 165 l |
| Hydraulic System - Including Tank | 25.9 gal (US) / 98 l |
| Hydraulic Tank | 14.5 gal (US) / 55 l |
| Transmission | 0.8 gal (US) / 3.2 l |
| Note | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. |
| Axles - Front Center Differential | 2 gal (US) / 7.5 l |
| Axles - Rear Center Differential | 2 gal (US) / 7.5 l |
| Engine Crankcase | 2.6 gal (US) / 10 l |
| Diesel Exhaust Fluid (DEF) Tank | 4.8 gal (US) / 18 l |
| Transmission | |
|---|---|
| Note | *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. |
| Forward and Reverse - Speed Range 3 | 25 mile/h / 40 km/h |
| Forward and Reverse - Speed Range 2* | 12.5 mile/h / 20 km/h |
| Forward and Reverse - Speed Range 1* | 6.3 mile/h / 10 km/h |
| Tires | |
|---|---|
| Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
| Standard Size | 15.5 R25 L2 XTLA |
| Other Choices Include | 17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow |
| Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. |
| Cab | |
|---|---|
| ROPS | ISO 3471:2008 |
| FOPS | EN ISO 3449:2008 (ISO 3449:2005) |
| Note (2) | The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A). |
| Note (3) | The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A). |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (4) | *The measurements were conducted with the cab doors and windows closed. |
| Axles | |
|---|---|
| Front | Fixed; Locking differential (standard) |
| Rear | Oscillating ±11 degrees; Locking differential (Standard) |
