415 IL

Net Power - SAE J1349:2011
69 hp / 52 kW
Operating Weight - Maximum
17637 lb / 8000 kg
Cab - ROPS/FOPS
359 lb / 163 kg

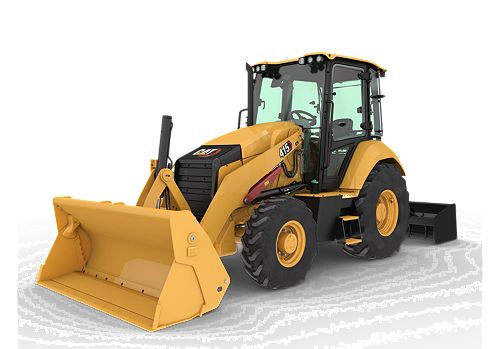

The Cat® 415 IL Industrial Loader delivers great performance, improved fuel efficiency, and a superior hydraulic system.

Loan Calculator Credit Application
Build & Quote
alt 1
415 IL Product Brochure Backhoe Loader Attachments Brochure Options And Accessories Kit Guide for Backhoe Loaders
Engine
Net Power - SAE J1349:2011 69 hp / 52 kW
Engine Model Cat C3.6
Bore 3.86 in / 98 mm
Stroke 4.72 in / 120 mm
Displacement 220 in³ / 3.6 l
Emissions Engine meets U.S. EPA Tier 4 Final emission standards.
Net Peak Torque SAE J1349 308 ft·lbf / 418 N·m
Gross Power - SAE J1995:2014 75 hp / 56 kW
Net Peak Power - 2,200 rpm - SAE J1349 69 hp / 52 kW
Gross Power - ISO 14396 74 hp / 55 kW
Net Torque Rise - 1,200 rpm 86 %
Note No derating required up to 2286 m (7,500 ft).
Net Power - 2,200 rpm - SAE J1349 69 hp / 52 kW
Rated Net Power - 2,200 rpm - ISO 9249 69 hp / 51 kW
Net Peak Power - 2,200 rpm - ISO 9249 69 hp / 51 kW
Weights
Operating Weight - Maximum 17637 lb / 8000 kg
Cab - ROPS/FOPS 359 lb / 163 kg
Air Conditioning 101 lb / 46 kg
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642 lb / 745 kg
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017 lb / 915 kg
Operating Weight - Maximum - ROPS Capacity 17637 lb / 8000 kg
Front Counterweight - Counterweights - Option 3 1015 lb / 460 kg
Rear Counterweight 198 lb / 90 kg
Note *Specifications shown are for machine equipped with 0.76 m³ (1.0 yd³) general purpose loader bucket, 115 kg (255 lb) front counterweight, 80 kg (176 lb) operator, all wheel drive and full fuel tank.
Front Counterweight - Counterweights - Option 1 255 lb / 115 kg
Front Counterweight - Counterweights - Option 2 530 lb / 240 kg
Minimum Operating Weight 14035 lb / 6366 kg
Transmission
Power Shuttle Transmission - Standard - Reverse - 2nd 5.5 mile/h / 8.9 km/h
Power Shuttle Transmission - Standard - Forward - 3rd 13 mile/h / 20 km/h
Power Shuttle Transmission - Standard - Reverse - 3rd 13 mile/h / 20 km/h
Power Shuttle Transmission - Standard - Reverse - 4th 23 mile/h / 36 km/h
Power Shuttle Transmission - Standard - Forward - 4th 23 mile/h / 36 km/h
Power Shuttle Transmission - Standard - Forward - 2nd 5.5 mile/h / 8.9 km/h
Power Shuttle Transmission - Standard - Forward - 1st 3.4 mile/h / 5.4 km/h
Power Shuttle Transmission - Standard - Reverse - 1st 3.4 mile/h / 5.4 km/h
Axle Ratings
Rear Axle - Dynamic 20233 lb / 9186 kg
Front Axle (4WD) - Static 26455 lb / 12000 kg
Front Axle (4WD) - Dynamic 13228 lb / 6000 kg
Rear Axle - Static 50582 lb / 22964 kg
Hydraulic System
Pump Type Variable Flow, Axial Piston
Type Closed Center
System Pressure - Loader 2973 psi / 20500 kPa
System Pressure - Hitch/Box Scraper 2973 psi / 20500 kPa
Pump Capacity at 2,200 rpm 33 gal/min / 125 l/min
Steering
Bore 2.6 in / 65 mm
Stroke 4.2 in / 106 mm
Rod Diameter 1.6 in / 40 mm
Power Steering Hydrostatic
Axle Oscillation 11°
Type Front Wheel
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels 26.8 ft / 8.18 m
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket 36 ft / 10.97 m
Service Refill Capacities
Hydraulic System 23.8 gal (US) / 90 l
Rear Axle 4.4 gal (US) / 16.5 l
Cooling System with Air Conditioning 4.4 gal (US) / 16.5 l
Fuel Tank 42 gal (US) / 160 l
Front Axle (4WD) - Planetaries 0.2 gal (US) / 0.7 l
Engine Oil - With Filter 2.3 gal (US) / 8.8 l
Front Axle (4WD) 2.9 gal (US) / 11 l
Rear Axle - Planetaries 0.4 gal (US) / 1.7 l
Transmission - Power Shuttle - 2WD 4 gal (US) / 15 l
Transmission - Power Shuttle - 4WD 4 gal (US) / 15 l
Hydraulic Tank 10.6 gal (US) / 40 l
Note Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
Tires
Standard Configuration of Front/Rear Tires Front: 12.5 80/16.9; Rear: 16.9-24
Counterweights - Front - Minimum Recommendations
Standard Stick - MP Loader Bucket - 4WD no counterweight
Standard Stick - GP Loader Bucket - 4WD 255 lb / 116 kg

Standard Equipment

  • STANDARD EQUIPMENT
    • Air cleaner
    • Alarm, back-up
    • Audible system fault alarm
    • Box Blade Controls, finger lever pilot
    • Battery, maintenance-free, 880 CCA
    • Battery disconnect switch
    • Brace, lift cylinder
    • Brake, secondary parking
    • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
    • Bucket level indicator
    • Canopy, ROPS/FOPS
    • Coat restraint
    • Coolant/antifreeze, extended life
    • Counterweight, bumper
    • Dome light (cab only)
    • Diagnostic port for engine
    • Differential lock, floor mounted
    • Differential lock, loader joystick
    • Drink holders, two
    • Engine, Cat C3.6, meets Tier 4 Final emission standards, diesel particulate filter
    • Engine enclosure, sound suppression removal panels
    • Face seals, O-ring
    • Fan, suction and guard
    • Fast reversing shuttle, all gears
    • Fenders, rear
    • Filters, spin-on: fuel, engine oil, transmission oil, water separator
    • Filters, bowl and cartridge: hydraulic fluid
    • Flashing hazards/signal lights
    • Floor mat
    • Fuel tank, fully enclosed
    • Fully hinged front grill for cooling package cleaning access
    • Gauge cluster: coolant temperature, fuel level, torque converter temperature, battery voltage
    • Ground level fuel fill
    • High ambient cooling package
    • Hitch, rear 3-point
    • Hood lock, inside cab
    • Hydraulic hose, Cat XT™-3
    • Hydraulic oil cooler
    • Hydraulic oil level sight gauge
    • Hydraulic valve, hydrostatic steering
    • Hydraulic valves, loader 3 function
    • Hydraulic valves, rear 5 function
    • Hydraulics, load sensing with variable displacement piston pump
    • Indicator lights and LCD warnings for system status
    • Instrument panel lights
    • Key start/stop system
    • LCD screen with machine system information
    • Lights, working (2 front, 2 rear)
    • Loader, self-leveling, return-to-dig and transmission disconnect switch
    • Loader, single tilt
    • Mirror, rearview
    • Open circuit breather
    • Power receptacle, 12 volt, 2 internal, 2 external roof mounted
    • Power steering, hydrostatic
    • Seat belt, retractable, 75 mm (3 in)
    • Steering knob
    • Seat, mechanical suspension, fabric or vinyl cover, with armrest
    • Starting system, glow plugs
    • Steering, hydrostatic
    • Storage compartment, lockable
    • Storage tray
    • Stop and tail lights
    • Tires, 12.5/80-18 front, 16.9-24 rear
    • Toolbox, external, lockable
    • Torque converter
    • Throttle, foot, electronic
    • Transmission, four speed, syncromesh
    • Transmission neutralizer switch
    • Transport tie-downs
    • Four Wheel Drive
    • Warning horn, electric
    • Product Link™, cellular, PLE643
    • Product Link, dual mode, PLE683

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Battery, additional, 880 CCA
    • Box, blade/scarifier
    • Cab, standard with air conditioning
    • Cold weather fuel (–30° C/–22° F)
    • Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
    • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
    • Counterweight, rear 90 kg (198 lb)
    • Dual tilt rear hitch
    • Face fan
    • Fenders, front with integral steps
    • Radio and CD player, Bluetooth®
    • Ride Control
    • Rotating beacon, magnetic mount
    • Security system keypad
    • Vandalism protection, gauge cover
    • Work Tool Attachments such as buckets, forks, and material handling arms. See your Cat dealer for more information.
    • LED lights, working (2 front, 2 rear)
    • Security system, Bluetooth
    • Security System, operator display
    • Side mirrors, cab, external
    • Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

General Purpose Buckets

Load, carry, dump and perform general clean-up work.

Model Width Height Weight
0.76 m3 (1.0 yd3), Pin On 89.1 in / 2262 mm 29.8 in / 758 mm 776 lb / 352 kg
0.76 m3 (1.0 yd3), Pin On, Bolt-On Cutting Edge 89.1 in / 2262 mm 30.6 in / 777 mm 975.5 lb / 442.5 kg
1.0 m3 (1.3 yd3), Pin On 89.1 in / 2262 mm 33.2 in / 843 mm 965 lb / 437.7 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge 89.1 in / 2262 mm 33.9 in / 862 mm 1021 lb / 463.1 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Teeth 89.1 in / 2262 mm 34.3 in / 871 mm 966.1 lb / 438.2 kg
1.0 m3 (1.3 yd3), Pin On 94.7 in / 2406 mm 33 in / 839 mm 988.1 lb / 448.2 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge 94.7 in / 2406 mm 33.8 in / 858 mm 1179 lb / 534.79 kg
1.0 m3 (1.31 yd3), IT Coupler 94.7 in / 2406 mm 39.7 in / 1009 mm 979.1 lb / 444.1 kg
1.0 m3 (1.3 yd3), Pin On 94.7 in / 2406 mm 33 in / 839 mm 972.2 lb / 441 kg
1.1 m3 (1.4 yd3), Pin On 89.1 in / 2262 mm 34.8 in / 884 mm 1011.9 lb / 459 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge 89.1 in / 2262 mm 35.5 in / 903 mm 1162 lb / 527.09 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth 89.1 in / 2262 mm 35.9 in / 911 mm 1063.1 lb / 482.2 kg
1.14 m3 (1.5 yd3), IT Coupler 94.7 in / 2406 mm 40.5 in / 1029 mm 2270.8 lb / 1030 kg
1.15 m3 (1.5 yd3), Pin On 94.7 in / 2406 mm 34.8 in / 884 mm 1056 lb / 479 kg
1.15 m3 (1.5 yd3), Pin On, Bolt-On Cutting Edge 94.7 in / 2406 mm 39.6 in / 1007 mm 1241 lb / 562.9 kg
1.15 m3 (1.5 yd3), Pin On, Bolt-On Teeth 94.7 in / 2406 mm 35.9 in / 911 mm 1112.2 lb / 504.5 kg
1.34 m3 (1.75 yd3), Pin On 95.8 in / 2434 mm 39.4 in / 1002 mm 1472.9 lb / 668.09 kg
1.34 m3 (1.75 yd3), Pin On 96 in / 2438 mm 42.6 in / 1081 mm 2226.7 lb / 1010 kg
1.53 m3 (2.0 yd3), Pin On 96 in / 2438 mm 43.4 in / 1103 mm 2403 lb / 1090 kg

Multi-Purpose Buckets

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Model Height Weight
1.03 m3 (1.35 yd3), Pin On 38.8 in / 985 mm 1593 lb / 722.59 kg
1.03 m3 (1.35 yd3), Pin On 56.8 in / 1443 mm 1819 lb / 825.09 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Cutting Edge 57.6 in / 1462 mm 1973.1 lb / 895 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Cutting Edge 39.5 in / 1004 mm 1742.1 lb / 790.2 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Teeth 38.8 in / 985 mm 1642 lb / 744.79 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Teeth 57.9 in / 1470 mm 1873.9 lb / 850 kg
1.0 m3 (1.3 yd3), IT Coupler 38.9 in / 988 mm 1548.9 lb / 702.59 kg
1.1 m3 (1.4 yd3), Pin On 38.8 in / 985 mm 1655 lb / 750.7 kg
1.1 m3 (1.4 yd3), Pin On 56.8 in / 1443 mm 2002.9 lb / 908.5 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge 57.6 in / 1462 mm 2099 lb / 952.09 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge 39.5 in / 1004 mm 1856.1 lb / 841.9 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth 57.9 in / 1470 mm 1944 lb / 881.79 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth 39.8 in / 1011 mm 1722 lb / 781.09 kg
1.1 m3 (1.4 yd3), IT Coupler 38.9 in / 988 mm 1612 lb / 731.2 kg
1.14 m3 (1.5 yd3), Pin On 41.7 in / 1059 mm 2104.9 lb / 954.79 kg
1.14 m3 (1.5 yd3), Pin On 41.7 in / 1059 mm 2455.9 lb / 1114 kg
