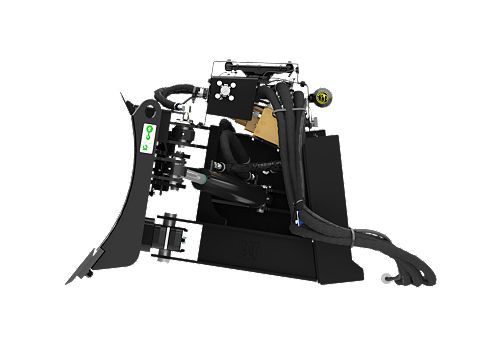

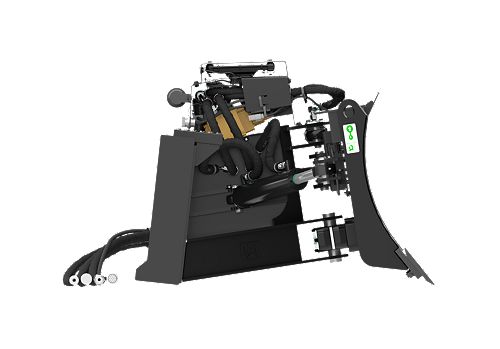

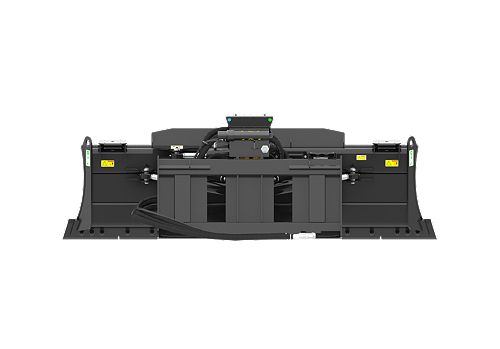

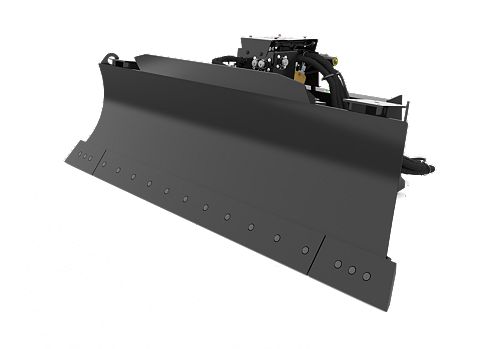

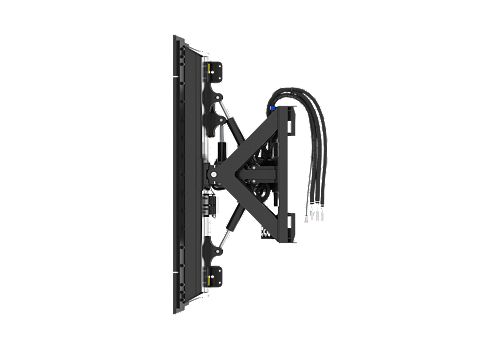

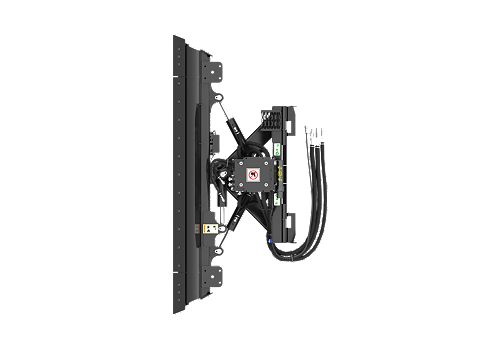

2337 mm (92 in), Smart
- Blade Width
- 92 in / 2337 mm
- Width - Fully Angled
- 80.7 in / 2049 mm
- Blade Height
- 24.4 in / 619 mm
Designed for rough and finish grading in dirt, gravel, and light dozing.
| Product Specifications | |
|---|---|
| Blade Width | 92 in / 2337 mm |
| Width - Fully Angled | 80.7 in / 2049 mm |
| Maximum Blade Angle - Right/Left of Center | 30 degrees |
| Tilt Angle Range +/- | 10 degrees |
| Blade Height | 24.4 in / 619 mm |
| Overall Height | 30.9 in / 785 mm |
| Length | 40.5 in / 1028 mm |
| Weight | 1164 lb / 528 kg |
| Cutting Edge Thickness | 0.6 in / 16 mm |
| Required Hydraulics | High Flow XPS |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) |
| Interface Type | Skid Steer Coupler |
Compact Track Loaders
| Model | Gross Power - SAE J1995 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 279D3 | 74.3 hp / 55.4 kW | 2220 lb / 1010 kg | 10095 lb / 4579 kg |
| 289D3 | 74.3 hp / 55.4 kW | 2890 lb / 1315 kg | 10688 lb / 4848 kg |
| 299D3 | 98 hp / 73 kW | 3480 lb / 1580 kg | 11464 lb / 5200 kg |
| 299D3 XE | 110 hp / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 hp / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
