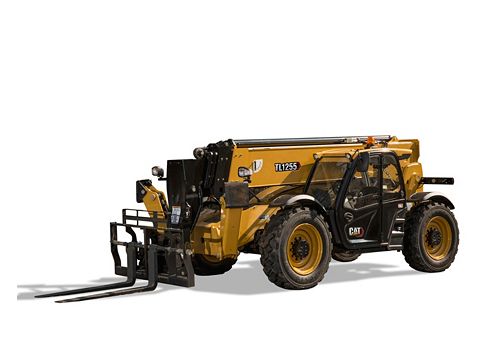

TL1255

Specifications
Equipment

Engine
Engine Model	Cat® C3.6L*
Gross Power - Basic	134 HP / 100 kW
Note	*Meets U.S. EPA Tier 4 Final emission standards.

Operating Specifications
Rated Load Capacity	12000 lb / 5443 kg
Maximum Lift Height	54.9 ft / 16.7 m
Maximum Forward Reach	42 ft / 12.8 m
Top Travel Speed	21 mile/h / 33.8 km/h
Maximum Lift Height (o/r Down)	54.9 ft / 16.7 m
Drawbar Pull - Loaded	26510 lb / 117.9 kN
Turning Radius - Over Tires	14.1 ft / 4.3 m
Capacity at Maximum Height (o/r Down)	5000 lb / 2268 kg
Capacity at Maximum Reach (o/r Down)	3500 lb / 1587 kg
Frame Leveling	10°
Operating Weight	34182 lb / 15505 kg
Maximum Rated Load Capacity	12000 lb / 5443 kg

Hydraulic System
Pump Type	Variable displacement load sensing axial piston pump
Auxiliary Hydraulic Flow	25 gal/min / 95 l/min
Auxiliary Hydraulic Pressure	3307 psi / 228 bar

Service Refill Capacities
Fuel Tank	38 gal (US) / 145 l
Diesel Exhaust Fluid (DEF) Tank	5.7 gal (US) / 21.5 l
Hydraulic System	50 gal (US) / 189 l

Axles
Types (1)	Trunnion mounted planetary 55-degree steer axles
Types (2)	High bias limited slip differential on front axle

Braking System
Parking Brakes	Wet disc, spring applied hydraulic release on front axle
Service Brakes	Inboard wet disc brakes on front and rear axles

Transmission Speeds
Forward	4 Speeds
Reverse	3 Speeds

Tires
Standard	400/75-28 Duraforce Air
Optional	400/75-28 Duraforce Foam; 360/85-28 Telemaster Solid; 17.5 × 25 16PR Air; 17.5 × 25 12PR Foam; 400/75-28 Non-Marking Air; 400/75-28 Non-Marking Foam

Boom Performance
Boom Up	17 s
Boom Down	14.4 s
Tele In	15.3 s
Tele Out	19.7 s

Optional Work Tool Attachments
Carriages: Standard Tilt - Option 1	50 in / 1270 mm
Truss with Winch - Option 1	3 ft / 0.9 m
Carriages: Swing, 100°	72 in / 1829 mm
Carriages: Dual Hydraulic Fork Positioner - Option 2	72 in / 1829 mm
Carriages: Dual Hydraulic Fork Positioner - Option 1	50 in / 1270 mm
Buckets: General Purpose - Option 1	1.3 yd³ / 1 m³
Truss Booms - Option 1	12 ft / 3.7 m
Carriages: Standard Tilt - Option 3	72 in / 1829 mm
Buckets: Multi Purpose	1.3 yd³ / 1 m³
Forks: Pallet - Option 2	60 in / 1525 mm
Note	*For use with 1525 mm (60 in) forks or larger
Buckets: General Purpose - Option 2	2 yd³ / 1.5 m³
Fork Extensions*	90 in / 2286 mm
Forks: Pallet - Option 1	48 in / 1220 mm
Coupler	Hydraulic IT Coupler (Includes Auxiliary Electronics)
Material Handling Arm	Adjustable 2-4 m (Adjustable 6.7-13.2 ft)
Forks: Pallet - Option 3	72 in / 1829 mm
Carriages: Side Tilt - Option 2	72 in / 1829 mm
Forks: Block/Cubing	48 in / 1220 mm
Truss with Winch - Option 2	12 ft / 3.7 m
Fork Mounted - Hook	Lifting Hook
Carriages: Side Shift	48 in / 1220 mm
Truss Booms - Option 2	15 ft / 4.6 m
Buckets: Grapple	1.7 yd³ / 1.3 m³
Fork Mounted - Hopper	Trash Hopper
Carriages: Side Tilt - Option 1	50 in / 1270 mm
Carriages: Standard Tilt - Option 2	60 in / 1524 mm
Fork Mounted - Truss Boom	Adjustable 2.1-3.6 m (Adjustable 7-12 ft)
Fork Mounted - Work Platform	1220 mm × 2438 mm (4 ft × 8 ft)

Standard Equipment

TELESCOPIC BOOM
- Boom angle indicator
ELECTRICAL
- Alternator, 60 amp, 12 volt
- Battery, 12 volt, 1000 CCA
- Horn
- Alarm, backup
OPERATOR STATION
- Canopy, ROPS/FOPS
- Joystick, single electronic
- Adjustable joystick wristrest
- Grab bars for easy entry
- Seat - vinyl, suspension with Cat logo
- Steering wheel spinner knob
- Floor mat - heavy duty
- Left side rear view mirror
- Service door, cab air intake filter, fuel fill, hydraulic fill, level indicator, fuse panel and washer fill
- Instruments - volt meter, hourmeter, engine oil pressure gauge, water temperature gauge. All gauges protected by clear acrylic cover.
- Park Brake with indicator light
- Steering Wheel with Cat logo
- Cat keys and locks
- Brakes - wet disc service
- Belt, seat - 3" wide
POWER TRAIN
- Engine, Cat C3.6L - 100 kW (134 hp) gross horsepower
- Thermal starting aid
- Transmission, Cat PG145 6 speed Power-shift, 4-speed forward, 3-speed reverse
- Cat filters, hoses and couplings
- Axles - Dana
- Steering - 4 wheel
- Drive - 4 wheel
STRUCTURE
- Chassis, frame level up to 10 degrees when operating in rough, uneven terrain
- Cat IT Coupler
ANTI-FREEZE
- Coolant - Anti-freeze, 50/50 Mix
TIRES
- Tires - 370/75-28 Duraforce Air
OTHER EQUIPMENT
- Integrated lift and tie down points
- Standard Cat color paint
- Auxillary hydraulics for auxillary attachments (one function)

Optional Equipment

TELESCOPIC BOOM
- Hydraulic IT Coupler (includes Auxiliary Electrics)
ELECTRICAL
- Work Light Group: 3 Cab mounted Lights -- 2 forward, 1 rearward; 1 reversing light; 2 Boom mounted Lights, 1 rotating beacon
- Engine heater block
- Heater - open cab
- Road Light Group -- Headlights, Brake Lights, Turn Signals
OPERATOR STATION
- Air conditioning
- Single Joystick - with Rocker Switch
- EROPS - Cab Enclosure (Door, Safety Glass Windows, Front Windshield Wiper, Heater & Defroster Fan)
- Skylight Wiper
- Brick guard - Front and top.
TIRES
- Tires - 370/75-28 Duraforce Foam Fill
- Tires - 315/95-28 Telemaster Solid
- Tire - 14.00-24 16PR Air
- Tire - 14.00-24 12 PR Foam
- Tires - 370/75-28 Non-Marking Air
OTHER EQUIPMENT
- Fenders
- Tow Hook - Pintle Type
- Artic package - Package includes: 2400 AMP starter, 1000 watt hydraulic reservoir heater, 500 watt engine oil-pan heater, Dual maintenance free, 1375 CCA gel cell batteries, 160 watt battery heating blanket, 1000 watt engine block heater
WORK TOOLS
- Carriage - side shift, 50 in. (available from factory)
- Lifting Hook - fork mounted (available from factory)
- Truss Broom
- Carriage - standard tilt, 50 in. (available from factory)
- Carriage - standard rotate, 50 in. (available from factory)
- Carriage - swing, 72 in., 100 degrees, 9,000 lb. capacity, 5,000 lb. swung (available from factory)
- Pallet Forks - two 60 in, 2 in x 6 in, 9,000 lb. capacity per pair (available from factory)
- Pallet Forks - two 48 in, 2.36 in x 4 in, 9,000 lb. capacity per pair (available from factory)
- Cubing Forks - two 48 in, 2 in x 2 in, 3,800 lb. capacity per pair (available from factory)
- Bucket - General Purpose 1.3 Cu. Yd.
- Bucket - Material Handling 1.95 Cu. Yd.
- Bucket - Multi-Purpose, 1.3 Cu. Yd.
- Work Platform -- 8 ft x 4 ft with maximum capacity of 1,000 lbs. Includes enclosed fork pockets, side entry/exit gate, removable front rail and wire mesh floor

Standard Equipment

Optional Equipment
