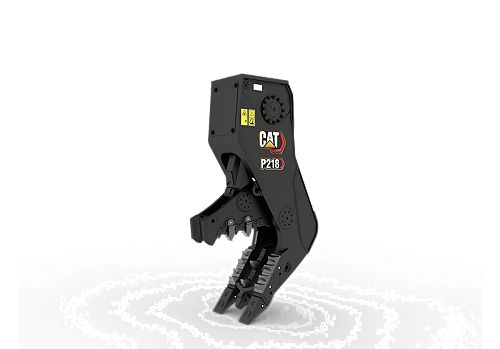

P218 Secondary Pulverizer
- Cycle Time - Open
- 1.8 s
- Cycle Time - Close
- 1.2 s
- Crushing Force - Primary Cutter
- 351 Sh Ton / 3125 kN
Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
| Performance | |
|---|---|
| Cycle Time - Open | 1.8 s |
| Cycle Time - Close | 1.2 s |
| Crushing Force - Primary Cutter | 351 Sh Ton / 3125 kN |
| Crushing Force - Tip | 107 Sh Ton / 955 kN |
| Crushing Force - Primary Tooth | 192 Sh Ton / 1710 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 4786 psi / 33000 kPa |
| Jaw Circuit - Max. Oil Flow | 59 gal/min / 225 l/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 30.3 in / 770 mm |
| Cutter Length | 5.9 in / 150 mm |
| Jaw Opening - Maximum | 42.1 in / 1070 mm |
| Jaw Width - Fixed | 24.4 in / 620 mm |
| Jaw Width - Moveable | 13.2 in / 335 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 97 in / 2465 mm |
| Height | 57.1 in / 1450 mm |
| Width | 24.4 in / 620 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 4409 lb / 2000 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 18000 kg (39700 lb) |
| Excavator Maximum | 25000 kg (55100 lb) |
