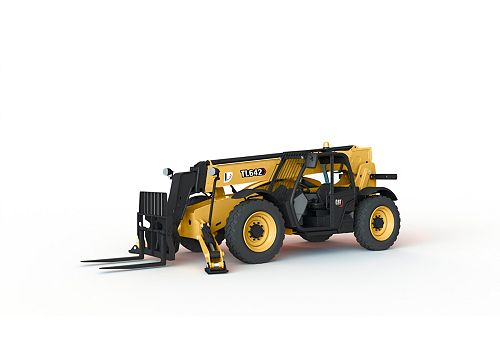

TL642 w/Stabilizers

Rated Load Capacity: 6500 lb / 2948 kg
Maximum Lift Height: 42 ft / 12.8 m
Operating Weight: 22928 lb / 10400 kg

Cat Telehandlers offer performance and versatility.

TL642 with Stabilizers Product Brochure (N Am)

Specifications
Equipment

Engine
Engine Model	Cat® C3.6L
Gross Power - Basic	73.7 hp / 55 kW
Note	Meets U.S. EPA Tier 4 Final emission standards.

Weights
Operating Weight	22928 lb / 10400 kg

Operating Specifications
Rated Load Capacity	6500 lb / 2948 kg
Maximum Lift Height	42 ft / 12.8 m
Load at Maximum Height - Stabilizers Down	6500 lb / 2948 kg
Maximum Forward Reach	30 ft / 9.1 m
Load at Maximum Reach - Stabilizers Down	1700 lb / 771 kg
Top Travel Speed	19 mile/h / 31 km/h

Dimensions
Height	8 ft / 2430 mm
Width	8 ft / 2470 mm
Wheel Base	11.25 ft / 3430 mm
Length - Fork Face	18.5 ft / 5639 mm
Ground Clearance	17 in / 432 mm
Turning Radius - Over Tires	12 ft / 3658 mm

Tires
Standard	370/75-28 Duraforce Air
Optional (1)	370/75-28 Duraforce Foam Fill
Optional (2)	315/95-28 Telemaster Solid
Optional (3)	13.00-24 16PR Air
Optional (4)	13.00-24 12PR Foam
Optional (5)	370/75-28 Non-Marking Air
Optional	370/75-28 Non-Marking Foam

Hydraulic System
Pump Type	Single-section

Service Refill Capacities
Fuel Tank	38.3 gal (US) / 145 l
Hydraulic System	42 gal (US) / 158 l

Boom Performance
Boom Up	15.5 s
Boom Down	10.7 s
Tele In	11.8 s
Tele Out	17 s
Drawbar Pull - Basic	20670 lb / 92 kN

Braking System
Parking Brake	Spring-applied hydraulic release on front axle

Brakes
Features	Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle

Operator Station
Features	Vinyl suspension seat, single electronic joystick, spacious interior, ergonomic cab

Instrumentation
Features	Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge

Work Tools
Cubing Forks	[2] 1220 mm, 50 mm × 50 mm ([2] 48 in, 2 in × 2 in)
Carriages - Side Shift	50 in / 1270 mm
Pallet Forks - Option 1	[2] 1220 mm, 60 mm × 125 mm ([2] 48 in, 2.36 in × 5 in)
Carriages - Swing	100°, 1829 mm, 2948 kg Capacity, 2268 kg Swung (100°, 72 in, 6,500 lb Capacity, 5,000 lb Swung)
Carriages - Standard Tilt	50 in / 1270 mm
Lumber Forks - Option 1	[2] 1525 mm, 45 mm × 180 mm ([2] 60 in, 1.75 in × 7 in)
Pallet Forks - Option 2	[2] 1220 mm, 60 mm × 100 mm ([2] 48 in, 2.36 in × 4 in)
Carriages - Dual Fork Positioning	50 in / 1270 mm
Pallet Forks - Option 3	[2] 1829 mm, 60 mm × 150 mm ([2] 72 in, 2.36 in × 6 in)

Standard Equipment

TELESCOPIC BOOM
- Boom angle indicator
ELECTRICAL
- Alternator, 60 amp, 12 volt
- Battery, 12 volt, 1000 CCA
- Horn
- Alarm, backup
OPERATOR STATION
- Canopy, ROPS/FOPS
- Joystick, single electronic
- Adjustable joystick wristrest
- Low step, grab bars for easy entry
- Seat - vinyl, suspension with Cat logo
- Steering wheel spinner knob
- Floor mat - heavy duty
- Left side rear view mirror
- Service door, cab air intake filter, fuel fill, hydraulic fill, level indicator, fuse panel and washer fill
- Instruments - volt meter, hourmeter, engine oil pressure gauge, water temperature gauge. All gauges protected by clear acrylic cover.
- Park Brake with indicator light
- Steering Wheel with Cat logo
- Cat keys and locks
- Brakes - wet disc service
POWER TRAIN
- Engine,Cat® C3.6L (73.7 hp)
- Thermal starting aid
- Transmission, 4-speed forward, 3-speed reverse
- Cat filters, hoses and couplings
- Axles - Dana
- Steering - 4 wheel
- Parking brake with indicator light
- Drive - 4 wheel
STRUCTURE
- Chassis, frame level up to 10 degrees when operating in rough, uneven terrain
- Cat IT Coupler
ANTI-FREEZE
- Coolant - Anti-freeze, 50/50 Mix
TIRES
- Tires - 370/75-28 Duraforce Air
OTHER EQUIPMENT
- Integrated lift and tie down points
- Standard Cat color paint
- Auxillary hydraulics for auxillary attachments (one function)

Optional Equipment

TELESCOPIC BOOM
- Hydraulic IT Coupler (includes Auxiliary Electrics)
ELECTRICAL
- Work Light Group: 2 Cab mounted headlights -- 2 forward, 1 rearward; 1 Reversing Light; 2 Boom Mounted Lights, 1 Rotating Beacon
- Engine heater block
- Heater - open cab
- Road Light Group -- Headlights, Brake Lights, Turn Signals
OPERATOR STATION
- Air conditioning
- Auxiliary hydraulics for Hydraulic Work Tools (one function)
- Single Joystick - with Rocker Switch
- EROPS - Cab Enclosure (Door, Safety Glass Windows, Front Windshield Wiper, Heater & Defroster Fan)
- Skylight Wiper
- Brick Guard - Top and front.
TIRES
- Tires - 13.00-24 12PR Foam
- Tires - 13.00-24 16PR Air
- Tires - 370/75-28 Duraforce Foam Fill
- Tires - 370/75-28 Non-Marking Air
- Tires - 315/95-28 Telemaster Solid
OTHER EQUIPMENT
- Fenders
- Tow Hook - Pintle Type
- Instant Hook - 4000 lb capacity, boom head mounted winch
- Outriggers
- Artic package - Package includes: 2400 AMP starter, 1000 watt hydraulic reservoir heater, 500 watt engine oil-pan heater, Dual maintenance free, 1375 CCA gel cell batteries, 160 watt battery heating blanket, 1000 watt engine block heater.
WORK TOOLS
- Access Work Platform - 8 ft x 4 ft; 1,000 maximum capacity (available from factory)
- Carriage - side shift, 50 in. (available from factory)
- Lifting Hook - fork mounted (available from factory)
- Truss Broom
- Carriage - standard tilt, 50 in. (available from factory)
- Carriage - wide tilt, 72 in. (available from factory)
- Carriage - standard rotate, 50 in. (available from factory)
- Carriage - swing, 72 in., 100 degrees, 6000 lb capacity, 5000 lb swung (available from factory)
- Pallet Forks - two 60 in, 2 in x 6 in, capacity per pair 6600 lb (available from factory)
- Pallet Forks - two 48 in, 2.36 in x 4 in, capacity per pair 6600 lb (available from factory)
- Cubing Forks - two 48 in, 2 in x 2 in, capacity per pair 3800 lb (available from factory)
- Bucket - General Purpose 1.3 Cu. Yd.
- Bucket - Material Handling 1.95 Cu. Yd.
- Bucket - Multi-Purpose, 1.3 Cu. Yd.
