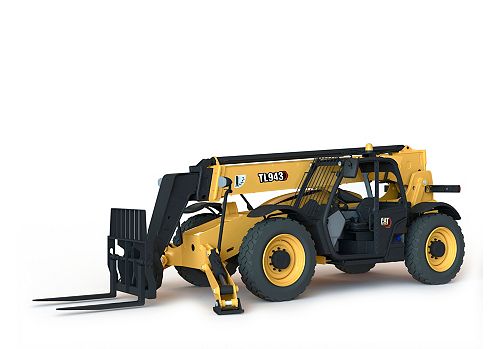

TL943 w/Stabilizers

Rated Load Capacity: 9000 lb / 4082 kg
Maximum Lift Height: 43 ft / 13.1 m
Operating Weight: 26852 lb / 12180 kg

Cat Telehandlers offer performance and versatility.

TL943 with Stabilizers Small Product Brochure

Specifications
Equipment

Engine
Engine Model	Cat® C3.6L
Gross Power - Basic	73.7 hp / 55 kW
Gross Power - Premium	111 hp / 83 kW
Note	*Meets U.S. EPA Tier 4 Final emission standards.

Weights
Operating Weight	26852 lb / 12180 kg

Operating Specifications
Rated Load Capacity	9000 lb / 4082 kg
Maximum Lift Height	43 ft / 13.1 m
Load at Maximum Height - Stabilizers Down	7000 lb / 3175 kg
Maximum Forward Reach	31 ft / 9.4 m
Load at Maximum Reach - Stabilizers Down	2700 lb / 1225 kg
Top Travel Speed	18 mile/h / 29 km/h

Dimensions
Height	8.16 ft / 2490 mm
Width	8 ft / 2470 mm
Wheel Base	11.25 ft / 3343 mm
Length - Fork Face	20.5 ft / 6248 mm
Ground Clearance	17 in / 432 mm
Turning Radius - Over Tires	12 ft / 3.7 m

Tires
Standard	370/75-28 Duraforce Air
Optional (1)	370/75-28 Duraforce Foam Fill
Optional (2)	315/95-28 Telemaster Solid
Optional (3)	14.00-24 16PR Air
Optional (4)	14.00-24 12PR Foam
Optional (5)	370/75-28 Non-Marking Air
Optional	370/75-28 Non-Marking Foam

Service Refill Capacities
Fuel Tank	38 gal (US) / 145 l
Hydraulic Tank	49 gal (US) / 184 l

Boom Performance
Boom Up	9.9 s
Boom Down	8.5 s
Tele In	14.6 s
Tele Out	14.5 s
Drawbar Pull - Basic	22619 lb / 100.65 kN
Drawbar Pull - Premium	25589 lb / 114 kN

Braking System
Parking Brake	Spring-applied hydraulic release on front axle

Brakes
Features	Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle

Operator Station
Features	Vinyl suspension seat, single electronic joystick, spacious interior, ergonomic cab

Instrumentation
Features	Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge

Work Tools
Pallet Forks - Option 2	[2] 1220 mm, 60 mm × 100 mm ([2] 48 in, 2.36 in × 4 in)
Cubing Forks	[2] 1220 mm, 50 mm × 50 mm ([2] 48 in, 2 in × 2 in)
Pallet Forks - Option 1	[2] 1220 mm, 60 mm × 125 mm ([2] 48 in, 2.36 in × 5 in)
Carriages - Dual Fork Positioning	50 in / 1270 mm
Carriages - Swing	100°, 1829 mm, 2948 kg Capacity, 2268 kg Swung (100°, 72 in, 6,500 lb Capacity, 5,000 lb Swung)
Carriages - Side Shift	50 in / 1270 mm
Lumber Forks - Option 1	[2] 1525 mm, 45 mm × 180 mm ([2] 60 in, 1.75 in × 7 in)
Carriages - Standard Tilt	50 in / 1270 mm
Pallet Forks - Option 3	[2] 1829 mm, 60 mm × 150 mm ([2] 72 in, 2.36 in × 6 in)

Standard Equipment

TELESCOPIC BOOM
- Boom angle indicator
ELECTRICAL
- Alternator, 60 amp, 12 volt
- Battery, 12 volt, 1000 CCA
- Horn
- Alarm, backup
OPERATOR STATION
- Canopy, ROPS/FOPS
- Joystick, single electronic
- Adjustable joystick wristrest
- Low step, grab bars for easy entry
- Seat - vinyl, suspension with Cat logo
- Steering wheel spinner knob
- Floor mat - heavy duty
- Left side rear view mirror
- Service door, cab air intake filter, fuel fill, hydraulic fill, level indicator, fuse panel and washer fill
- Instruments - volt meter, hourmeter, engine oil pressure gauge, water temperature gauge. All gauges protected by clear acrylic cover.
- Park Brake with indicator light
- Steering Wheel with Cat logo
- Cat keys and locks
- Brakes - wet disc service
- Belt, seat - 3" wide
POWER TRAIN
- Engine, Cat C3.6L - 55kW (73.7 hp) or 83kW (111hp) gross horsepower
- Thermal starting aid
- Transmission, Cat PG145 6 speed Power-shift, 4-speed forward, 3-speed reverse
- Cat filters, hoses and couplings
- Axles - Dana
- Steering - 4 wheel
- Drive - 4 wheel
STRUCTURE
- Chassis, frame level up to 10 degrees when operating in rough, uneven terrain
- Cat IT Coupler
ANTI-FREEZE
- Coolant - Anti-freeze, 50/50 Mix
TIRES
- Tires - 370/75-28 Duraforce Air
OTHER EQUIPMENT
- Integrated lift and tie down points
- Standard Cat color paint
- Auxillary hydraulics for auxillary attachments (one function)

Optional Equipment

TELESCOPIC BOOM
- Hydraulic IT Coupler (includes Auxiliary Electrics)
ELECTRICAL
- Work Light Group: 3 Cab mounted Lights -- 2 forward, 1 rearward; 1 reversing light; 2 Boom mounted Lights, 1 rotating beacon
- Engine heater block
- Heater - open cab
- Road Light Group -- Headlights, Brake Lights, Turn Signals
OPERATOR STATION
- Air conditioning
- Single Joystick - with Rocker Switch
- EROPS - Cab Enclosure (Door, Safety Glass Windows, Front Windshield Wiper, Heater & Defroster Fan)
- Skylight Wiper
- Brick guard - Front and top.
TIRES
- Tires - 370/75-28 Duraforce Foam Fill
- Tires - 315/95-28 Telemaster Solid
- Tire - 14.00-24 16PR Air
- Tire - 14.00-24 12 PR Foam
- Tires - 370/75-28 Non-Marking Air
OTHER EQUIPMENT
- Fenders
- Tow Hook - Pintle Type
- Artic package - Package includes: 2400 AMP starter, 1000 watt hydraulic reservoir heater, 500 watt engine oil-pan heater, Dual maintenance free, 1375 CCA gel cell batteries, 160 watt battery heating blanket, 1000 watt engine block heater
WORK TOOLS
- Carriage - side shift, 48 in. (available from factory)
- Lifting Hook - fork mounted (available from factory)
- Truss Broom
- Carriage - standard tilt, 50 in. (available from factory)
- Carriage - standard rotate, 50 in. (available from factory)
- Carriage - swing, 72 in., 100 degrees, 9,000 lb. capacity, 5,000 lb. swung (available from factory)
- Pallet Forks - two 60 in, 2 in x 6 in, 9,000 lb. capacity per pair (available from factory)
- Pallet Forks - two 48 in, 2.36 in x 4 in, 9,000 lb. capacity per pair (available from factory)
- Cubing Forks - two 48 in, 2 in x 2 in, 3,800 lb. capacity per pair (available from factory)
- Bucket - General Purpose 1.3 Cu. Yd.
- Bucket - Material Handling 1.95 Cu. Yd.
- Bucket - Multi-Purpose, 1.3 Cu. Yd.
- Work Platform -- 8 ft x 4 ft with maximum capacity of 1,000 lbs. Includes enclosed fork pockets, side entry/exit gate, removable front rail and wire mesh floor
