3048 mm (120 in), Fusion™ Coupler
- Width
- 120 in / 3048 mm
- Weight
- 4936.1 lb / 2239 kg
- Overall Height
- 73.8 in / 1874 mm

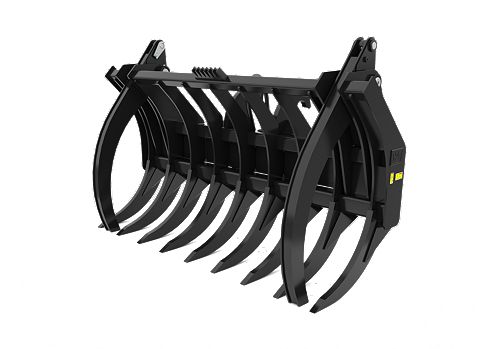

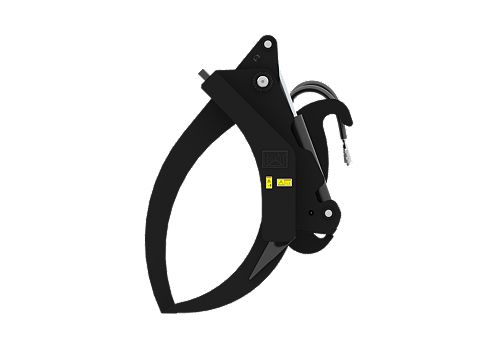

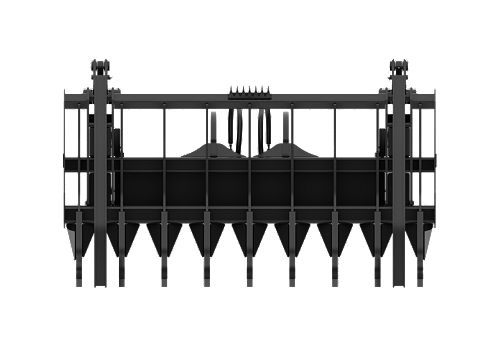

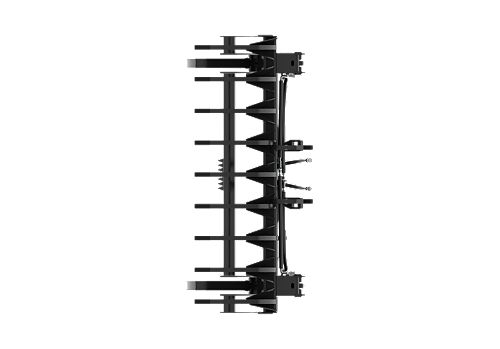

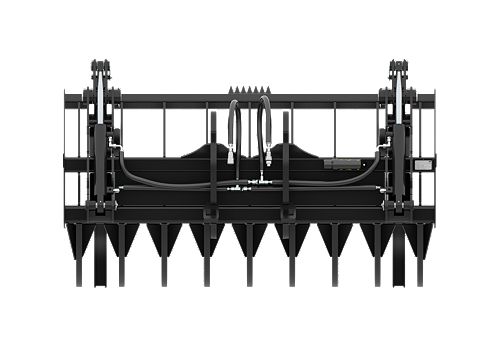

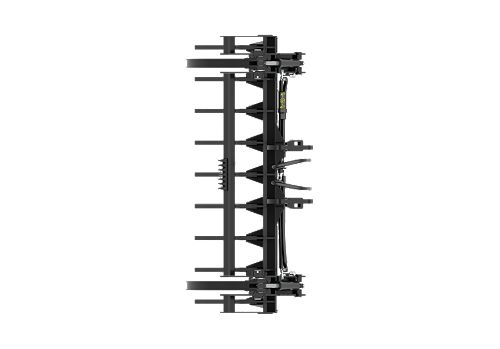

Loader Rakes are designed to remove roots from the ground and to pile up branches, logs or roots during a land cleaning application.
Loader Rakes are designed to remove roots from the ground and to pile up branches, logs or roots during a land cleaning application.
| Product Specifications | |
|---|---|
| Width | 120 in / 3048 mm |
| Weight | 4936.1 lb / 2239 kg |
| Overall Height | 73.8 in / 1874 mm |
| Overall Length | 41 in / 1042 mm |
| Tine Spacing | 11.8 in / 300 mm |
| Tine Thickness | 2 in / 50 mm |
| Number of Tines | 9 |
| Interface Type | Fusion™ |
| Top Clamp Style | Double Top clamp |
| Required Hydraulics | 3rd Function |
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 926M | 168 HP / 125 kW | 28193 lb / 12789 kg | 1.9-5.0 m3 (2.5-6.5 yd3) |
| 926M Aggregate Handler | 168 HP / 125 kW | 28577 lb / 12963 kg | 2.5-5.0 m3 (3.3-6.5 yd3) |
| 930M | 168 HP / 125 kW | 31382 lb / 14235 kg | 2.1-5.0 m3 (2.7-6.5 yd3) |
| 930M Ag Handler | 168 HP / 125 kW | 31382 lb / 14235 kg | 2.1-5.0 m³ (2.7-6.5 yd³) |
| 930M Aggregate Handler | 168 HP / 125 kW | 31848 lb / 14446 kg | 2.5-5.0 m3 (3.3-6.5 yd3) |
| 930M Waste Handler | 168 HP / 125 kW | 37713 lb / 17107 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
| 938M | 188 HP / 140 kW | 35778 lb / 16229 kg | 2.5-5.0 m3 (3.2-6.5 yd3) |
| 938M Aggregate Handler | 188 HP / 140 kW | 36839 lb / 16710 kg | 2.9-5.0 m3 (3.8-6.5 yd3) |
| 938M Waste Handler | 188 HP / 140 kW | 41794 lb / 18958 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
