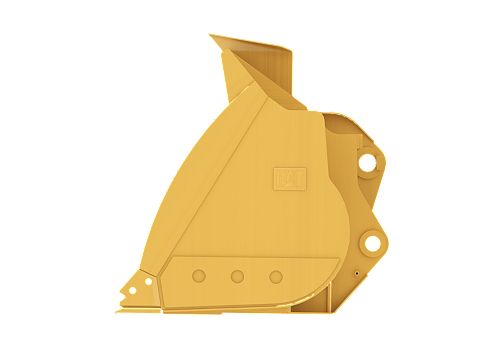

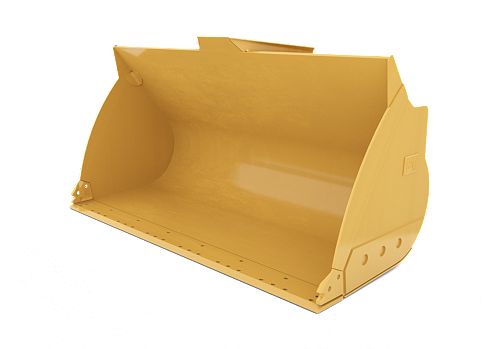

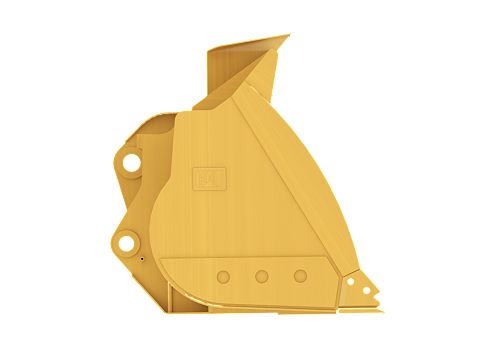

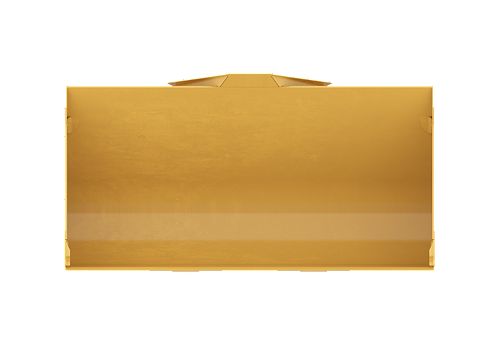

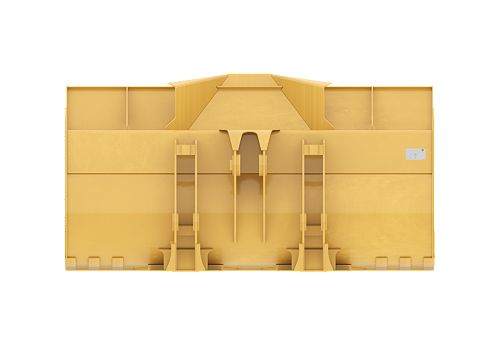

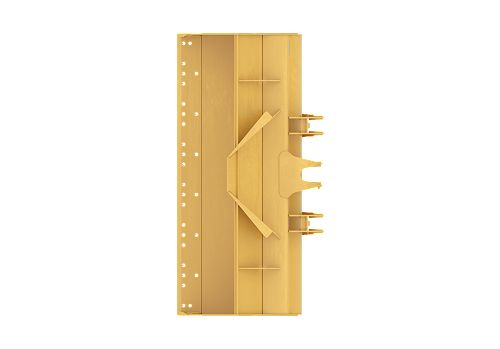

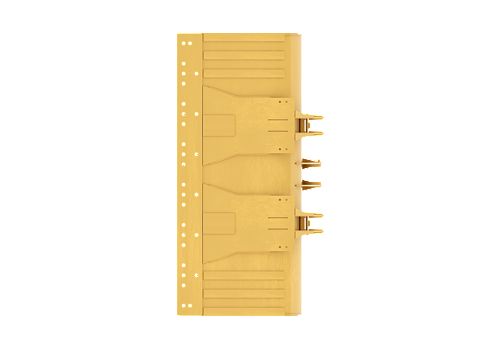

3.2 m3 (4.2 yd3), Pin On, Base Edge, 23.5R25 Tires
- Width
- 108 in / 2750 mm
- Height
- 57.6 in / 1462 mm
- Weight
- 2663.2 lb / 1208 kg
Sand & Gravel Buckets are designed for aggregate handling in batch plant loader applications.
| Product Specifications | |
|---|---|
| Width | 108 in / 2750 mm |
| Height | 57.6 in / 1462 mm |
| Weight | 2663.2 lb / 1208 kg |
| Length | 55.2 in / 1403 mm |
| Capacity | 4.2 yd³ / 3.2 m³ |
| Base Edge Thickness | 1 in / 25 mm |
| Cutting Edge Thickness | 1 in / 25 mm |
| Interface Type | Pin On |
Small Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 938M | 188 hp / 140 kW | 35778 lb / 16229 kg | 2.5-5.0 m3 (3.2-6.5 yd3) |
| 938M Aggregate Handler | 188 hp / 140 kW | 36839 lb / 16710 kg | 2.9-5.0 m3 (3.8-6.5 yd3) |
| 938M Waste Handler | 188 hp / 140 kW | 41794 lb / 18958 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
