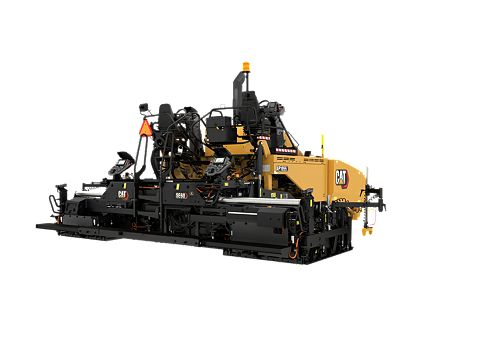

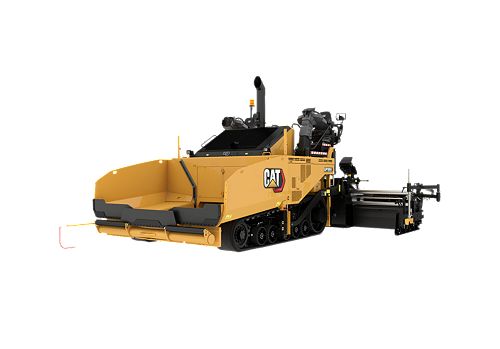

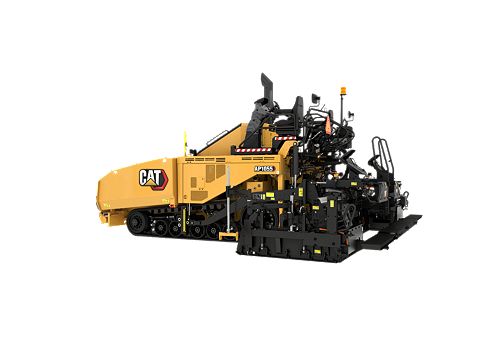

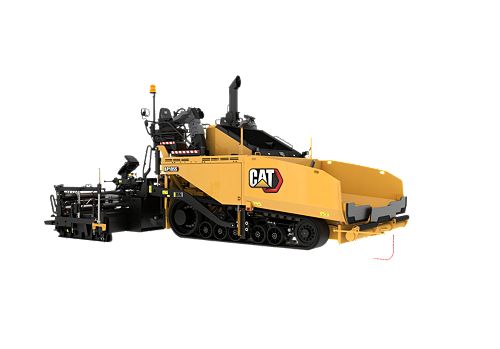

AP1055

Operating weight with SE60 V: 45087 lb / 20451 kg
Maximum Throughput Capacity: 1602 ton(US)/h / 1766 tonnes/hr
Engine Power (1): 225 hp / 168 kW

The AP1055 is a high-production, rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.

Loan Calculator Credit Application

Build & Quote

Key Features Paving Product Line Brochure Paving Application Guides and eBooks

Specifications
Equipment
Related Products

Dimensions
Paving Range with SE60 V	3.0 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 FM	3.0 m - 7.8 m (10' - 25' 6")
Paving Range with SE60 V XW	3.0 m - 10 m (10' - 33')
Paving Range with SE60 VT XW	3.0 m - 10 m (10' - 33')
Operating Length	22.3 ft / 6.8 m
Operating Width	10.8 ft / 3.3 m
Overall Height	12.25 ft / 3.7 m
Transport Length	21.9 ft / 6.6 m
Transport Width	9.8 ft / 3 m
Transport Height	9.7 ft / 2.9 m

Engine
Engine Power (1)	225 hp / 168 kW
Engine Model (1)	Cat C7.1

Operating Specifications
Maximum Travel Speed	9 mile/h / 14.5 km/h
Maximum Paving Speed	210 ft/min / 64 m/min
Maximum Paving Speed - With Tamper Bar Screed	82 ft/min / 25 m/min
Inside Turn Radius	1.5 ft / 0.5 m
Maximum Throughput Capacity	1602 ton(US)/h / 1766 tonnes/hr

Weights
Operating weight with SE60 V	45087 lb / 20451 kg
Operating weight with SE60 FM	45352 lb / 20571 kg
Operating weight with SE60 V XW	46573 lb / 21125 kg
Shipping Weight - Paver Only	36800 lb / 16691 kg

Service Refill Capacities
Fuel Tank Capacity	92 gal (US) / 348 l
DEF Tank	5 gal (US) / 19.1 l
Cooling System	12 gal (US) / 45 l
Hydraulic Oil Tank	58 gal (US) / 219 l
Washdown Tank	7.9 gal (US) / 30 l

Standard Equipment

Operating Environment
- Dual operating stations
- Steering guide
- Ventilation System
Technology
- Product Link™ Elite 641_cellular
Powertrain
- Automatic engine speed control
- Cat C7.1 Engine
- Variable speed cooling fan
- Eco-mode
- Extended life hydraulic oil
Electrical system
- 70 kW generator
- Cat Electronic Technician
- Machine security system
- Remote jump start receptacle
- Automotive type fuse system
- 12-volt power receptacle
- 100 amp alternator
- 1400 CCA batteries
Material Delivery
- Contact-type material feed sensors
- Adjustable push-roller
Service and Maintenance
- Extended-life coolant
- Remote access drains
- Scheduled Oil sampling ports
- Sight gauges
Safety
- Back-up alarm
- Horn
- Working lights
- Mirror package
- Vandal covers

Optional Equipment

Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Product Link™ Elite 631_satellite
- Thermal mapping
Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Friction steering
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
Powertrain
- Ballast_front weights
- Mobil-trac belt - smooth
- Mobil-trac belt - tread bar
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery
- Auger extension
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Sonic feed sensors
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits
Screed Choices
- SE60 V Screed
- SE60 FM Screed
- SE5 VT XW Screed
- SE60 V XW Screed
Grade References
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30') and 12.2 m (40')

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with Grade and Slope For Pavers
Cat Grade with Thermal Mapping For Pavers

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™
Cat® Inspect
Cat® Remote Troubleshooting
