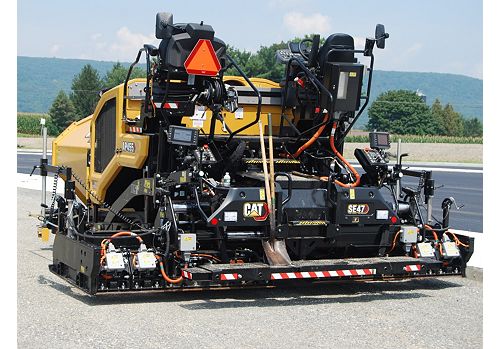

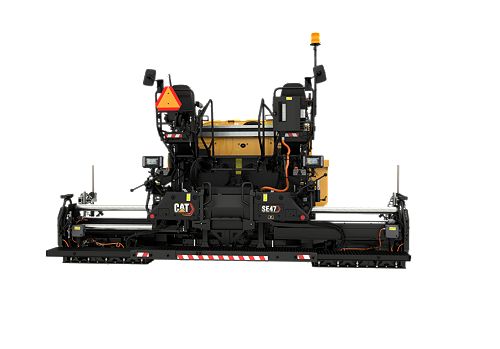

SE47 V Vibratory Screed
- Standard Weight
- 5850 lb / 2654 kg
- Maximum Paving Width
- 20 ft / 6.1 m
- Maximum Paving Depth
- 10 in / 250 mm

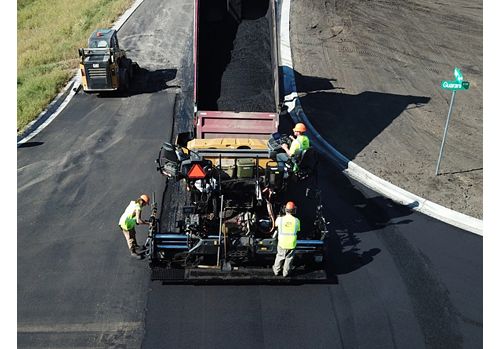

The Cat® SE47 V screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for urban streets, parking lots, rural roads, and many other mid-sized paving applications.
| Weights | |
|---|---|
| Standard Weight | 5850 lb / 2654 kg |
| Operating Specifications | |
|---|---|
| Standard Paving Range | 2.44 - 4.7 m (8' - 15' 6") |
| Maximum Paving Width | 20 ft / 6.1 m |
| Maximum Paving Depth | 10 in / 250 mm |
| Heating Time - Maximum Width | 25 minutes |
| Heating Time - Standard Width | 15 minutes |
| Crown Range | +6% to -2% |
| Vibratory Speed Range | 0 to 3000 vpm |
| Extender Height Range | +30 mm to -20 mm |
| Extender Slope Range | +10% to -3% |
| Dimensions | |
|---|---|
| Minimum Width - Endgates Attached | 102 in / 2590 mm |
| Transport Length - Tractor and Screed | 18.1 ft / 5523 mm |
| Screed Plates Width, Front to Back, Main Screed | 12.8 in / 324 mm |
| Screed Plates Width, Front to Back, Extenders | 12.8 in / 324 mm |
| Length - Front to Back, Endgates Attached | 84 in / 2123 mm |
| Length - Front to Back, Endgates Removed | 60 in / 1532 mm |
| Height | 56 in / 1428 mm |
