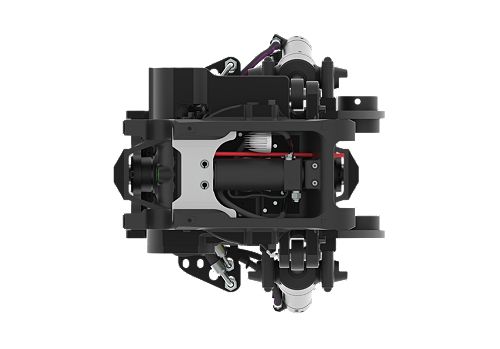

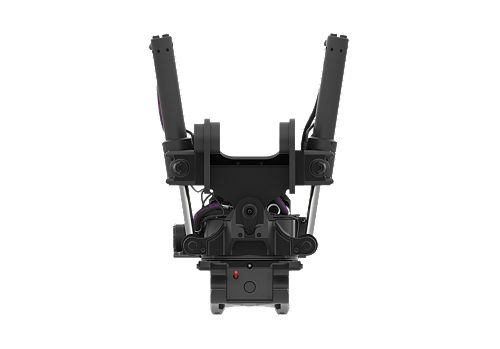

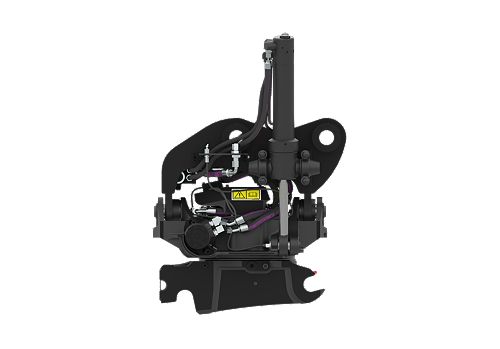

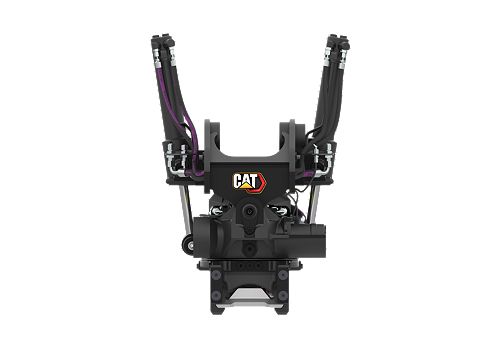

TRS8, Pin On (Pin Grabber) / S50, 7-9 Ton Mini Excavators
- Weight
- 712.1 lb / 323 kg
- Overall Height
- 37.6 in / 956 mm
- Length
- 26.2 in / 665 mm
Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.
| Product Specifications | |
|---|---|
| Machine Class | 7-9 Ton Mini Excavators |
| Weight | 712.1 lb / 323 kg |
| Interface Options: Top-Bottom | Pin On (Pin Grabber Coupler) / S50 Coupler |
| Overall Height | 37.6 in / 956 mm |
| Length | 26.2 in / 665 mm |
| Overall Width | 24.8 in / 630 mm |
| Rotation Speed | 7 Seconds per 1 full rotation |
| Tilt Angle Range | 40° Left/Right |
| Maximum Bucket Capacity | 17.7 ft³ / 500 l |
| Maximum Bucket Width | 59.1 in / 1500 mm |
| Optimal Hydraulic Flow | 45-75 L/min (12-20 gpm) |
| Maximum Operating Pressure | 3625.9 psi / 25000 kPa |
| Required Hydraulics | 1st Auxiliary |
| Tilting Torque | 19545.4 lb/ft / 26500 N·m |
| Turning Torque | 2876.5 lb/ft / 3900 N·m |
| Compatibility | Only compatible with the following Mini Excavator model serial number prefixes: 307.5 (GW7 1 & up) | 308 (GG8 1 & up) | 308 (GW8 1 & up) | 309 (GG9 1 & up) | 309 (GW9 1 & up) |
