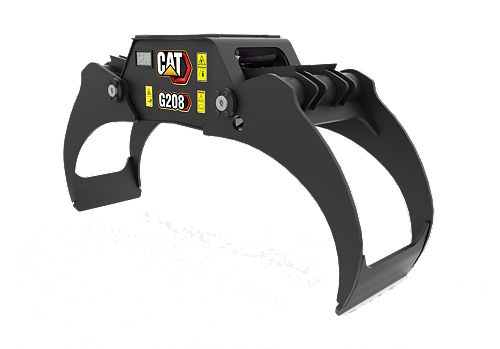

G208
- Grapple Area
- 2.8 ft² / 0.26 m²
- Weight
- 619.5 lb / 281 kg
- Maximum Jaw Opening
- 59.1 in / 1500 mm
Works best in material handling applications where irregular surface materials are used.
| Product Specifications | |
|---|---|
| Grapple Area | 2.8 ft² / 0.26 m² |
| Weight | 619.5 lb / 281 kg |
| Machine Class | 7-10 Ton Mini Excavators |
| Maximum Jaw Opening | 59.1 in / 1500 mm |
| Overall Width (Jaws Open) | 65.9 in / 1673 mm |
| Overall Width (Jaws Closed) | 35.6 in / 903 mm |
| Overall Height (Jaws Open) | 33.1 in / 842 mm |
| Overall Height (Jaws Closed) | 23.3 in / 591 mm |
| Overall Depth | 21.3 in / 540 mm |
| Minimum Grip Diameter | 3.9 in / 100 mm |
| Wear Plate Thickness | 0.6 in / 16 mm |
| Arm Depth (Outer) | 18.9 in / 480 mm |
| Arm Depth (Inner) | 16.5 in / 418 mm |
| Interface Type | Tool Interface |
| Required Hydraulics | Tiltrotator Auxiliary |
| Edge Material | AR500/HB500 |
| Maximum Closing Force | 4136.5 ft·lbf / 18.4 kN |
| Maximum Load Rating | 10582.2 lb / 4800 kg |
Mini Excavators
| Model | Net Power | Operating Weight |
|---|---|---|
| 309 CR | 69 hp / 51.2 kW | 20870 lb / 9465 kg |
| 310 - Tier 4 / Stage V | 69 hp / 51.2 kW | 23002 lb / 10432 kg |
