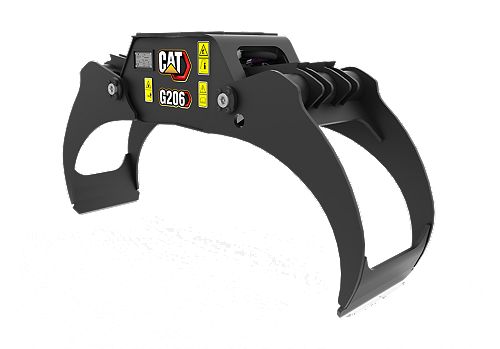

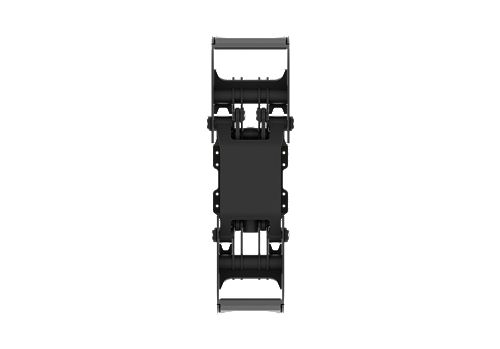

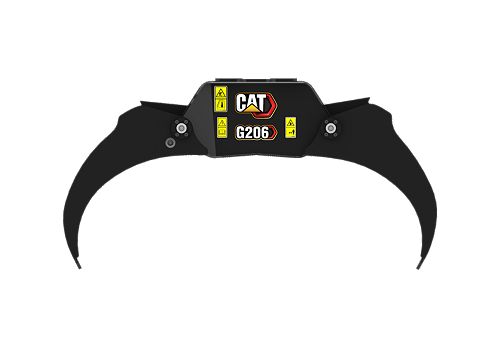

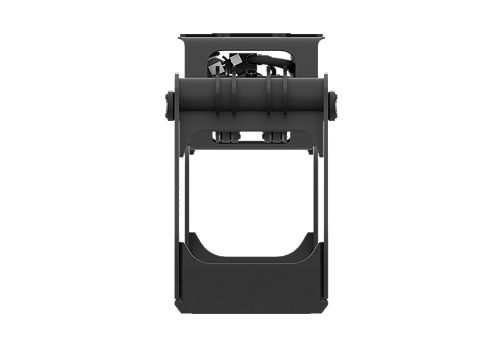

G206
- Grapple Area
- 2.2 ft² / 0.2 m²
- Weight
- 401.2 lb / 182 kg
- Maximum Jaw Opening
- 50.8 in / 1290 mm
Works best in material handling applications where irregular surface materials are used.
| Product Specifications | |
|---|---|
| Grapple Area | 2.2 ft² / 0.2 m² |
| Weight | 401.2 lb / 182 kg |
| Machine Class | 5-6 Ton Mini Excavators |
| Maximum Jaw Opening | 50.8 in / 1290 mm |
| Overall Width (Jaws Open) | 56.9 in / 1445 mm |
| Overall Width (Jaws Closed) | 30.9 in / 784 mm |
| Overall Height (Jaws Open) | 29.1 in / 740 mm |
| Overall Height (Jaws Closed) | 20.2 in / 513 mm |
| Overall Depth | 18.3 in / 465 mm |
| Minimum Grip Diameter | 3.1 in / 78 mm |
| Wear Plate Thickness | 0.5 in / 12 mm |
| Arm Depth (Outer) | 15.9 in / 405 mm |
| Arm Depth (Inner) | 13.8 in / 351 mm |
| Interface Type | Tool Interface |
| Required Hydraulics | Tiltrotator Auxiliary |
| Edge Material | AR500/HB500 |
| Maximum Closing Force | 3259.7 ft·lbf / 14.5 kN |
| Maximum Load Rating | 6613.9 lb / 3000 kg |
