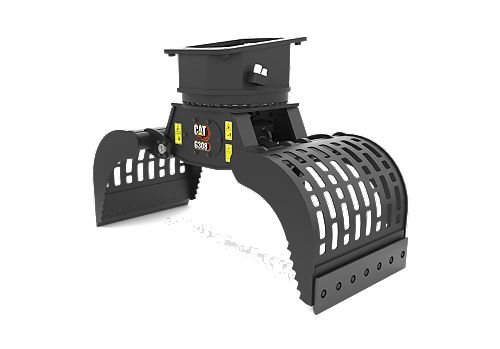

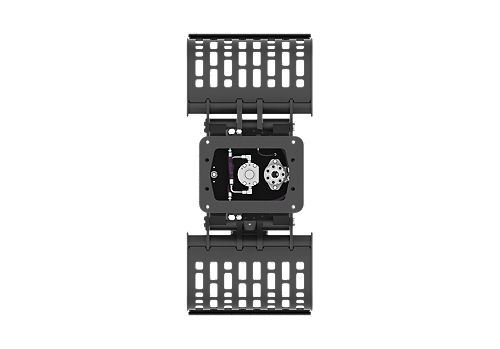

G308
- Grapple Area
- 8.5 ft³ / 240 l
- Weight
- 1084.7 lb / 492 kg
- Maximum Jaw Opening
- 55.3 in / 1404 mm
Designed for fast, productive material handling and sorting of various shaped materials.
| Product Specifications | |
|---|---|
| Grapple Area | 8.5 ft³ / 240 l |
| Weight | 1084.7 lb / 492 kg |
| Machine Class | 7-10 Ton Mini Excavators |
| Maximum Jaw Opening | 55.3 in / 1404 mm |
| Outer Wrapper Thickness | 0.2 in / 6 mm |
| Overall Width (Jaws Open) | 61.5 in / 1562 mm |
| Interface Type | S45, S50, CW10, Pin On, Pin Lock |
| Overall Width (Jaws Closed) | 34.4 in / 875 mm |
| Overall Height (Jaws Open) | 40.7 in / 1033 mm |
| Overall Height (Jaws Closed) | 47.4 in / 1205 mm |
| Overall Depth | 27.6 in / 700 mm |
| Required Hydraulics | 2nd Auxiliary |
| Edge Material | HB500 Equivalent |
| Optimal Hydraulic Flow | Grab 131 L/min (35 gpm) | Rotation 33 L/min (9 gpm) |
| Maximum Closing Force | 4.9 Sh Ton / 44 kN |
Mini Excavators
| Model | Net Power | Operating Weight |
|---|---|---|
| 309 CR | 69 hp / 51.2 kW | 20870 lb / 9465 kg |
| 310 - Tier 4 / Stage V | 69 hp / 51.2 kW | 23002 lb / 10432 kg |
