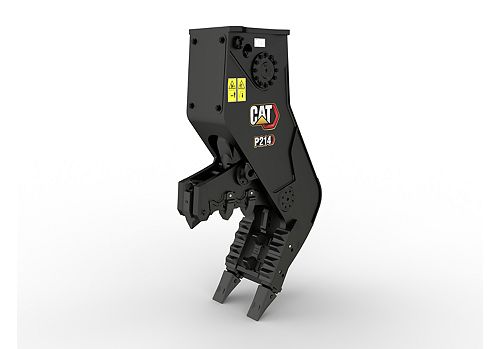

P214 Secondary Pulverizer
- Cycle Time - Open
- 1.6 s
- Cycle Time - Close
- 1 s
- Crushing Force - Primary Cutter
- 264 Sh Ton / 2345 kN
Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
| Performance | |
|---|---|
| Cycle Time - Open | 1.6 s |
| Cycle Time - Close | 1 s |
| Crushing Force - Primary Cutter | 264 Sh Ton / 2345 kN |
| Crushing Force - Tip | 74 Sh Ton / 655 kN |
| Crushing Force - Primary Tooth | 148 Sh Ton / 1320 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 4786 psi / 33000 kPa |
| Jaw Circuit - Max. Oil Flow | 40 gal/min / 150 l/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 25.6 in / 650 mm |
| Cutter Length | 4.5 in / 115 mm |
| Jaw Opening - Maximum | 34.8 in / 885 mm |
| Jaw Width - Fixed | 21.9 in / 555 mm |
| Jaw Width - Moveable | 12.2 in / 310 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 87 in / 2210 mm |
| Height | 51.6 in / 1310 mm |
| Width | 21.9 in / 555 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 3285 lb / 1490 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 14000 kg (30900 lb) |
| Excavator Maximum | 19000 kg (41900 lb) |
