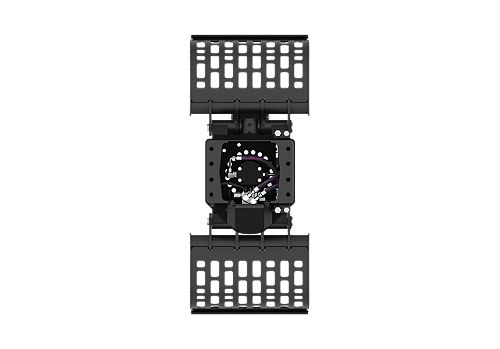

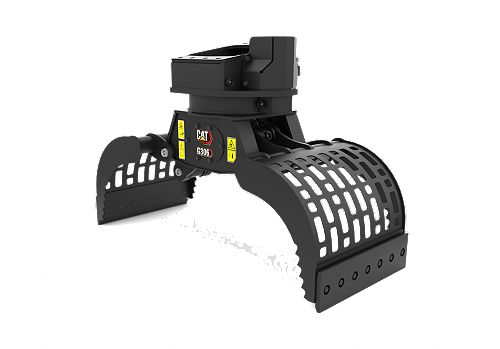

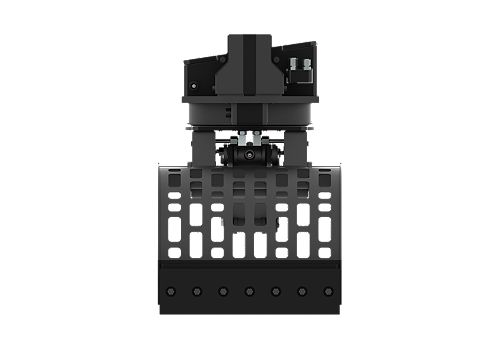

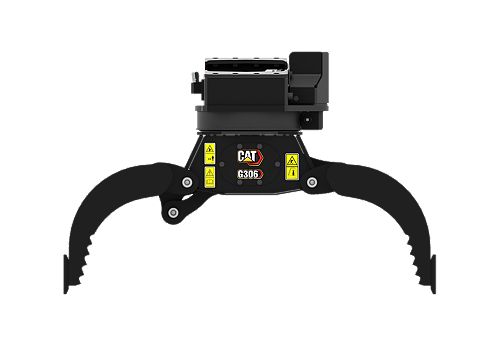

G306
- Grapple Area
- 5.7 ft³ / 160 l
- Weight
- 731.9 lb / 332 kg
- Maximum Jaw Opening
- 50 in / 1271 mm
Designed for fast, productive material handling and sorting of various shaped materials.
| Product Specifications | |
|---|---|
| Grapple Area | 5.7 ft³ / 160 l |
| Weight | 731.9 lb / 332 kg |
| Machine Class | 5-6 Ton Mini Excavators |
| Maximum Jaw Opening | 50 in / 1271 mm |
| Overall Width (Jaws Open) | 55.3 in / 1404 mm |
| Interface Type | S40, CW10, Pin On |
| Overall Width (Jaws Closed) | 28.8 in / 732 mm |
| Overall Height (Jaws Open) | 35.2 in / 894 mm |
| Overall Height (Jaws Closed) | 41.6 in / 1057 mm |
| Overall Depth | 23.6 in / 600 mm |
| Required Hydraulics | 2nd Auxiliary |
| Edge Material | HB500 Equivalent |
| Optimal Hydraulic Flow | Grab 90 L/min (24 gpm) | Rotation 33 L/min (9 gpm) |
| Maximum Closing Force | 3 Sh Ton / 27 kN |
