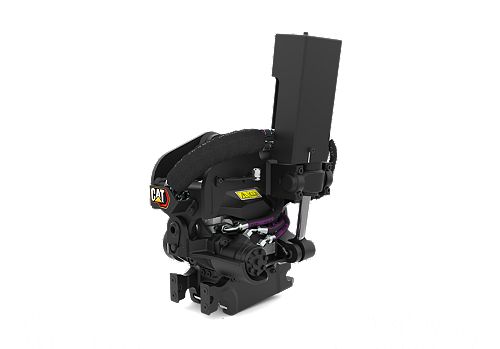

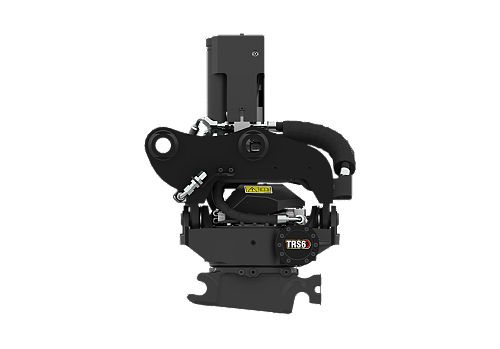

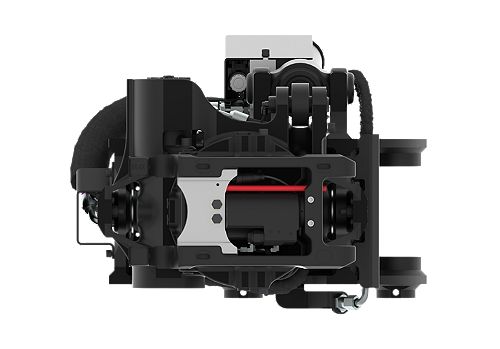

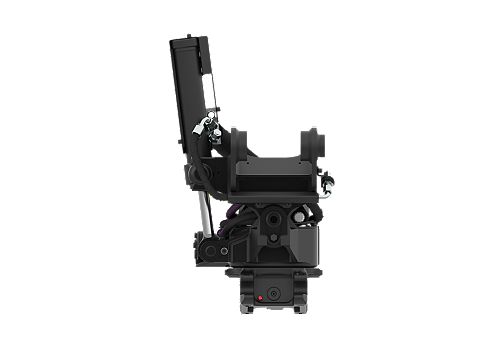

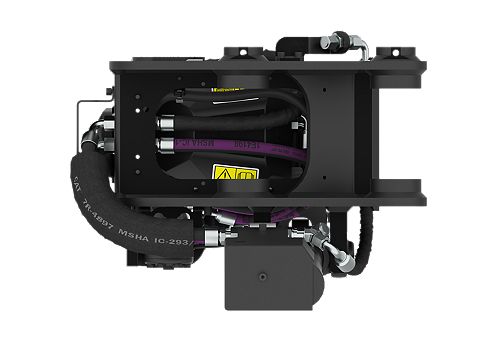

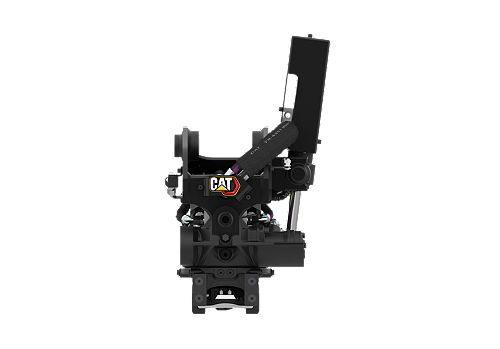

TRS6, Pin On (Pin Grabber) / S40, 5-6 Ton Mini Excavators
- Weight
- 394.6 lb / 179 kg
- Overall Height
- 32.4 in / 822 mm
- Length
- 23.9 in / 608 mm
Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.
| Product Specifications | |
|---|---|
| Machine Class | 5-6 Ton Mini Excavators |
| Weight | 394.6 lb / 179 kg |
| Interface Options: Top-Bottom | Pin On (Pin Grabber) Coupler / S40 Coupler |
| Overall Height | 32.4 in / 822 mm |
| Length | 23.9 in / 608 mm |
| Overall Width | 19.1 in / 485 mm |
| Rotation Speed | 7 Seconds per 1 full rotation |
| Tilt Angle Range | 40° Left/Right |
| Maximum Bucket Capacity | 8.8 ft³ / 250 l |
| Maximum Bucket Width | 47.2 in / 1200 mm |
| Optimal Hydraulic Flow | 30-70 L/min (8-19 gpm) |
| Maximum Operating Pressure | 3625.9 psi / 25000 kPa |
| Required Hydraulics | 1st Auxiliary |
| Tilting Torque | 10620.9 lb/ft / 14400 N·m |
| Turning Torque | 2876.5 lb/ft / 3900 N·m |
