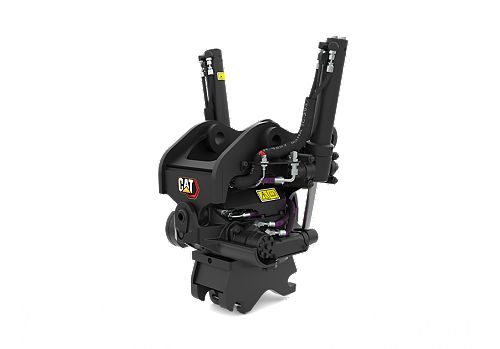

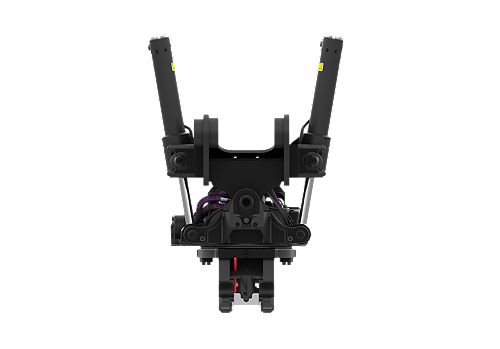

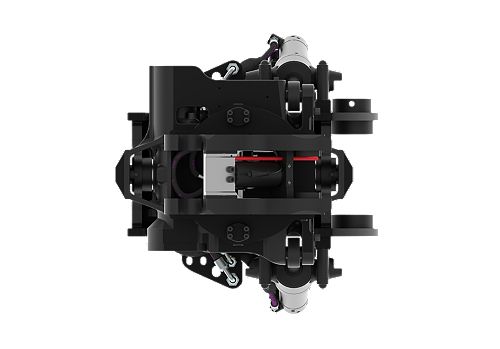

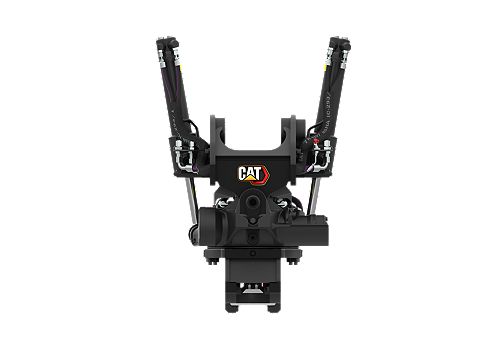

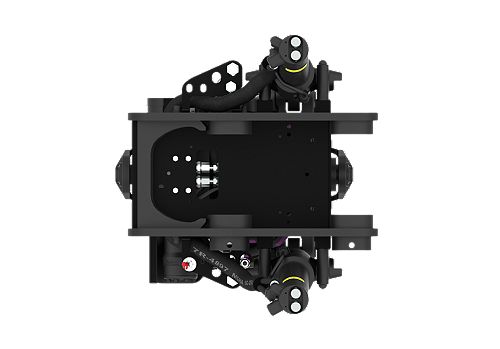

TRS8, Pin On (Pin Grabber)/Pin Grabber, 7-9 Ton Mini Excavators
- Weight
- 694.5 lb / 315 kg
- Overall Height
- 39.4 in / 1002 mm
- Length
- 26 in / 660 mm
Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.
| Product Specifications | |
|---|---|
| Machine Class | 7-9 Ton Mini Excavators |
| Weight | 694.5 lb / 315 kg |
| Interface Options: Top-Bottom | Pin On (Pin Grabber) Coupler / Pin Grabber Coupler |
| Overall Height | 39.4 in / 1002 mm |
| Length | 26 in / 660 mm |
| Overall Width | 27.8 in / 705 mm |
| Rotation Speed | 7 Seconds per 1 full rotation |
| Tilt Angle Range | 40° left/right |
| Maximum Bucket Capacity | 17.7 ft³ / 500 l |
| Maximum Bucket Width | 59.1 in / 1500 mm |
| Optimal Hydraulic Flow | 45-75 L/min (12-20 gpm) |
| Maximum Operating Pressure | 3625.9 psi / 25000 kPa |
| Required Hydraulics | 1st Auxiliary |
| Tilting Torque | 19545.4 lb/ft / 26500 N·m |
| Turning Torque | 4499.1 lb/ft / 6100 N·m |
Mini Excavators
| Model | Net Power | Operating Weight | Dig Depth |
|---|---|---|---|
| 309 CR | 69 hp / 51.2 kW | 20870 lb / 9465 kg | 182.8 in / 4642 mm |
