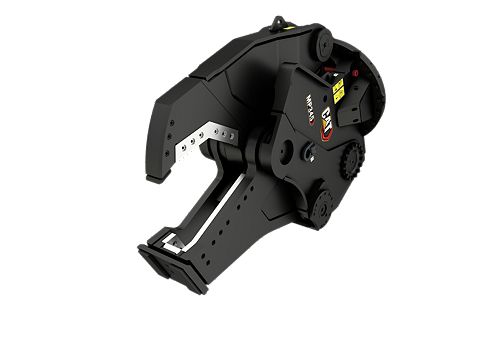

MP345 Shear Jaw

Cycle Time - Open: 1.9 s
Cycle Time - Close: 1.4 s
Cutting Force - Blade Throat: 951 Sh Ton / 8463 kN

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Loan Calculator Credit Application

Build & Quote

MP345 Multi-Processor Key Features Multi-Processor Brochure Multi-Processors Technical Specifications

Specifications
Related Products

Performance
Cycle Time - Open	1.9 s
Cycle Time - Close	1.4 s
Cutting Force - Blade Throat	951 Sh Ton / 8463 kN
Cutting Force - Blade Center	409 Sh Ton / 3637 kN
Cutting Force - Blade Tip	219 Sh Ton / 1945 kN

Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure	5076 psi / 350 bar
Jaw Circuit - Max. Oil Flow	95 gal/min / 360 l/min
Rotation Circuit - Max. Oil Pressure	2321 psi / 160 bar
Rotation Circuit - Max. Oil Flow	13 gal/min / 50 l/min

Dimensions - Jaw
Jaw Depth	29.3 in / 744 mm
Cutter Length	22.8 in / 579 mm
Jaw Opening - Maximum	19.7 in / 500 mm
Jaw Width - Fixed	17.1 in / 434 mm
Jaw Width - Moveable	5.7 in / 146 mm

Dimensions - Housing + Jaw
Width	90.4 in / 2296 mm
Length	73.4 in / 1865 mm
Height	39.6 in / 1005 mm

Weight
Weight - Housing, Jaw and Bracket	9524 lb / 4320 kg
Weight - Jaw Only	4354 lb / 1975 kg

Recommended Carrier Weight
Excavator Minimum	45 tons
Excavator Maximum	65 tons
