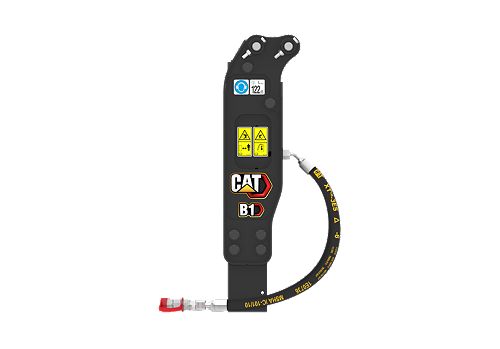

B1 Pin On
- Operating Weight - With Tool
- 162.3 lb / 73.6 kg
- Energy Class
- 147.5 ft·lbf / 200 J
- Tool Shaft Diameter
- 1.6 in / 40 mm
Used for demolition and construction applications.
| Product Specifications | |
|---|---|
| Operating Weight - With Tool | 162.3 lb / 73.6 kg |
| Energy Class | 147.5 ft·lbf / 200 J |
| Machine Class | 300.9D Mini Excavators |
| Tool Shaft Diameter | 1.6 in / 40 mm |
| Impact Frequency | 800-1400 bpm |
| Minimum Operating Pressure | 1276 psi / 8798 kPa |
| Minimum Carrier Weight | 1979.7 lb / 898 kg |
| Optimal Hydraulic Flow | 15-25 lpm (4-6.6 gpm) |
| Overall Width | 7.8 in / 199 mm |
| Overall Length | 8.2 in / 208 mm |
| Overall Height | 37.7 in / 958 mm |
| Height - Without Tool | 29.4 in / 748 mm |
| Sound Level | 122 dB |
| Mounting Bracket Size | Pin On |
