279D3

Gross Power - SAE J1995
74.3 hp / 55.4 kW
Rated Operating Capacities - 35% Tipping Load
2220 lb / 1010 kg
Operating Weight
10095 lb / 4579 kg

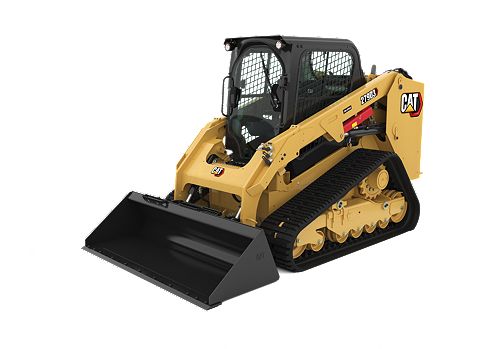

The Cat® 279D3 Compact Track Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Loan Calculator Credit Application
Build & Quote
alt 1
279D3 Product Brochure 239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE Product Brochure Advanced Display User Guide for Skid Steer, Compact Track, and Multi Terrain Loaders - D/D2/D3 Series Retrofit Options and Accessories Guide for Compact Track, Skid Steer and Multi Terrain Loaders
Engine
Gross Power - SAE J1995 74.3 hp / 55.4 kW
Net Power - SAE 1349 72.9 hp / 54.4 kW
Displacement 203 in³ / 3.3 l
Bore 3.7 in / 94 mm
Stroke 4.7 in / 120 mm
Peak Torque - 1,500 rpm - SAE J1995 195 ft·lbf / 265 N·m
Net Power 72.9 hp / 54.4 kW
Note Net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler/aftertreatment and cooling fan.
Gross Power 74.3 hp / 55.4 kW
Engine Model Cat C3.3B DIT (turbo)
Net Power - ISO 9249 73.7 hp / 54.9 kW
Operating Specifications
Rated Operating Capacities - 35% Tipping Load 2220 lb / 1010 kg
Tipping Load 6345 lb / 2885 kg
Breakout Force - Tilt Cylinder 7285 lb / 3304 kg
Rated Operating Capacities - 50% Tipping Load 3170 lb / 1445 kg
Ground Contact Area - With 450 mm/17.7 in Track 2272 in² / 1.47 m²
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 2036 mm (80 in) low profile bucket, 450 mm (17.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Rated Operating Capacity with Optional Counterweight 3390 lb / 1540 kg
Ground Pressure - With 450 mm/17.7 in Track 4.4 psi / 30.4 kPa
Weights
Operating Weight 10095 lb / 4579 kg
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 2036 mm (80 in) low profile bucket, 450 mm (17.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Dimensions
Length - Track on Ground 64.2 in / 1630 mm
Overall Length - Track 83.8 in / 2129 mm
Height - Top of Cab 83.2 in / 2113 mm
Ground Clearance 8.9 in / 226 mm
Departure Angle 32°
Maximum Dump Angle 39°
Bucket Pin Height - Carry Position 7.8 in / 198 mm
Turning Radius from Center - Machine Rear 70.7 in / 1796 mm
Turning Radius from Center - Coupler 55.5 in / 1410 mm
Maximum Overall Height 159.5 in / 4051 mm
Maximum Reach - With Arms Parallel to Ground 54 in / 1373 mm
Turning Radius from Center - Bucket 88.8 in / 2256 mm
Bucket Pin Height - Maximum Lift 124.9 in / 3173 mm
Length - With Bucket on Ground 146.2 in / 3714 mm
Length - Without Bucket 117.9 in / 2995 mm
Reach - Maximum Lift/Dump 22.6 in / 575 mm
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 2036 mm (80 in) low profile bucket, 450 mm (17.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Clearance at Maximum Lift and Dump 97.8 in / 2485 mm
Vehicle Width (450 mm/17.7 in tracks) 78 in / 1981 mm
Rack Back Angle - Maximum Height 84°
Hydraulic System
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3335 psi / 23000 kPa
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 32 gal/min / 121 l/min
Hydraulic Flow - Standard - Loader Hydraulic Flow 23 psi / 86 kPa
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 44 hp / 33 kW
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 hp / 28000 kW
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 76 hp / 57 kPa
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
Power Train
Travel Speed - Forward or Reverse - Two Speed 8.3 mile/h / 13.3 km/h
Travel Speed - Forward or Reverse - One Speed 4.5 mile/h / 7.2 km/h
Service Refill Capacities
Hydraulic System 13.7 gal (US) / 52 l
Hydraulic Tank 10.3 gal (US) / 39 l
Fuel Tank 27.7 gal (US) / 105 l
Engine Crankcase 3 gal (US) / 11 l
Cooling System 3.7 gal (US) / 14 l
Air Conditioning System (if equipped)
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
Noise Level
Note (2) **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Outside Cab*** 103 dB(A)
Note (3) ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab** 83 dB(A)
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Standard Equipment

  • ELECTRICAL
    • 12 volt Electrical System
    • 80 ampere Alternator
    • Ignition Key Start/Stop Switch
    • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
    • Backup Alarm
    • Heavy Duty Battery, 850 CCA
  • OPERATOR ENVIRONMENT
    • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response, and Creep Control
    • Gauges: Fuel Level, Hour Meter
    • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
    • Adjustable Vinyl Seat
    • Fold In Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
    • ROPS Cab, Open, Tilt Up
    • FOPS, Level I
    • Top and Rear Windows
    • Floor Mat
    • Interior Rearview Mirror
    • 12 volt Electric Socket
    • Horn
    • Hand (Dial) Throttle, Electronic
    • Adjustable Joystick Controls
    • Anti-theft Security System with 6-button Keypad
    • Storage Compartment with Netting
  • POWER TRAIN
    • Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Cartridge-type, Hydraulic
    • Filters, Canister-type, Fuel and Water Separator
    • Radiator/Hydraulic Oil Cooler (side-by-side)
    • Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
    • Hydrostatic Transmission, Two Speed Travel
    • Suspension – Independent Torsion Axles (4)
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –37° C (–34° F)
    • Machine Tie Down Points (6)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly Pan Cleanout
    • Variable Speed Demand Fan
    • Product Link™ PL243, Cellular
  • MANDATORY EQUIPMENT
    • Hydraulics, Standard or High Flow XPS
    • Quick Coupler, Mechanical or Powered
    • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • Steel Imbed Rubber Track – 450 mm (17.7 in)
    • Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
    • PERFORMANCE PACKAGES:
      – Performance Package H1: Standard Flow Hydraulics (No Self Level)
      – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
      – Performance Package H3: High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    • COMFORT PACKAGES:
      – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
      – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
      – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
      – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Hand-Foot Style Controls
    • External Counterweights
    • Beacon, Rotating
    • Engine Block Heater – 120V
    • Oil, Hydraulic, Cold Operation
    • Paint, Custom
    • Heavy Duty Battery, 1,000 CCA
    • Product Link PL641, Cellular
    • Speed Sensitive Ride Control
    • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)

Bale Spears

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Model Overall Width Overall Height Capacity
890 mm (35 in) 50.6 in / 1285 mm 22.4 in / 570 mm 2004 lb / 909 kg
890 mm (35 in) 55.4 in / 1407 mm 51.8 in / 1315 mm 3007.1 lb / 1364 kg
1140 mm (45 in) 50.6 in / 1285 mm 22.4 in / 570 mm 2004 lb / 909 kg
1140 mm (45 in) 55.4 in / 1407 mm 51.8 in / 1315 mm 3007.1 lb / 1364 kg

Material Handling Buckets

Used to load and carry large volumes of ultra-low density material in a variety of applications.

Model Width Capacity Weight
2185 mm (86 in), Bolt-On Cutting Edge 86 in / 2185 mm 1.4 yd³ / 1.07 m³ 805 lb / 365 kg
2490 mm (98 in), Bolt-On Cutting Edge 98 in / 2490 mm 1.63 yd³ / 1.25 m³ 882 lb / 400 kg
2642 mm (104 in), Bolt-On Cutting Edge 104 in / 2642 mm 1.74 yd³ / 1.33 m³ 922 lb / 418 kg

Silage Defacers

Prepare silage and haylage for feed with minimal oxygen penetration reducing waste.

Model Overall Width Weight Required Hydraulics
DFS118 72.5 in / 1841 mm 937 lb / 425 kg Standard Flow
DFS121 84.5 in / 2146 mm 1051.6 lb / 477 kg Standard Flow
DFS124 96.5 in / 2451 mm 1108.9 lb / 503 kg Standard Flow

Bale Grabs

Cat® Bales Grabs safely grab, carry and place square or round baled material.

Model Overall Width Overall Height Maximum Opening Width
1803 mm (71 in) 55.2 in / 1401 mm 34.4 in / 873 mm 71 in / 1803 mm
2133 mm (84 in) 55.2 in / 1401 mm 34.4 in / 873 mm 84 in / 2133 mm

Mixing Buckets

Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

Model Capacity Width Required Hydraulics
MB200 0.26 yd³ / 0.2 m³ 54.6 in / 1386 mm Standard Flow
MB250 0.33 yd³ / 0.25 m³ 54.7 in / 1390 mm Standard Flow

Pallet Fork Carriages

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model Height Width Overall Width
1160 mm (46 in) 35.9 in / 912 mm 46 in / 1160 mm 49.9 in / 1268 mm

Command

Combining the Fleet, Terrain, Detect and Health capabilities of Cat® MineStar™ System, Command enables you to implement remote control, semi-autonomous or fully autonomous mining equipment systems - offering unprecedented improvements in operator safety, equipment availability and site productivity.

Model
Cat Command Remote Control for Construction

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

Box Blades

Cat® Box Blades are designed for grading and leveling. Each model is designed to operate both manually and automatically with the use of Laser or GPS grading systems.

Model Overall Width Working Width Optimal Hydraulic Flow
BB121 87.4 in / 2221 mm 83.9 in / 2131 mm 30-85 L/min (8-22 gpm)
BB124 99.4 in / 2526 mm 95.9 in / 2436 mm 30-85 L/min (8-22 gpm)

Power Box Rakes

Designed for clearing and preparing soil in landscape finishing applications.

Model Roller Width Overall Width Maximum Angle - Right or Left
PR118 Hydraulic Angle 72 in / 1829 mm 81 in / 2057 mm 20 degrees
PR118 Manual Angle 72 in / 1829 mm 81 in / 2057 mm 20 degrees
PR121 Hydraulic Angle 84 in / 2134 mm 93 in / 2362 mm 20 degrees
PR121 Manual Angle 84 in / 2134 mm 93 in / 2362 mm 20 degrees
PR123 Hydraulic Angle 90 in / 2286 mm 99 in / 2515 mm 20 degrees

Brushcutters

Brushcutters are used to clear land and overgrowth.

Model Overall Width Cutting Width Maximum Cutting Diameter
BR117 68 in / 1727 mm 66 in / 1676 mm 3 in / 76 mm
BR118 74 in / 1880 mm 72 in / 1829 mm 3 in / 76 mm
BR120 79.7 in / 2025 mm 78 in / 1981 mm 3 in / 76 mm
BR318 74 in / 1880 mm 72 in / 1829 mm 3 in / 76 mm
BR320 79.7 in / 2025 mm 78 in / 1981 mm 3 in / 76 mm

Industrial Grapple Forks

Cat® Industrial Grapple Forks are designed to handle a wide array of materials in tough operating conditions.

Model Width Height - Grapples Closed Jaw Opening
1676 mm (66 in) 66 in / 1676 mm 31.9 in / 810 mm 38 in / 965 mm
1829 mm (72 in) 72 in / 1829 mm 32 in / 814 mm 38 in / 965 mm

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model Drive Shaft Torque at Maximum Pressure Drive Method Mounting Bracket Design
A23 1699.3 lb/ft / 2304 N·m Gerotor Motor - Direct Drive Skid Steer Loader Coupler
A41 3037.3 lb/ft / 4118 N·m Gerotor Motor - Single Planetary Reduction Skid Steer Loader Coupler
A68 5034.6 lb/ft / 6826 N·m Gerotor Motor - Double Planetary Drive Skid Steer Loader Coupler

Landscape Tillers

Hardened tines break up and mix soil in a variety of applications.

Model Working Width Working Depth Weight
LT114 53.3 in / 1354 mm 25-152 mm (1-6 in) 925.9 lb / 420 kg
LT118 72.8 in / 1848 mm 25-152 mm (1-6 in) 925.9 lb / 420 kg

Landscape Rakes

Cat® Landscape Rakes are used for scarifying the soil and collecting debris for easy removal.

Model Working Width Bucket Capacity - Struck Weight
LR116 62 in / 1576 mm 0.4 yd³ / 0.31 m³ 1311.7 lb / 595 kg
LR119 74.1 in / 1883 mm 0.4 yd³ / 0.34 m³ 1439.6 lb / 653 kg

Trenchers

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Model Standard Boom Length
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Manual Side Shift 48 in / 1219 mm
T112 Manual Side Shift 48 in / 1219 mm
T112 Manual Side Shift 48 in / 1219 mm
T112 Manual Side Shift 48 in / 1219 mm
T315 Hydraulic Side Shift 60 in / 1524 mm
T315 Hydraulic Side Shift 60 in / 1524 mm
T315 Hydraulic Side Shift 60 in / 1524 mm
T315 Hydraulic Side Shift 60 in / 1524 mm

Vibratory Drum Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model Drum Width Weight Required Hydraulics
CV117 66 in / 1676 mm 2063.5 lb / 936 kg Standard Flow
CV119 73 in / 1854 mm 2138.5 lb / 970 kg Standard Flow

General Purpose Buckets

Used to dig, load, carry, level, dump and grade in a variety of applications.

Model Width Capacity Weight
1576 mm (62 in), Bolt-On Teeth 62 in / 1576 mm 0.47 yd³ / 0.36 m³ 407.9 lb / 185 kg
1576 mm (62 in), Bolt-On Cutting Edge 62 in / 1576 mm 0.47 yd³ / 0.36 m³ 440.9 lb / 200 kg
1730 mm (68 in), Bolt-On Cutting Edge 68.1 in / 1730 mm 0.52 yd³ / 0.4 m³ 551.2 lb / 250 kg
1730 mm (68 in), Bolt-On Teeth 68.1 in / 1730 mm 0.52 yd³ / 0.4 m³ 509.3 lb / 231 kg
1883 mm (74 in), Bolt-On Cutting Edge 74.1 in / 1883 mm 0.58 yd³ / 0.44 m³ 597.5 lb / 271 kg
1883 mm (74 in), Bolt-On Teeth 74.1 in / 1883 mm 0.58 yd³ / 0.44 m³ 549 lb / 249 kg
2036 mm (80 in), Bolt-On Cutting Edge 80.2 in / 2036 mm 0.63 yd³ / 0.48 m³ 630.5 lb / 286 kg
2036 mm (80 in), Bolt-On Teeth 80.2 in / 2036 mm 0.63 yd³ / 0.48 m³ 582 lb / 264 kg
2188 mm (86 in), Bolt-On Cutting Edge 86.1 in / 2188 mm 0.82 yd³ / 0.63 m³ 723.1 lb / 328 kg
2188 mm (86 in), Bolt-On Teeth 86.1 in / 2188 mm 0.82 yd³ / 0.63 m³ 670.2 lb / 304 kg
1576 mm (62 in) 62 in / 1576 mm 0.47 yd³ / 0.36 m³ 374.8 lb / 170 kg
1730 mm (68 in) 68.1 in / 1730 mm 0.52 yd³ / 0.4 m³ 476.2 lb / 216 kg
1883 mm (74 in) 74.1 in / 1883 mm 0.58 yd³ / 0.44 m³ 515.9 lb / 234 kg
2036 mm (80 in) 80.2 in / 2036 mm 0.63 yd³ / 0.48 m³ 544.5 lb / 247 kg
2188 mm (86 in) 86.1 in / 2188 mm 0.82 yd³ / 0.63 m³ 634.9 lb / 288 kg

Low Profile Buckets

Designed for light duty earth excavation.

Model Width Capacity Weight
1421 mm (56 in), Bolt-On Cutting Edge 56 in / 1421 mm 0.39 yd³ / 0.3 m³ 392 lb / 178 kg
1576 mm (62 in), Bolt-On Cutting Edge 62 in / 1586 mm 0.44 yd³ / 0.34 m³ 452 lb / 205 kg
1730 mm (68 in), Bolt-On Cutting Edge 68 in / 1740 mm 0.48 yd³ / 0.37 m³ 512 lb / 232 kg
1883 mm (74 in), Bolt-On Cutting Edge 74 in / 1893 mm 0.54 yd³ / 0.41 m³ 547 lb / 248 kg
2036 mm (80 in), Bolt-On Cutting Edge 80 in / 2045 mm 0.58 yd³ / 0.44 m³ 584 lb / 265 kg

Utility Buckets

Designed with a taller back height and longer floor length for lower density materials.

Model Width Capacity Weight
1576 mm (62 in), Bolt-On Cutting Edge 62 in / 1576 mm 0.56 yd³ / 0.43 m³ 529 lb / 240 kg
1730 mm (68 in), Bolt-On Cutting Edge 68.1 in / 1730 mm 0.63 yd³ / 0.48 m³ 569 lb / 258 kg
1883 mm (74 in), Bolt-On Cutting Edge 74.1 in / 1883 mm 0.68 yd³ / 0.52 m³ 609 lb / 276 kg
1576 mm (62 in) 62 in / 1576 mm 0.56 yd³ / 0.43 m³ 463 lb / 210 kg
1730 mm (68 in) 68.1 in / 1730 mm 0.63 yd³ / 0.48 m³ 496 lb / 225 kg
1883 mm (74 in) 74.1 in / 1883 mm 0.68 yd³ / 0.52 m³ 526.9 lb / 239 kg

Light Material Buckets

High volume bucket designed for handling light material like snow, grain, fertilizer, or mulch.

Model Width Capacity Weight
1883 mm (74 in), Bolt-On Cutting Edge 74.1 in / 1883 mm 0.9 yd³ / 0.69 m³ 666 lb / 302 kg
2036 mm (80 in), Bolt-On Cutting Edge 80.2 in / 2036 mm 0.98 yd³ / 0.75 m³ 706 lb / 320 kg
2185 mm (86 in), Bolt-On Cutting Edge 86 in / 2185 mm 1.1 yd³ / 0.84 m³ 747 lb / 339 kg
2490 mm (98 in), Bolt-On Cutting Edge 98 in / 2490 mm 1.22 yd³ / 0.93 m³ 822 lb / 373 kg
1883 mm (74 in) 74.1 in / 1883 mm 0.9 yd³ / 0.69 m³ 586.4 lb / 266 kg
2036 mm (80 in) 80.2 in / 2036 mm 0.98 yd³ / 0.75 m³ 619.5 lb / 281 kg

Multi-Purpose Buckets

Powerful clamping forces for grasping large, unusually shaped objects such as trees and recycling debris.

Model Width Capacity Weight
1576 mm (62 in) w/Spill Guard, Bolt-On Cutting Edge 62 in / 1576 mm 0.39 yd³ / 0.3 m³ 851 lb / 386 kg
1576 mm (62 in) w/Spill Guard, Bolt-On Teeth 62 in / 1576 mm 0.39 yd³ / 0.3 m³ 817.9 lb / 371 kg
1730 mm (68 in) w/Spill Guard, Bolt-On Cutting Edge 68.1 in / 1730 mm 0.44 yd³ / 0.34 m³ 906 lb / 411 kg
1730 mm (68 in) w/Spill Guard, Bolt-On Teeth 68.1 in / 1730 mm 0.44 yd³ / 0.34 m³ 868.6 lb / 394 kg
1883 mm (74 in) w/Spill Guard, Bolt-On Cutting Edge 74.1 in / 1883 mm 0.48 yd³ / 0.37 m³ 961 lb / 436 kg
1883 mm (74 in) w/Spill Guard, Bolt-On Teeth 74.1 in / 1883 mm 0.48 yd³ / 0.37 m³ 917.1 lb / 416 kg
2036 mm (80 in) w/Spill Guard, Bolt-On Cutting Edge 80.2 in / 2036 mm 0.52 yd³ / 0.4 m³ 1016 lb / 461 kg
2036 mm (80 in) w/Spill Guard, Bolt-On Teeth 80.2 in / 2036 mm 0.52 yd³ / 0.4 m³ 970 lb / 440 kg
2188 mm (86 in) w/Spill Guard, Bolt-On Cutting Edge 86.1 in / 2188 mm 0.56 yd³ / 0.43 m³ 1071 lb / 486 kg
2188 mm (86 in) w/Spill Guard, Bolt-On Teeth 86.1 in / 2188 mm 0.56 yd³ / 0.43 m³ 1018.5 lb / 462 kg

Industrial Performance Buckets

Used to load, carry and dump in a variety of applications.

Model Width Capacity Weight
1730 mm (68 in), Bolt-On Teeth 68.1 in / 1730 mm 0.68 yd³ / 0.52 m³ 663.6 lb / 301 kg
2036 mm (80 in), Bolt-On Cutting Edge 80.2 in / 2036 mm 0.81 yd³ / 0.62 m³ 778.2 lb / 353 kg
2340 mm (92 in), Bolt-On Teeth 92.1 in / 2340 mm 0.94 yd³ / 0.72 m³ 795.9 lb / 361 kg

Mulchers

High-performance cutting and mulching of vegetation and overgrowth.

Model Overall Width Working Width Length
HM115 69.2 in / 1758 mm 58.3 in / 1480 mm 48 in / 1219 mm
HM316 74.1 in / 1882 mm 62.3 in / 1582 mm 53.3 in / 1355 mm

Dozer Blades

Designed for rough and finish grading in dirt, gravel, and light dozing.

Model Blade Width Width - Fully Angled Maximum Blade Angle - Right/Left of Center
2007 mm (79 in) 79 in / 2007 mm 68.9 in / 1750 mm 30 degrees
2337 mm (92 in), Smart 92 in / 2337 mm 80.7 in / 2049 mm 30 degrees
2337 mm (92 in) 92 in / 2337 mm 80.7 in / 2049 mm 30 degrees

Grader Blades

Cat® SMART Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.

Model Overall Width Blade Width Width - Fully Angled
GB120, Smart 78.4 in / 1992 mm 78 in / 1981 mm 68.8 in / 1747 mm
GB120 with Wings, Smart 84.6 in / 2148 mm 78 in / 1981 mm 90.2 in / 2292 mm
GB124, Smart 96.4 in / 2449 mm 96 in / 2438 mm 84.4 in / 2143 mm
GB124 with Wings, Smart 102.6 in / 2605 mm 96 in / 2438 mm 105.8 in / 2688 mm

Pallet Forks

Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model Height Width Weight
1070 mm (42 in) 36.8 in / 934 mm 45.8 in / 1164 mm 211.6 lb / 96 kg
1220 mm (48 in) 36.8 in / 934 mm 45.8 in / 1164 mm 211.6 lb / 96 kg

Industrial Grapple Rakes

Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.

Model Width Height Weight
1829 mm (72 in) 72 in / 1829 mm 33 in / 838 mm 1069.9 lb / 485.29 kg
2137 mm (84 in) 84 in / 2134 mm 33 in / 838 mm 1115.1 lb / 505.79 kg
1829 mm (72 in) Straight Tine 72 in / 1829 mm 33 in / 837 mm 1101.9 lb / 499.8 kg

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model Overall Width Sweeping Width Brush Diameter
BA118C Hydraulic 104 in / 2637 mm 83 in / 2119 mm 32 in / 815 mm
BA118C Manual 104 in / 2637 mm 83 in / 2119 mm 32 in / 815 mm

Industrial Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model Width Weight Height - Grapples Closed
1576 mm (62 in), Bolt-On Cutting Edge 62 in / 1576 mm 1062.6 lb / 482 kg 20.7 in / 525 mm
1730 mm (68 in), Bolt-On Cutting Edge 68.1 in / 1730 mm 1111.1 lb / 504 kg 20.7 in / 525 mm
1883 mm (74 in), Bolt-On Cutting Edge 74.1 in / 1883 mm 1159.6 lb / 526 kg 20.7 in / 525 mm
2036 mm (80 in), Bolt-On Cutting Edge 80.2 in / 2036 mm 1201.5 lb / 545 kg 20.7 in / 525 mm
1576 mm (62 in) 62 in / 1576 mm 996.5 lb / 452 kg 20.7 in / 525 mm
1730 mm (68 in) 68.1 in / 1730 mm 1038.4 lb / 471 kg 20.7 in / 525 mm
1883 mm (74 in) 74.1 in / 1883 mm 1080.3 lb / 490 kg 20.7 in / 525 mm
2036 mm (80 in) 80.2 in / 2036 mm 1115.5 lb / 506 kg 20.7 in / 525 mm

Material Handling Arms

Designed for lifting and placing objects and equipment around the jobsite.

Model Overall Width Maximum Load Rating Maximum Horizontal Reach
Material Handling Arm 51.8 in / 1316 mm 1999.6 lb / 907 kg 84 in / 2134 mm

Stump Grinders

Designed to remove stumps in residential, commercial and agricultural settings.

Model Required Hydraulics Cutting Wheel Diameter - With Teeth Cutting Depth - Below Ground
SG16 Standard Flow 21.5 in / 547 mm 20.5 in / 521 mm
SG36 High Flow XPS 21.5 in / 547 mm 20.5 in / 521 mm

Utility Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model Width Height - Grapples Closed Jaw Opening
1730 mm (68 in) 68.1 in / 1730 mm 29.1 in / 739 mm 35.5 in / 902 mm
1883 mm (74 in) 74.1 in / 1883 mm 29.1 in / 739 mm 35.5 in / 902 mm

Utility Grapple Forks

Cat® Utility Grapple Forks are designed to handle a wide variety of materials in a variety of operating conditions.

Model Width Height - Grapples Closed Jaw Opening
1676 mm (66 in) 66 in / 1676 mm 30.3 in / 770 mm 34.5 in / 876 mm
1829 mm (72 in) 72 in / 1829 mm 30.3 in / 770 mm 34.5 in / 876 mm

Utility Forks

Cat® Utility Forks are designed to handle a wide array of materials in a variety of operating conditions.

Model Width Height Weight
1676 mm (66 in) 66 in / 1676 mm 22.9 in / 581 mm 436.5 lb / 198 kg
1829 mm (72 in) 72 in / 1829 mm 22.9 in / 581 mm 485 lb / 220 kg

Angle Blades - Compact Products

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Model Blade Width Width - Fully Angled Maximum Blade Angle - Right/Left of Center
1829 mm (72 in) 72 in / 1829 mm 66.3 in / 1685 mm 30 degrees
2134 mm (84 in) 84 in / 2134 mm 76.7 in / 1949 mm 30 degrees

Nursery Forks

Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.

Model Overall Length Overall Width Weight
Manual Nursery Fork 98.1 in / 2491 mm 52.2 in / 1327 mm 754 lb / 342 kg
Hydraulic Nursery Fork 98.1 in / 2491 mm 52.2 in / 1327 mm 798 lb / 362 kg

Mobile Scrap & Demolition Shears

Cat® Scrap and Demolition Shears are industry leaders in steel processing. Power and performance in a reliable package, backed by the best dealer network in the world.

Model Tip Force Rotation Jaw Opening
S308 43.3 Sh Ton / 385 kN 360 Degrees 9.4 in / 240 mm

Backhoes

Used in typical backhoe applications such as digging footings, basements, and drainage ditches, utility trenching, back-filling, and maintaining slopes and embankments in construction, industrial, and landscaping settings.

Model Maximum Digging Depth Operating Weight Overall Length
BH130, Smart 117 in / 2972 mm 2325.9 lb / 1055 kg 87 in / 2210 mm

Wheel Saws

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Model Maximum Cutting Depth Wheel Width Weight
SW345, 80 mm (3 in) 17.7 in / 450 mm 3.1 in / 80 mm 2482.4 lb / 1126 kg
SW345, 130 mm (5 in) 17.7 in / 450 mm 5.1 in / 130 mm 2239.9 lb / 1016 kg
SW360, 100 mm (4 in) 23.6 in / 600 mm 3.9 in / 100 mm 2943.2 lb / 1335 kg
SW360, 130 mm (5 in) 23.6 in / 600 mm 5.1 in / 130 mm 3009.3 lb / 1365 kg
SW360, 160 mm (6 in) 23.6 in / 600 mm 6.3 in / 160 mm 2899.1 lb / 1315 kg
SW360, 200 mm (8 in) 23.6 in / 600 mm 7.9 in / 200 mm 2921.1 lb / 1325 kg
SW360, 80 mm (3 in) 23.6 in / 600 mm 3.1 in / 80 mm 3174.7 lb / 1440 kg
SW380, 250 mm (10 in) 31.5 in / 800 mm 9.8 in / 250 mm 3196.7 lb / 1450 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model Overall Width Sweeping Width Brush Diameter
BP115C 78.3 in / 1990 mm 60 in / 1524 mm 26 in / 660 mm
BP118C 90.4 in / 2295 mm 72 in / 1829 mm 26 in / 660 mm
Contact Us
x

We're here to help.

We'll do our best to get back to you as soon as possible.

This website uses cookies and other tracking technologies to enhance user experience and analyze our site performance and traffic. Further information is available in our Privacy Policy

Close & Accept
