TG-DB
- Rated Capacity
- 6 yd³ / 4.6 m³
- Weight
- 5001 lb / 2268 kg
- Upper Jaw Width
- 51 in / 1295 mm

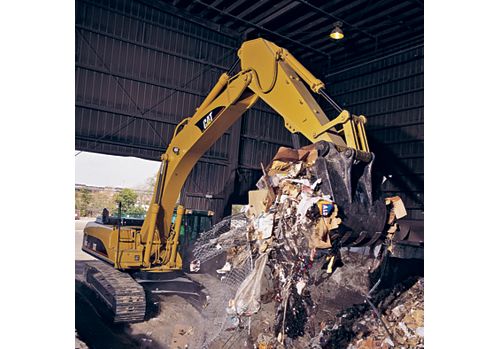

Pin on trash grapple, four tines over five, for DB linkage.
| Product Specifications | |
|---|---|
| Rated Capacity | 6 yd³ / 4.6 m³ |
| Weight | 5001 lb / 2268 kg |
| Upper Jaw Width | 51 in / 1295 mm |
| Lower Jaw Width | 66 in / 1676 mm |
| Maximum Jaw Opening | 122 in / 3086 mm |
| Outside Jaw Dimension - Closed | 44 in / 1126 mm |
| Outside Jaw Dimension - Open | 128 in / 3248 mm |
| Tip Radius | 65 in / 1658 mm |
| Jaw Depth | 16 in / 417 mm |
| Tip Thickness | 0.98 in / 25 mm |
| Wear Plate Thickness | 0.47 in / 12 mm |
| Wrapper Thickness | 0.63 in / 16 mm |
