2007 mm (79 in)

Heavy Equipment

2007 mm (79 in)

Overall Width
79 in / 2007 mm
Width - Fully Angled
69 in / 1750 mm
Blade Height
24 in / 619 mm

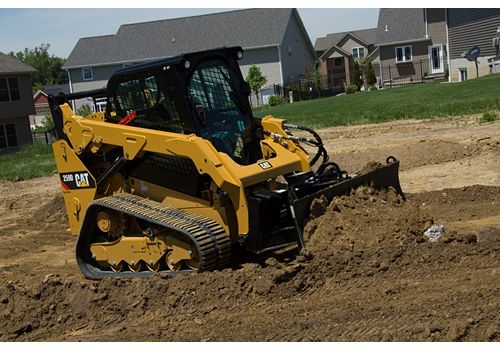

Designed for rough and finish grading in dirt, gravel, and light dozing.

Product Specifications
Overall Width 79 in / 2007 mm
Width - Fully Angled 69 in / 1750 mm
Blade Height 24 in / 619 mm
Cutting Edge Thickness 0.63 in / 16 mm
Length 40 in / 1028 mm
Maximum Blade Angle - Right/Left of Center ±30 degrees
Required Hydraulic Flow 49-125 L/min (13-33 gpm)
Tilt ±10 degrees
Weight 1082 lb / 491 kg
Optimum Hydraulic Pressure 206-310 bar (3000-4500 psi)
Required Hydraulics Standard Flow
