38.23 m³ (50.0 yd³)
- Width
- 214 in / 5436 mm
- Wing Angle
- 30 °
- Height
- 86 in / 2184 mm

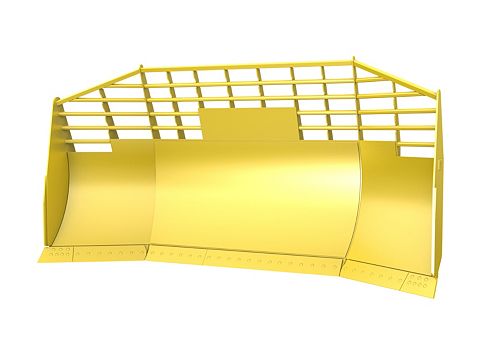

Cat Landfill U-Blades are tall and wide to roll up the maximum amount of trash. Visibility to the front is provided by the open-frame construction of the upper blade; this also keeps blade weight down. While the blade is optimized for loose material, the edge group and moldboard are strong enough to doze cover material or dig trenches when needed.
| Product Specifications | |
|---|---|
| Width | 214 in / 5436 mm |
| Wing Angle | 30 ° |
| Height | 86 in / 2184 mm |
| Weight | 9300 lb / 4218 kg |
| Capacity | 50 yd³ / 38.23 m³ |
