72.6 m³ (95.0 yd³)

Heavy Equipment

72.6 m³ (95.0 yd³)

Capacity
95 yd³ / 72.6 m³
Width
265 in / 6731 mm
Wing Angle
30 °

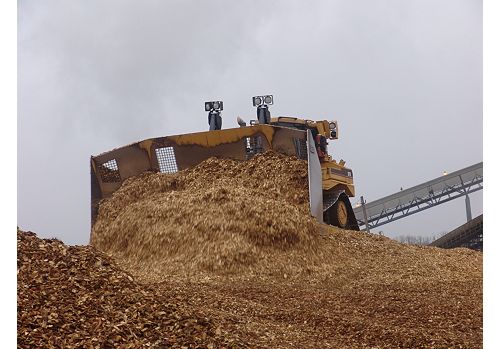

Cat Woodchips U-Blades will move more with less effort than using a standard U-blade. The sidebars on the wings are near vertical for penetration into a pile, this lets the operator cut a load loose from a larger mass of wood chips. The side wings are angled in to the center, and the moldboard is curved to push the material to the center of the blade and keep it rolling. The rolling action makes the material easier to push.

Product Specifications
Capacity 95 yd³ / 72.6 m³
Width 265 in / 6731 mm
Wing Angle 30 °
Height 132 in / 3353 mm
Weight 16600 lb / 7530 kg
