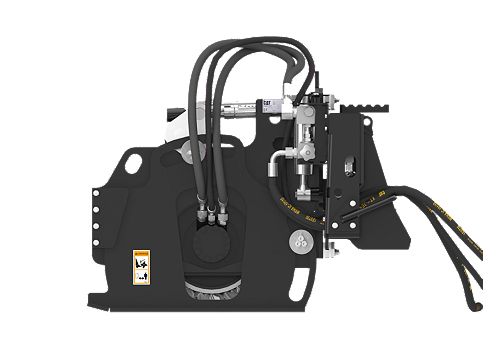

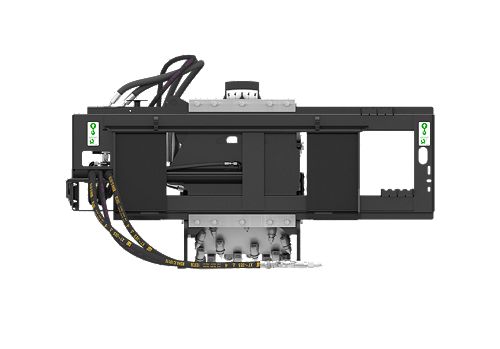

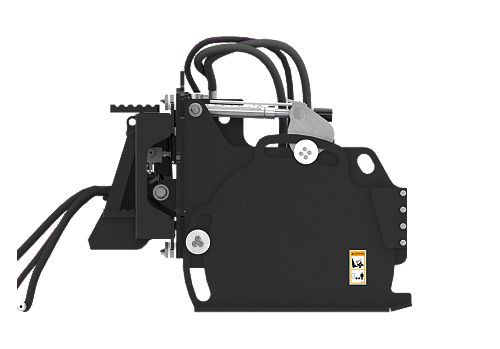

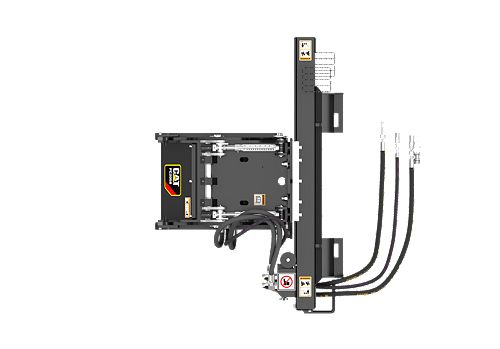

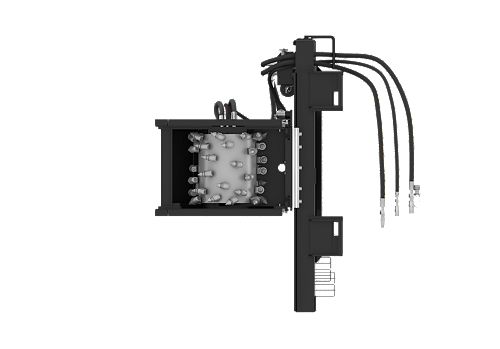

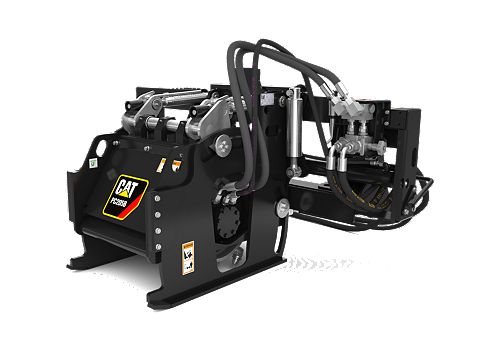

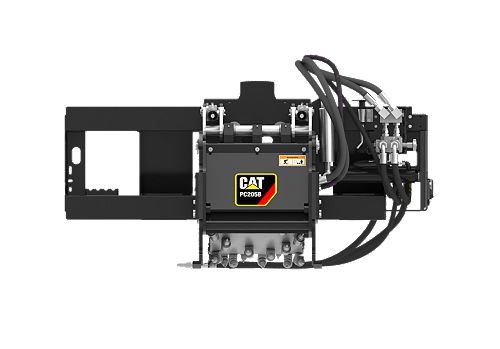

PC205B

Heavy Equipment

PC205B

Working Width
18 in / 450 mm
Maximum Cutting Depth
6 in / 150 mm
Overall Height
43 in / 1080 mm

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

alt 1
Cat® Cold Planer Brochure
Product Specifications
Maximum Cutting Depth 6 in / 150 mm
Required Hydraulics High Flow
Conical Bits 42
Drum Speed 142-250 rpm
Optimum Hydraulic Flow 80-117 L/min (21-31 gpm)
Optimum Hydraulic Pressure 160-240 bar (2320-3480 psi)
Optional Drum Widths/Depths 80/200-450/150 mm (3/8-18/6 in)
Overall Height 43 in / 1080 mm
Overall Length 47 in / 1184 mm
Overall Width 68 in / 1730 mm
Sideshift Travel 26 in / 650 mm
Tilt Angle Range +/- ±8.5 degrees
Weight 1606 lb / 730 kg
Working Width 18 in / 450 mm

Compact Wheel Loaders

Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.

Model Maximum Gross Power Operating Weight Bucket Capacities
906M 73 HP / 54.6 kW 12346 lb / 5600 kg 0.75 m3-1.2 m3 (1.0 yd3-1.6 yd3)
907M 73 HP / 54.6 kW 12677 lb / 5750 kg 0.75 m3-1.2 m3 (1.0 yd3-1.6 yd3)
908M 73 HP / 54.6 kW 14032 lb / 6365 kg 0.9 m3-1.5 m3 (1.2 yd3-2.0 yd3)

Skid Steer Loaders

Built for tough work, the Caterpillar® Skid Steer Loaders deliver Cat reliability, durability, and efficient operation.

Model Engine Model Net Flywheel Power Rated Operating Capacity
226D Cat C2.2 CRDI 65.8 HP / 49.1 kW 1550 lb / 703 kg
232D Cat C2.2 CRDI 65.8 HP / 49.1 kW 1850 lb / 839 kg
236D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW 1800 lb / 818 kg
242D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW 2150 lb / 975 kg
246D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW 2150 lb / 975 kg
262D Cat C3.3B DIT (Turbo) 72.9 HP / 54.4 kW 2700 lb / 1225 kg
272D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW 3400 lb / 1542 kg
272D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW 3650 lb / 1656 kg

Compact Track Loaders

Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.

Model Engine Model Net Power
239D Cat C2.2 CRDI 65.8 HP / 49.1 kW
249D Cat C2.2 CRDI 65.8 HP / 49.1 kW
259D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW
279D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
299D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW
299D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW
289D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW

Multi Terrain Loaders

Extremely low ground pressures let Cat® Multi Terrain Loaders work where other compact track loaders can't.

Model Engine Model Net Power
257D Cat C3.3B DIT (turbo) 73.2 HP / 54.6 kW
277D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
287D Cat C3.3B DIT (turbo) 72.9 HP / 54.4 kW
297D2 Cat C3.8 DIT (turbo) 95 HP / 71 kW
297D2 XHP Cat C3.8 DIT (turbo) 106 HP / 79 kW
