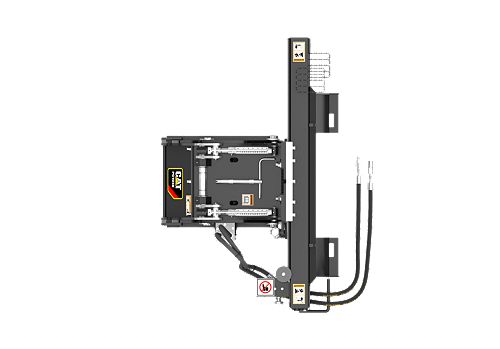

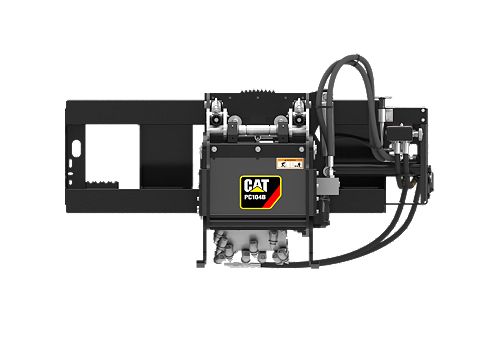

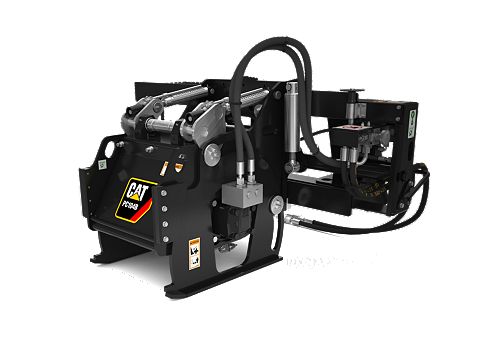

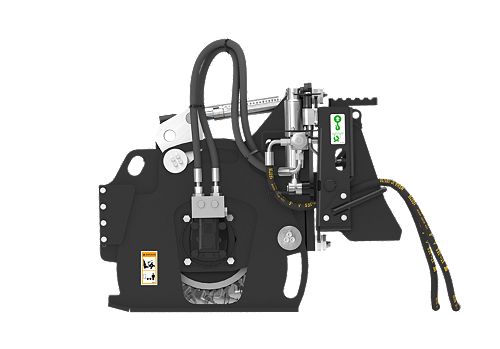

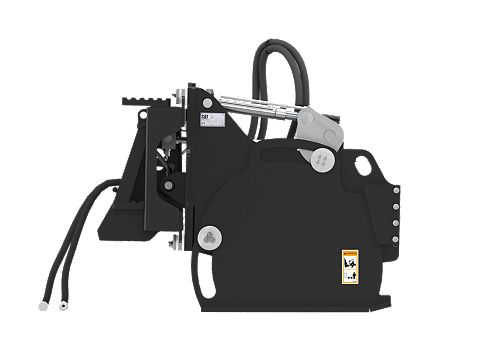

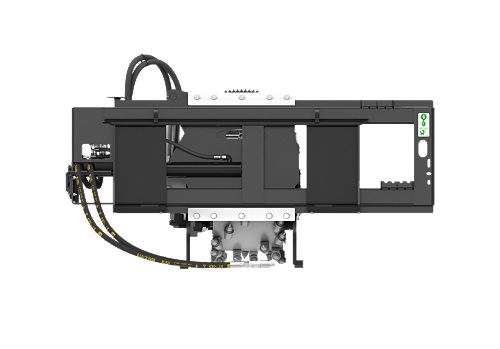

PC104B
- Working Width
- 13.8 in / 350 mm
- Maximum Cutting Depth
- 5.9 in / 150 mm
- Overall Width
- 68.1 in / 1730 mm
High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.
High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.
| Product Specifications | |
|---|---|
| Working Width | 13.8 in / 350 mm |
| Maximum Cutting Depth | 5.9 in / 150 mm |
| Required Hydraulics | Standard Flow |
| Overall Width | 68.1 in / 1730 mm |
| Overall Length | 44.1 in / 1120 mm |
| Overall Height | 37.4 in / 950 mm |
| Weight | 1477.1 lb / 670 kg |
| Optimal Hydraulic Flow | 60-80 L/min (16-21 gpm) |
| Optimal Hydraulic Pressure | 160-240 bar (2320-3480 psi) |
| Drum Speed | 150-200 rpm |
| Optional Drum Widths/Depths | 400/150 mm (16/6 in) |
| Tilt Angle Range +/- | 8.5 degrees |
| Side Shift Travel | 25.6 in / 650 mm |
| Conical Bits | 42 |
| Standard Bit Type | All Purpose |
