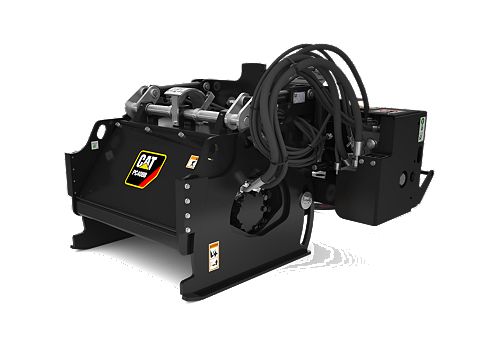

PC408B
- Working Width
- 29.5 in / 750 mm
- Maximum Cutting Depth
- 6.7 in / 170 mm
- Overall Width
- 73.1 in / 1858 mm
High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.
| Product Specifications | |
|---|---|
| Working Width | 29.5 in / 750 mm |
| Maximum Cutting Depth | 6.7 in / 170 mm |
| Required Hydraulics | High Flow XHP |
| Overall Width | 73.1 in / 1858 mm |
| Overall Length | 50 in / 1270 mm |
| Overall Height | 43.3 in / 1100 mm |
| Weight | 2314.9 lb / 1050 kg |
| Optimal Hydraulic Flow | 136-150 L/min (36-40 gpm) |
| Optimal Hydraulic Pressure | 250-280 bar (3630-4000 psi) |
| Drum Speed | 143 rpm |
| Optional Drum Widths/Depths | 80/200-610/178 mm (3/8-24/7 in) |
| Tilt Angle Range +/- | 6.5 degrees |
| Side Shift Travel | 25.6 in / 650 mm |
| Conical Bits | 60 |
| Standard Bit Type | All Purpose |
