CS56B

Operating Weight - With Cab
25346 lb / 11500 kg
Compaction Width
84 in / 2134 mm
Gross Power
157 HP / 117 kW

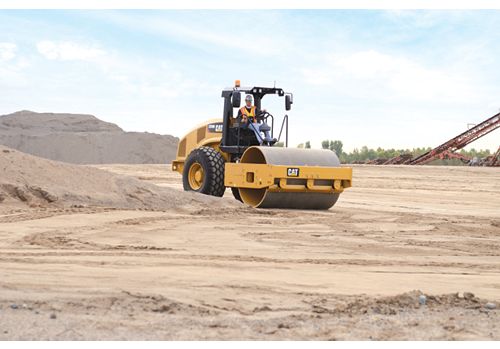

The CS56B provides exceptional performance for granular soil compaction applications.

Loan Calculator Credit Application
Build & Quote
alt 1
Key Features Machine Drive Power (MDP) Brochure Command for Compaction Compaction Control Technologies Paving Product Line Brochure Paving Application Guides and eBooks Vibratory Soil Compactor Selection Guide
Weights
Operating Weight - With Cab 25346 lb / 11500 kg
Weight - Drum with ROPS/FOPS 13788 lb / 6255 kg
Weight - Drum with Cab 13990 lb / 6350 kg
Operating Specifications
Compaction Width 84 in / 2134 mm
Turning Radius - Inside Drum Edge 12.08 ft / 3.68 m
Ground Clearance 17.4 in / 442 mm
Static Linear Load - With Cab 166.5 lb/in / 29.8 kg/cm
Static Linear Load - With ROPS/FOPS 164.1 lb/in / 29.3 kg/cm
Travel Speed - Maximum 7 mile/h / 11.4 km/h
Engine
Gross Power 157 HP / 117 kW
Engine Model Cat C4.4
Stroke 5 in / 127 mm
Bore 4.1 in / 105 mm
Dimensions
Drum Diameter 60.4 in / 1534 mm
Optional Blade Height 27.1 in / 688 mm
Drum Width 84 in / 2134 mm
Overall Width 7.58 ft / 2.3 m
Wheel Base 9.58 ft / 2.9 m
Overall Width - With Blade Option 8.25 ft / 2.5 m
Overall Length 19.25 ft / 5.86 m
Overall Length - With Blade Option 21 ft / 6.4 m
Height - With ROPS/FOPS or Cab 10.25 ft / 3.11 m
Vibratory System
Centrifugal Force - Minimum 31670 lb / 141 kN
Nominal Amplitude - Low 0.039 in / 0.98 mm
Centrifugal Force - Maximum 67600 lb / 301 kN
Variable Frequency Option Range 23.3 - 30.5 Hz (1400-1830 vpm)
Vibratory Frequency - Standard 30.5 Hz (1830 vpm)
Nominal Amplitude - High 0.083 in / 2.1 mm
Tires
Tires 23.1 x 26
Service Refill Capacities
Fuel Tank Capacity 64 gal (US) / 242 l

Standard Equipment

  • OPERATOR ENVIRONMENT
    • ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
    • Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
    • Adjustable Tilting Steering Column with Integrated Cup Holders
    • Rear Vision Camera System
    • Seat Belt
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • VIBRATORY SYSTEM
    • Smooth Drum
    • Dual Amplitude, Single Frequency
    • Pod-Style Eccentric Weight Housings
    • Auto-vibe Function
    • Front Adjustable Steel Scraper
    • Universal Bumper
  • POWER TRAIN
    • Cat C4.4B Engine
    • Air Cleaner, Dual Element
    • Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
    • Dual Propel Pumps; One for Drum Drive, One for Rear Axle
    • Fuel Filter, Water Separator, Priming Pump, Water Indicator
    • Tilting Radiator/Hydraulic Oil Cooler
    • Dual Braking System
    • Two-speed Hydrostatic Transmission
  • ELECTRICAL
    • 24 volt Electrical System
    • 100 ampere Alternator
    • 750 Cold-cranking Amps Battery Capacity
  • OTHER
    • Product Link™
    • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
    • S•O•S? Sampling Valves: Engine Oil, Hydraulic Oil and Coolant

Optional Equipment

  • OPERATOR ENVIRONMENT
    • ROPS/FOPS Cab with Climate Control
    • Sun Visor
  • VIBRATORY SYSTEM
    • Padfoot Shell Kit (oval or square pads available)

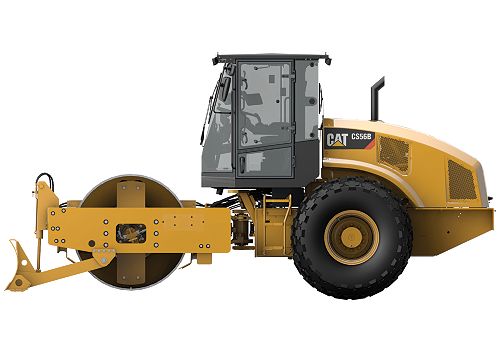

    • Leveling Blade
    • Variable Frequency
    • Dual Adjustable Steel Scrapers
    • Scraper Shell Kit Ready
    • Recording Module for Vibration Frequency
  • POWER TRAIN
    • Transmission Guard
    • Bio-oil Factory Fill
  • TECHNOLOGY SOLUTIONS
    • Measure - Compaction Meter Value (CMV)
    • Map - SBAS GNSS Mapping
    • Connect - Cloud and Machine Connectivity
    • Cat® Command for Compaction
  • OTHER
    • Upgraded Halogen Light Package
    • Amber Rotating Beacon

Command

Combining the Fleet, Terrain, Detect and Health capabilities of Cat® MineStar™ System, Command enables you to implement remote control, semi-autonomous or fully autonomous mining equipment systems - offering unprecedented improvements in operator safety, equipment availability and site productivity.

Model
Cat Command Remote Control for Construction

Compact

Cat® Compact technologies combine advanced compaction measurement, in-cab guidance and reporting capabilities to help you consistently meet compaction targets faster, more uniformly, and in fewer passes—saving on fuel and reducing rework and material costs in both soil and asphalt applications.

Model
Cat Compact with Compaction Meter Value (CMV)
Cat Compact with Machine Drive Power (MDP)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
Cat Inspect
Cat Product Link
