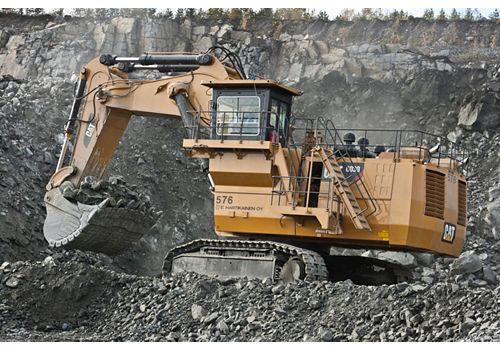

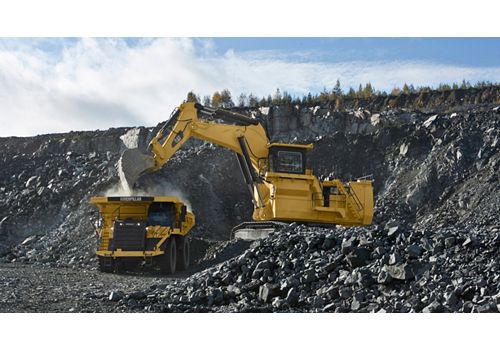

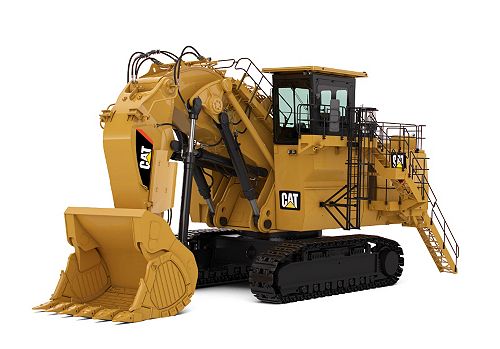

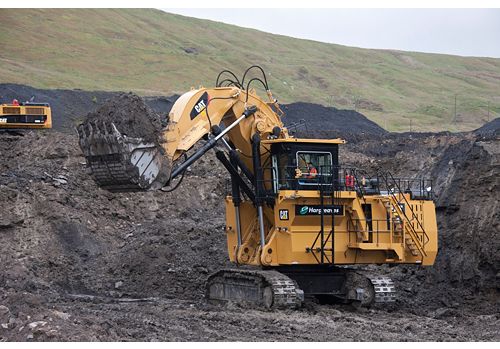

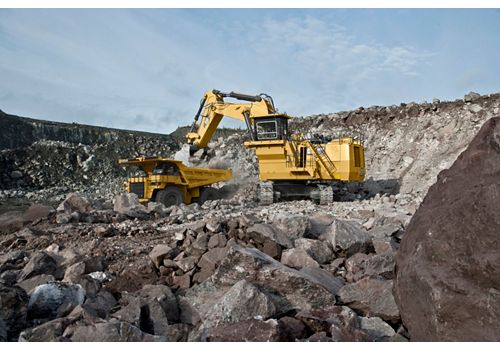

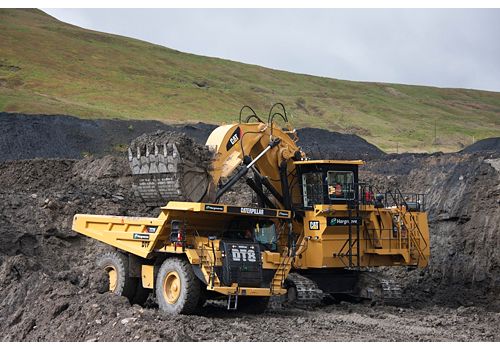

6030 AC FS

Engine Output - SAE J1995
1530 HP / 1140 kW
Bucket Payload
32.7 ton (US) / 29.7 t
Operating Weight
324.4 ton (US) / 294.3 t

We understand the challenges you face, the importance of reliability, and the relationship between uptime and productivity. That's why we continually strive to produce the safest, most reliable and productive hydraulic shovels possible. Offering the widest payload range of any manufacturer in the industry, the ability to optimally pair with our popular line of mining trucks, and the support of our world-class Cat dealer network, we are uniquely positioned to partner with you to help achieve your productivity targets. We understand what matters to you. Our hydraulic shovels are built with you in mind. Because in mining, every day matters and every load counts.

Loan Calculator Credit Application
Build & Quote
alt 1
6030/6030 FS Hydraulic Mining Shovel - Large Specalog 6030/6030 FS Hydraulic Mining Shovel - Medium Specalog 6030/6030 FS Hydraulic Mining Shovel - Small Specalog
General
Engine Output - SAE J1995 1530 HP / 1140 kW
Bucket Payload 32.7 ton (US) / 29.7 t
Operating Weight 324.4 ton (US) / 294.3 t
Note Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.
Hydraulic System with Pump Managing System
Maximum Pressure - Swing Pumps 5080 psi / 350 bar
Hydraulic Tank Capacity - Approximately 660 gal (US) / 2500 l
Swing Pumps - Maximum Oil Flow - AC Version 2 × 426 L/min (2 × 113 gal/min)
Swing Pumps 2 × reversible swash plate double pumps
Total Volume of Hydraulic Oil - Approximately 925 gal (US) / 3500 l
Maximum Pressure - Travel 5220 psi / 360 bar
Main Pumps - Maximum Oil Flow - Diesel Version 4 × 552 L/min (4 × 146 gal/min)
Maximum Pressure - Attachment 4495 psi / 310 bar
Swing Pumps - Maximum Oil Flow - Diesel Version 2 × 394 L/min (2 × 104 gal/min)
Main Pumps 4 × variable swash plate pumps
Main Pumps - Maximum Oil Flow - AC Version 4 × 543 L/min (4 × 143 gal/min)
Hydraulic Oil Cooling
Diameter - Fan 2 × 1220 mm (2 × 48 in)
Oil Flow of Cooling Pumps - Diesel Version 2 × 467 L/min (2 × 123 gal/min)
Oil Flow of Cooling Pumps - AC Version 2 × 459 L/min (2 × 121 gal/min)
Operator's Cab
Components (3) Robust instrument panel including large colored BCS screen with transflective technology
Components (11) All-round safety glass, armored windshield and sliding side window
Components (8) Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests
Components (6) Sliding emergency ladder (kick-down type) with ladder cage
Components (4) Board Control System (BCS) electronic monitoring and data logging system for vital signs and service data of engines, hydraulic system and lubrication system
Components (2) External sun shields at side and rear windows
Components (7) Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
Components (13) Joystick controls integrated in independently adjustable seat consoles
Internal Dimensions of Cab - Width 5.25 ft / 1600 mm
Components (14) Fold-away auxiliary seat with safety belt
Internal Dimensions of Cab - Length 7.22 ft / 2200 mm
Components (1) Under roof mounted heating ventilating and air conditioning system
Components (10) Windshield with parallel intermittent wiper/washer
Components (5) Machine access via retractable access stairway, stairway angle approximately 45°, hydraulically operated
Internal Dimensions of Cab - Height 7.05 ft / 2150 mm
Operator's Eye Level - Approximately 21.33 ft / 6.5 m
Components (9) Roller blinds at all windows
Components (12) FOPS (rock guard; approved according to DIN ISO 3449) integrated into cab structure
Swing System
Maximum Swing Speed - AC Version 5 r/min
Swing Ring Triple-race roller bearing with sealed internal gearing
Maximum Swing Speed - Diesel Version 4.6 r/min
Parking Brakes Wet multiple-disc brake, spring-loaded/hydraulically released
Swing Drive 2 compact planetary transmissions with axial piston motors
Undercarriage
Gradeability - Travel Drives - Approximate 64 %
Components (5) Acoustic travel alarm
Track Pads - Each Side 47
Components (3) Fully hydraulic self-adjusting track tensioning system with membrane accumulator
Components (4) Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Bottom Rollers - Each Side 7
Maximum Tractive Force 367880 lb / 1637 kN
Parking Brakes Wet multiple disc brake, spring loaded/hydraulically released
Travel Speed - 2nd Stage - Maximum 1.68 mile/h / 2.7 km/h
Support Rollers - Each Side 2 plus a skid plate in between
Travel Speed - 1st Stage - Maximum 0.87 mile/h / 1.4 km/h
Components (2) Cast double-grouser combined pad-links with bushings connected by hardened full floating pins
Travel Drives - Each Side 1 planetary transmission with 2 two-stage axial piston motors
Components (1) All running surfaces of sprockets, idlers, rollers and pad links, as well as teeth contact areas of sprocket and pad links, are hardened
Automatic Lubrication System
Capacity - Grease Container 120 gal (US) / 450 l
Type (3) Lubricated pinion for greasing of internal gearing of swing ring
Type (5) Grease filters (200 µm) between service station and container as well as directly behind grease pump
Type (4) System failures displayed by Board Control System
Type (1) Dual-circuit system with hydraulically driven heavy-duty pump and electronic time relay control to adjust the pause/lube times
Type (2) Connected to the lubrication system are the swing roller bearing with internal gearing and all pivot points of attachment, bucket and cylinders
Operating Weights
6030 - Ground Pressure 32 psi / 22.1 N/cm²
6030 FS - Standard Track Pads 3.25 ft / 1000 mm
6030 - Operating Weight 653660 lb / 296500 kg
6030 FS - Ground Pressure 31.7 psi / 21.9 N/cm²
6030 - Standard Track Pads 3.25 ft / 1000 mm
6030 FS - Operating Weight 648810 lb / 294300 kg
Note Other track pads available on request
Electrical System - Diesel Drive
System Voltage 24V
Components (1) Battery isolation relays
Batteries in Series/Parallel Installation 4 × 210 Ah – 12V each; 420 Ah – 24V in total
Components (5) 14 LED service lights
Components (2) Emergency stop switches accessible from ground level and in engine module
Components (4) 2 LED high-brightness access flood lights
Components (3) 12 LED high-brightness working flood lights – 8 for working area – 2 for rear end
Retractable Service Station
Installation Retractable service station installed underneath the engine module and easily accessible from ground.
Attachments
All buckets (FS and BH) are equipped with a wear package consisting of: (2) – Wing shrouds on side walls – Heel shrouds at bottom edges
All buckets (FS and BH) are equipped with a wear package consisting of: (1) – Special liner material covering main wear areas inside and outside of bucket – Lip shrouds between teeth
Type (1) Catwalks with rails at booms
Type (6) Booms and sticks are torsion-resistant, welded box design of high-tensile steel with solid steel castings at pivot areas
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3) – Constant boom momentum throughout the whole lift arc – Crowd force assistance
Type (4) Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (3) Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (5) Booms and sticks are stress-relieved after welding
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1) – Automatic roll-back limiter to prevent material spillage – Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2) – Horizontal automatic constant-angle bucket guidance – Vertical automatic constant-angle bucket guidance
Type (2) Special wear packages for highly abrasive materials on request
Diesel Engines
Fuel Tank Capacity 1339 gal (US) / 5070 l
Bore 5.42 in / 137.7 mm
Stroke 6 in / 152.4 mm
Maximum Altitude - Without Deration - At 25° C (77° F) Above Sea Level 1640 ft / 500 m
Alternators 2 × 150A
Total Rated Net Power - ISO 3046/1 1140 kW 1,800 min-1 (1,530 hp 1,800 min-1)
Emissions Meets U.S. EPA Tier 2 equivalent emission standards
Displacement 1648 in³ / 27 l
Make/Model 2 × Cat C27 ACERT
Total Rated Net Power - SAE J1349 1140 kW 1,800 min-1 (1,530 hp 1,800 min-1)
Number of Cylinders - Each Engine 12
Aspiration Turbocharged and charge air-cooled
Total Rated Gross Power - SAE J1995 1140 kW 1,800 min-1 (1,530 hp 1,800 min-1)
Components (5) Additional high-capacity water separator
Components (3) Heavy-duty air filters
Components (4) Two-stage fuel filter, including water separator
Components (2) Micro processed engine management
Components (1) Hydraulically driven radiator fan with electronically controlled fan speed
Engine
Engine Model 2 × Cat® C27 ACERT™
Gross Power - SAE J1995 1530 HP / 1140 kW
Note Electric drive option available (1000 kW) on 6030 AC/6030 AC FS
Net Power - SAE J1349 1530 HP / 1140 kW
Bucket
Bucket Capacity - Backhoe (heaped 1:1) 22.2 yd³ / 17 m³
Bucket Capacity - Face Shovel (heaped 2:1) 21.6 yd³ / 16.5 m³
Operating Specifications
Operating Weight - Face Shovel 324 t / 294 t
Operating Weight - Backhoe 326 t / 296 t
Bucket Payload 34 t / 30 t
Electric Motor - 6030 AC/6030 AC FS
Revolutions 1,500 min-1 (1,800 min-1 at 60 Hz)
Starting current 450% of IN (253% of IN optional)
Rated Current IN 109A (at 6.3 kV)
Output 1000 kW
Frequency 50 Hz (60 Hz on request)
Voltage 6.3 kV ± 10% (other on request)
Type Squirrel cage induction motor

Optional Equipment

  • GENERAL
    • Export crating
    • Custom paint
  • SUPERSTRUCTURE
    • C27 ACERT engines meet U.S. EPA Tier 4 Interim equivalent emission standards
    • Oil change interval extension for engine oil up to 1,000 hours
    • Hydraulic service crane on superstructure with auxiliary engine
    • Round container for a standard 200 L (53 gal) grease barrel (instead of 450 L (119 gal) grease container)
    • Cold-weather package
  • CAB
    • Cab heating
    • Dual (redundancy) HVAC system
    • Camera monitoring system
    • Windshield guard (FOGS)
  • UNDERCARRIAGE
    • Track pad width 800 mm (2 ft 7 in) or 1200 mm (3 ft 11 in)
    • Cover plate under carbody (belly plate)
