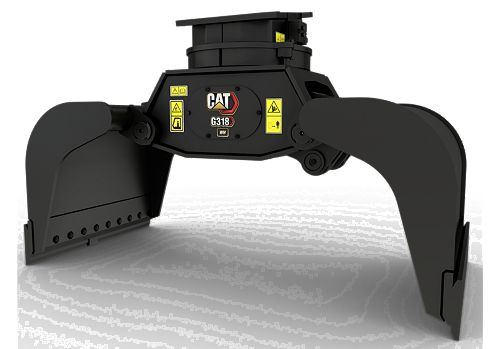

G318 WH Demolition & Sorting Grapple: 587-8970

Grapple Area
1.05 yd³ / 800 l
Weight
3190 lb / 1447 kg
Overall Width (Jaws Open)
86.61 in / 2200 mm

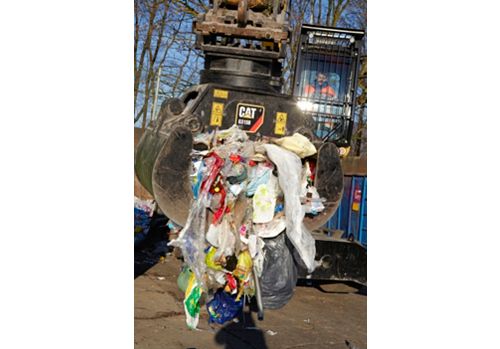

Cat® Demolition & Sorting Grapples are designed for fast, productive material handling. Capable of high-volume, production loading and precise sorting, to enhance the productivity and efficiency of your operation. The grapples can handle anything from primary and secondary demolition to recycling to get the job done.

Loan Calculator Credit Application
Build & Quote
alt 1
Demolition & Sorting Grapples Key Features and Benefits Demolition & Sorting Grapples for Tracked Excavators Technical Specifications Demolition & Sorting Grapples for Wheeled Excavators Technical Specifications Demolition & Sorting Grapples for Material Handlers Technical Specifications Demolition & Sorting Grapple Product Brochure
Product Specifications
Grapple Area 1.05 yd³ / 800 l
Weight 3190 lb / 1447 kg
Machine Class 20-25 Ton Excavators
Overall Width (Jaws Open) 86.61 in / 2200 mm
Overall Width (Jaws Closed) 55.43 in / 1408 mm
Overall Height (Jaws Open) 54.57 in / 1386 mm
Overall Height (Jaws Closed) 61.02 in / 1550 mm
Shell Type Options Closed

Long Reach Excavation

Cat® long reach excavators are built for specialized jobs that require extended reach and stability, including dredging waterways, finishing slopes, deep trenching, port maintenance, coastal protection, mining reclamation and wetland restoration. Available worldwide, they combine fuel efficiency, durable components and advanced hydraulics for precise, productive performance in demanding environments.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
340 Long Reach 346 hp / 258.3 kW 96500 lb / 43800 kg 42.8 ft / 13050 mm

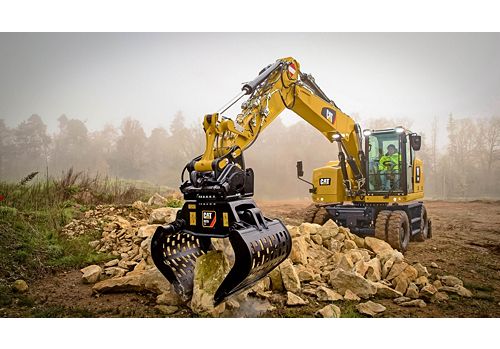

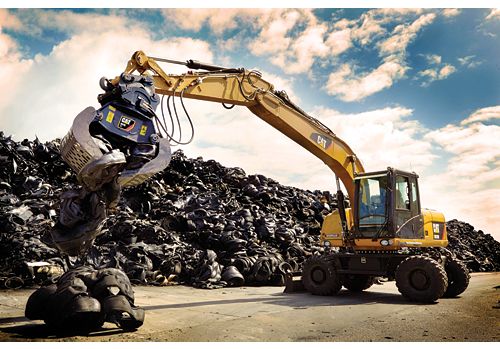

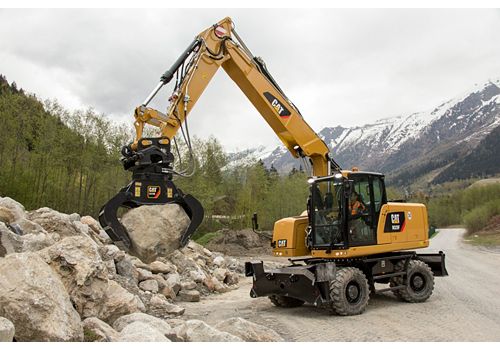

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model Engine Power - ISO 14396 Operating Weight Maximum Maximum Travel Speed
M318 174 hp / 129 kW 43980 lb / 19950 kg 21.7 mile/h / 35 km/h
M320 174 hp / 129 kW 46740 lb / 21200 kg 21.7 mile/h / 35 km/h
M322 174 hp / 129 kW 54770 lb / 24845 kg 18.6 mile/h / 30 km/h

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
320 172 hp / 128.5 kW 49800 lb / 22600 kg 22 ft / 6720 mm
323 172 hp / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
335 273 hp / 203.7 kW 77000 lb / 34900 kg 22.9 ft / 6990 mm
