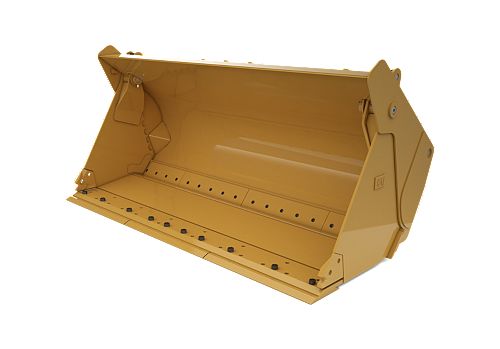

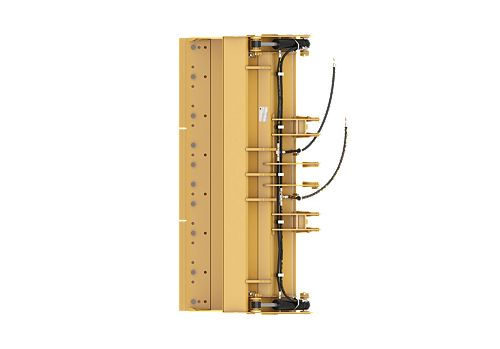

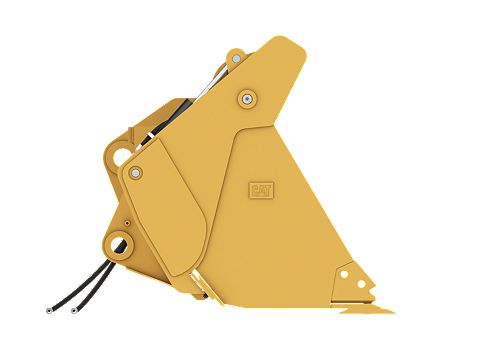

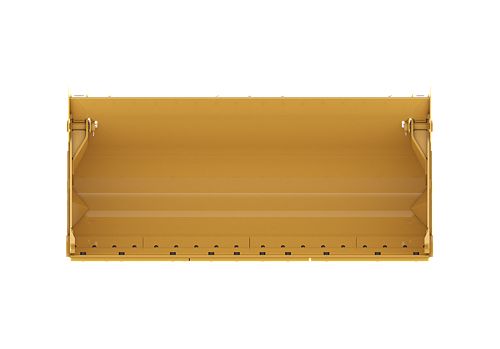

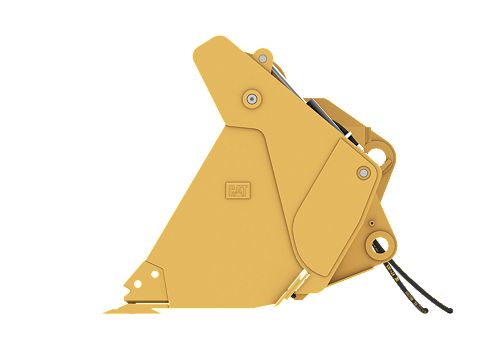

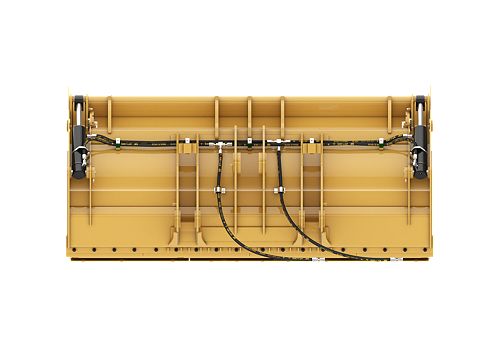

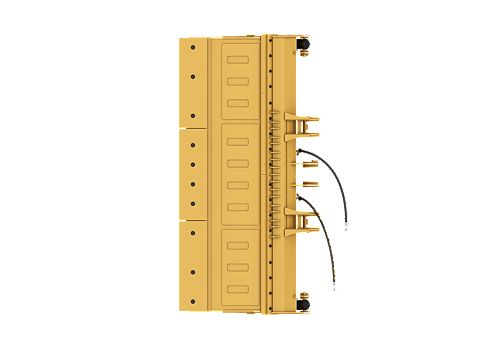

2.7 m3 (3.5 yd3) Pin On, Bolt-On Cutting Edge
- Width
- 108.3 in / 2750 mm
- Height
- 52.6 in / 1337 mm
- Weight
- 3498.7 lb / 1587 kg
Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.
| Product Specifications | |
|---|---|
| Width | 108.3 in / 2750 mm |
| Height | 52.6 in / 1337 mm |
| Weight | 3498.7 lb / 1587 kg |
| Length | 55.7 in / 1415 mm |
| Interface Type | Pin On |
| Capacity | 3.5 ft³ / 2.7 l |
| Base Edge Thickness | 1 in / 25 mm |
| Cutting Edge Thickness | 1 in / 25 mm |
| Jaw Opening | 44.6 in / 1134 mm |
| Clam Angle | 71 degrees |
| Required Hydraulics | 3rd Function |
Small Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 926M | 168 hp / 125 kW | 28193 lb / 12789 kg | 1.9-5.0 m3 (2.5-6.5 yd3) |
| 926M Aggregate Handler | 168 hp / 125 kW | 28577 lb / 12963 kg | 2.5-5.0 m3 (3.3-6.5 yd3) |
| 930M | 168 hp / 125 kW | 31382 lb / 14235 kg | 2.1-5.0 m3 (2.7-6.5 yd3) |
| 930M Ag Handler | 168 hp / 125 kW | 31382 lb / 14235 kg | 2.1-5.0 m³ (2.7-6.5 yd³) |
| 930M Aggregate Handler | 168 hp / 125 kW | 31848 lb / 14446 kg | 2.5-5.0 m3 (3.3-6.5 yd3) |
| 930M Waste Handler | 168 hp / 125 kW | 37713 lb / 17107 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
| 938M | 188 hp / 140 kW | 35778 lb / 16229 kg | 2.5-5.0 m3 (3.2-6.5 yd3) |
| 938M Aggregate Handler | 188 hp / 140 kW | 36839 lb / 16710 kg | 2.9-5.0 m3 (3.8-6.5 yd3) |
| 938M Waste Handler | 188 hp / 140 kW | 41794 lb / 18958 kg | 3.0-5.0 m3 (3.9-6.5 yd3) |
