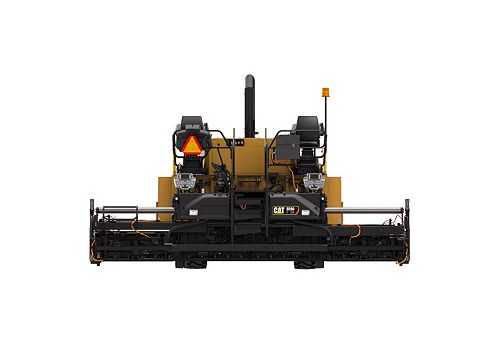

SE60 V XW Vibratory Screed
- Standard Weight
- 8973 lb / 4070 kg
- Maximum Paving Width
- 33 ft / 10 m
- Transport Width - Endgates Folded
- 9.85 ft / 3000 mm
The SE60 V XW delivers extremely tight mat textures with high densities. It utilizes rear-mounted extenders, vibratory screed plates and has a paving range of 3.0 m to 10.0 m (9' 10" - 33'). It excels on interstates, highways, airport runways and other wide-width applications.
| Dimensions | |
|---|---|
| Transport Width - Endgates Folded | 9.85 ft / 3000 mm |
| Screed Plate Width - Front to Back | 16 in / 407 mm |
| Length - Front to Back, Endgates Removed | 76 in / 1940 mm |
| Transport Length - Tractor and Screed | 22.6 ft / 6910 mm |
| Length - Front to Back, Endgates Attached | 98 in / 2499 mm |
| Weights | |
|---|---|
| Standard Weight | 8973 lb / 4070 kg |
| Operating Specifications | |
|---|---|
| Standard Paving Range | 3.0 to 6.0 m (9' 10"- 19' 6") |
| Maximum Paving Width | 33 ft / 10 m |
| Extender Height Range | -20 mm to +50 mm |
| Crown Range | -4% to +10% |
| Vibratory Speed Range | 0 - 3000 rpm |
| Maximum Paving Depth | 12 in / 305 mm |
| Extender Slope Range | -3% to +10% |
| Heating Time - Standard Width | 15 minutes |
| Heating Time - Maximum Width | 25 minutes |
Screeds
| Model | Paving Range with SE50 V | Paving Range with SE60 V | Paving Range with SE60 V XW |
|---|---|---|---|
| Cat® SDX Screed Plate System | 2.55 m - 6.50 m (8' 4" – 21' 4") | 3 m to 7.45 m (9' 10" - 24' 5") | 3 m to 7.95 m (9' 10" - 29' 4") |
