Cat® SDX Screed Plate System

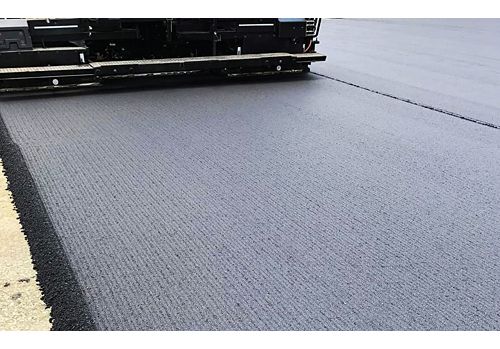

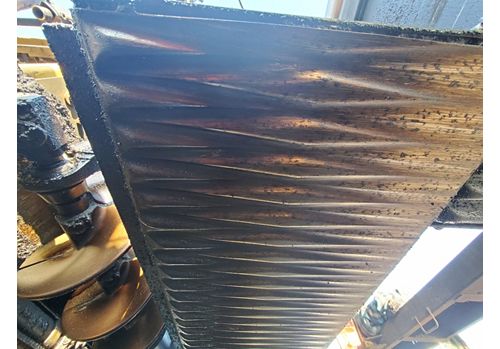

Cat® SDX Screed Plate Technology is designed to provide flexibility for highways, interstates, and commercial paving applications. The textured plates are designed to increase density and smoothness, while the smooth plates perform like traditional flat screed plate designs with the added benefit of modular, quick-change capability.
| Dimensions | |
|---|---|
| Paving Range with SE50 V | 2.55 m - 6.50 m (8' 4" – 21' 4") |
| Paving Range with SE60 V | 3 m to 7.45 m (9' 10" - 24' 5") |
| Paving Range with SE60 V XW | 3 m to 7.95 m (9' 10" - 29' 4") |
| Operating Specifications | |
|---|---|
| Heating System | Electric |
Track Asphalt Pavers
| Model | Maximum Throughput Capacity |
|---|---|
| AP655 | 1433 ton(US)/h / 1300 tonnes/hr |
| AP1055 | 1602 ton(US)/h / 1766 tonnes/hr |
Wheel Asphalt Pavers
| Model | Maximum Throughput Capacity |
|---|---|
| AP600 | 1433 ton(US)/h / 1300 tonnes/hr |
| AP1000 | 1766 ton(US)/h / 1602 tonnes/hr |
Screeds
| Model | Standard Weight | Standard Paving Range | Maximum Paving Width |
|---|---|---|---|
| SE50 V Vibratory Screed | 7239 lb / 3284 kg | 2.55 - 5.0 m (8' 4" - 16' 4") | 21.3 ft / 6.5 m |
| SE60 V Asphalt Screed | 7826 lb / 3550 kg | 3.0 - 6.0 m (9' 10" - 19' 6"') | 24.5 ft / 7.45 m |
| SE60 V XW Vibratory Screed | 8973 lb / 4070 kg | 3.0 to 6.0 m (9' 10"- 19' 6") | 33 ft / 10 m |
